Texas Instruments DCP010505BP-U/700

Part No.:: DCP010505BP-U/700

Manufacturer:: Texas Instruments

Package:: 14-SMD Module, 7 Leads

Datasheet:: DCP010505BP-U/700.pdf

Description:: DC DC CONVERTER 5V 1W

In Stock:: 3366

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DCP010505BP-U/700 Specifications

Package/Case:
14-SMD Module, 7 Leads
Packaging:
Tape & Reel (TR)
Series:
DCP01B (1W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
5.5V
Voltage-Output1:
5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
200mA
Power(Watts):
1 W
Voltage-Isolation:
1 kV
Applications:
ITE (Commercial)
Features:
OTP, SCP
OperatingTemperature:
-40°C ~ 100°C
Efficiency:
80%
MountingType:
Surface Mount
Size/Dimension:
0.78 L x 0.33 W x 0.21 H (19.7mm x 8.3mm x 5.3mm)
ControlFeatures:
ApprovalAgency:

DCP010505BP-U/700 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DCP010505BP-U/700 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DCP010505BP-U/700 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DCP010505BP-U/700 information

Views：

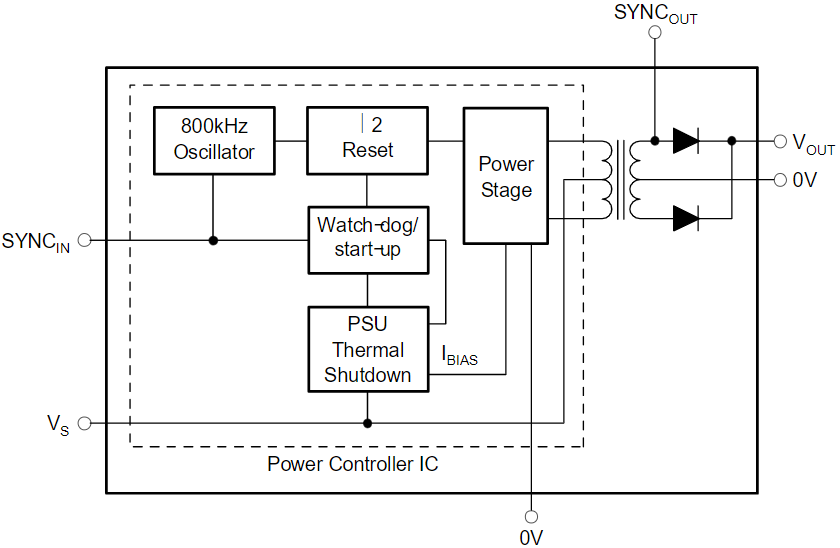

DCP010505BP-U/700 Typical application Circuitry

DCP010505BP-U 700

The DCP010505BP-U/700 is a specialized model in the DCP01 series of DC-DC converters. This series is celebrated for providing isolated, regulated power in a compact package, making them especially suitable for space-constrained applications that demand electrical isolation to minimize noise and interference. The DCP010505BP-U/700, with its unique specifications, is often utilized in industrial control systems, data acquisition, and mixed-signal environments where space efficiency and reliable power isolation are key.

1. Input Voltage Connections (Vin+, Vin-): The DCP010505BP-U/700 requires a stable 5V DC input. Your DC power source's positive terminal ought to be attached to the Vin+ pin and its negative terminal to the Vin-pin. These connections are pivotal for the proper operation of the converter.

2. Output Voltage Terminals (Vout+, Vout-): The Vout+ and Vout- pins on the DCP010505BP-U/700 provide the regulated output voltage, which is isolated from the input voltage. Connect Vout+ to the positive end of the load and Vout- to the negative or ground end. This configuration ensures a stable and isolated power supply to the load.

3. Isolation Feature: The DCP010505BP-U/700 boasts a significant isolation barrier between its input and output. This feature is essential for safeguarding sensitive circuits from electrical noise and potential damage due to voltage spikes.

4. Ease of Integration: This model stands out for not necessitating external components for basic functioning, streamlining the integration process and reducing the circuit's overall size.

5. Thermal Considerations: Even though the DCP010505BP-U/700 is designed to operate efficiently, it's crucial to provide sufficient thermal management. Ensuring good air circulation around the module will aid in maintaining an optimal temperature range during operation.

6. PCB Design Recommendations: In the PCB layout, it's advisable to keep trace lengths to and from the DCP010505BP-U/700 as short as possible. This practice minimizes electromagnetic interference and ensures stable performance. Furthermore, maintaining a clear separation between the high-voltage and low-voltage sides on the PCB is important to uphold the isolation integrity.

7. Supplementary Capacitors: While the DCP010505BP-U/700 is designed to function without external components, adding input and output capacitors can enhance its performance by stabilizing the voltage and reducing ripple, particularly in applications involving sensitive electronic components.

In conclusion, the DCP010505BP-U/700 from the DCP01 series is an optimal choice for applications that require a compact, efficient, and isolated DC-DC conversion solution. Its ability to deliver stable and isolated power in a small form factor makes it particularly useful in applications where space is limited and noise isolation is critical. Proper implementation includes meticulous attention to the input and output connections, thermal management considerations, and strategic PCB layout, all of which are vital for leveraging the full capabilities of the DCP010505BP-U/700 in any sophisticated electronic system.
