Texas Instruments DCP010505BP

Part No.:: DCP010505BP

Manufacturer:: Texas Instruments

Package:: 14-DIP (0.300, 7.62mm), 7 Leads

Datasheet:: DCP010505BP.pdf

Description:: DC DC CONVERTER 5V 1W

In Stock:: 3647

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DCP010505BP Specifications

Package/Case:
14-DIP (0.300, 7.62mm), 7 Leads
Packaging:
Tube
Series:
DCP01B (1W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
5.5V
Voltage-Output1:
5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
200mA
Power(Watts):
1 W
Voltage-Isolation:
1 kV
Applications:
ITE (Commercial)
Features:
OTP, SCP
OperatingTemperature:
-40°C ~ 100°C
Efficiency:
80%
MountingType:
Through Hole
Size/Dimension:
0.78 L x 0.33 W x 0.21 H (19.7mm x 8.3mm x 5.3mm)
ControlFeatures:
ApprovalAgency:

DCP010505BP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DCP010505BP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DCP010505BP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DCP010505BP information

Views：

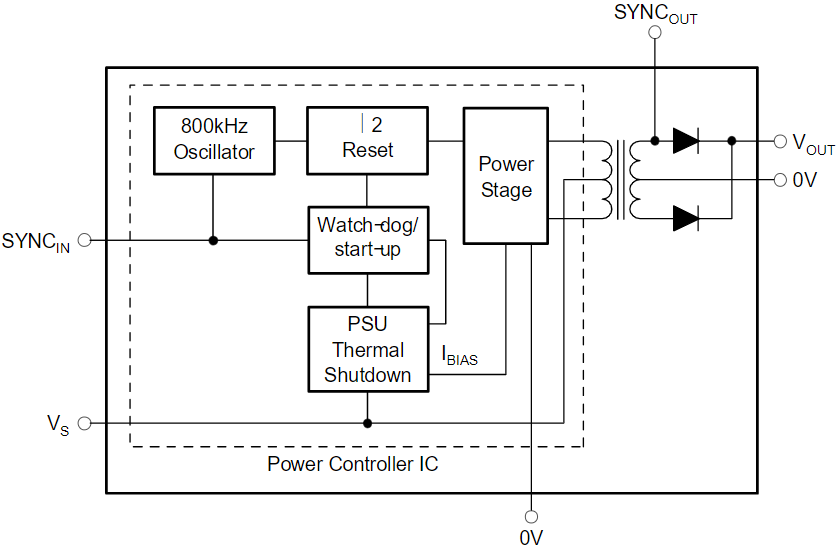

DCP010505BP Typical application Circuitry

DCP010505BP

The DCP010505BP is a component of the DCP01 series, a family of DC-DC converters known for their miniature, isolated, and regulated power delivery. These converters are particularly esteemed for their capacity to offer both isolation and voltage conversion in a compact package, making them ideal for applications in mixed-signal environments, data acquisition, and industrial control systems, where space is at a premium and isolation is necessary to minimize noise and interference.

1. Input Voltage Pins (Vin+, Vin-): The DCP010505BP requires a connection to a DC power source. The Vin+ pin is where the positive terminal of your power supply should be connected, while the Vin- pin is for the negative terminal. This module operates efficiently with an input voltage of 5V DC.

2. Output Voltage Pins (Vout+, Vout-): These pins are responsible for delivering the converted and regulated output voltage. Connect Vout+ to the positive input of your load and Vout- to the negative or ground reference. The DCP010505BP offers an isolated and regulated output, maintaining a stable power supply for sensitive electronic circuits.

3. Isolation Barrier: One of the key features of the DCP010505BP is its ability to provide electrical isolation between the input and output. This feature is vital for protecting sensitive components from voltage spikes and for reducing noise in complex electronic systems.

4. No External Components Necessary: A significant advantage of the DCP010505BP is its ease of integration, as it typically does not require any external components for basic operation. This simplicity streamlines the design process and reduces the overall footprint in your circuit design.

5. Thermal Management: While the DCP010505BP is designed for efficient operation, it's important to consider thermal aspects in your design. In order to maintain ideal working temperatures, make sure that there is sufficient air circulation surrounding the converter.

6. PCB Layout Considerations: When integrating the DCP010505BP into a PCB, it's crucial to minimize the length of the traces connected to it. This minimization reduces electromagnetic interference and ensures more stable operation. Additionally, pay attention to the isolation barrier by maintaining adequate physical separation between the input and output sides on the PCB.

7. Input and Output Capacitors: Although the DCP010505BP does not require external components for basic operation, adding capacitors at the input and output can further stabilize the voltage and reduce ripple. Applications involving delicate analog components may benefit most from this.

In conclusion, the DCP010505BP from the DCP01 series is an excellent choice for applications requiring compact, isolated, and regulated DC-DC conversion. Its ability to provide clean and stable power in a small package makes it particularly useful in space-constrained applications that are sensitive to noise and interference. Proper implementation involves careful attention to the input and output connections, consideration of thermal management, and thoughtful PCB layout to maximize the effectiveness of the DCP010505BP in your design.
