Name: DCM3623T36G53C2T00
Brand: Vicor Corporation
SKU: DCM3623T36G53C2T00
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Vicor Corporation DCM3623T36G53C2T00

Part No.:: DCM3623T36G53C2T00

Manufacturer:: Vicor Corporation

Package:: 9-DIP Module

Datasheet:: DCM3623T36G53C2T00.pdf

Description:: DC DC CONVERTER 48V 320.2W

In Stock:: 3370

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DCM3623T36G53C2T00 Specifications

Package/Case:
9-DIP Module
Packaging:
Tray
Series:
VI Chip® DCM® (320W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
18V
Voltage-Input(Max):
36V
Voltage-Output1:
48V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
6.67A
Power(Watts):
320.2 W
Voltage-Isolation:
2.25 kV
Applications:
ITE (Commercial)
Features:
OCP, OTP, OVP, SCP, UVLO
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
93%
MountingType:
Through Hole
Size/Dimension:
1.52 L x 0.90 W x 0.29 H (38.7mm x 22.8mm x 7.3mm)
ControlFeatures:
ApprovalAgency:

DCM3623T36G53C2T00 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DCM3623T36G53C2T00 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DCM3623T36G53C2T00 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DCM3623T36G53C2T00 information

Views：

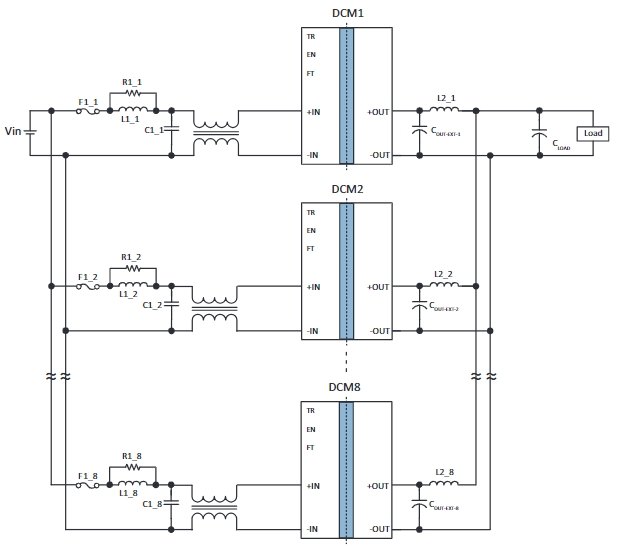

DCM3623T36G53C2T00 Typical application Circuitry

DCM3623T36G53C2T00

The DCM3623T36G53C2T00 is a cutting-edge DC-DC converter module designed by Vicor Corporation, engineered to transform and regulate power across a wide range of applications. This component excels in environments requiring high efficiency, compact size, and robust power conversion capabilities. It is particularly suited for use in telecommunications, industrial systems, battery-operated devices, and aerospace applications, where its ability to provide stable and efficient power conversion under varying load conditions is crucial.

Key Features and Parameters:

- High Efficiency Conversion: Optimizes power usage, reducing heat generation and enabling the use of smaller heat sinks.

- Wide Input Voltage Range: Facilitates operation in systems with fluctuating power supply voltages, enhancing its versatility.

- Isolated Output: Ensures that the output is electrically isolated from the input, providing protection to sensitive loads and improving safety.

- Compact Size: Its small footprint allows for integration into space-constrained applications without sacrificing performance.

- Regulated Output Voltage: Delivers a stable and precise output voltage, critical for applications requiring consistent power.

Application Scenario: One notable application for the DCM3623T36G53C2T00 is in a UAV (Unmanned Aerial Vehicle) power management system, where it regulates power from the battery to various subsystems, ensuring optimal performance and reliability during flights.

Circuit Design:

Incorporating the DCM3623T36G53C2T00 into a UAV power management system involves several critical connections and considerations:

1. Input Voltage Connection (VIN, Pins 1 and 2): Connect these pins directly to the UAV's battery system. This connection feeds the converter with the raw power it needs to convert. Given the wide input voltage range of the DCM3623T36G53C2T00, it can accommodate the battery's voltage fluctuations during operation.

2. Output Voltage Configuration (VOUT, Pins 3 and 4): The regulated output voltage from these pins powers critical UAV subsystems, such as navigation, communication, and payload management. The precision and stability of the output voltage are imperative for the reliable operation of these subsystems.

3. Ground Connection (GND, Pin 5): Establishing a solid ground connection is vital for the proper operation of the converter and for maintaining the integrity of the power management system. This pin should be connected to the UAV's common ground plane.

4. Thermal Management: Considering the DCM3623T36G53C2T00 will be operating in a confined UAV structure, effective thermal management is essential. Implementing adequate heat sinking or air flow around the converter module will prevent overheating, ensuring sustained performance.

5. Electromagnetic Interference (EMI) Considerations: Given the sensitive nature of UAV electronics, minimizing EMI generated by the converter is critical. Using shielding, proper layout, and filtering on both input and output lines can mitigate interference effects.

Design Considerations:

- Electrical Isolation: Maintaining electrical isolation between input and output ensures that sensitive subsystems are protected from voltage spikes and ground loop issues.

- Power Efficiency: Maximizing the efficiency of the DCM3623T36G53C2T00 reduces energy loss and heat generation, extending battery life and flight duration.

- Size and Weight Constraints: The compact size of the DCM3623T36G53C2T00 is advantageous, but the overall design must consider the addition of any heat sinks or EMI shielding in the context of the UAV's weight and space limitations.

- Reliability in Varied Environmental Conditions: The converter must perform reliably under the wide range of temperatures and vibrations experienced during UAV operations, necessitating robust component selection and mounting techniques.

Incorporating the DCM3623T36G53C2T00 into a UAV power management system not only highlights its efficiency and reliability in converting and regulating power but also underscores its adaptability to demanding and dynamic applications. This scenario demonstrates the critical role of the DCM3623T36G53C2T00 in ensuring the operational effectiveness and safety of sophisticated electronic systems.
