Vicor Corporation DCM3623T36G06A8T00

Part No.:: DCM3623T36G06A8T00

Manufacturer:: Vicor Corporation

Package:: 9-DIP Module

Datasheet:: DCM3623T36G06A8T00.pdf

Description:: DC DC CONVERTER 5V 175W

In Stock:: 2423

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DCM3623T36G06A8T00 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DCM3623T36G06A8T00 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DCM3623T36G06A8T00 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

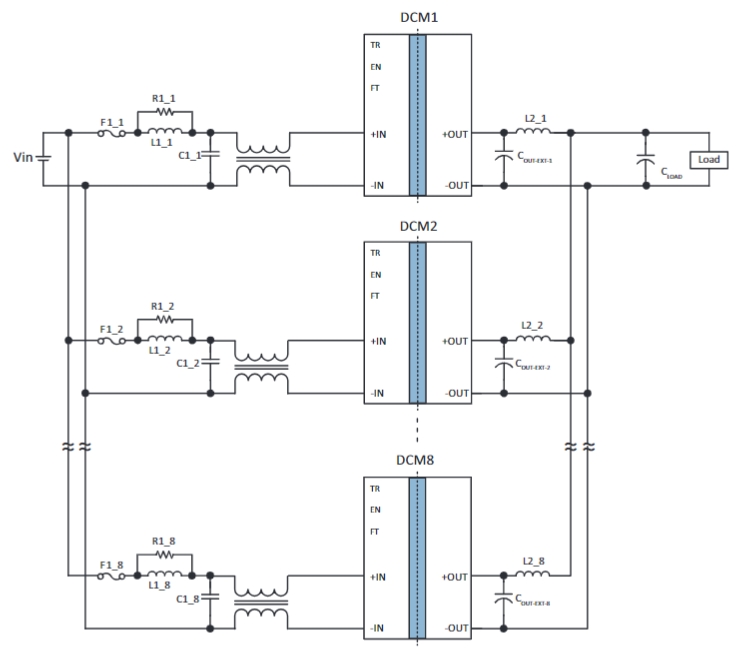

DCM3623T36G06A8T00 Typical application Circuitry

DCM3623T36G06A8T00

The DCM3623T36G06A8T00 is a DC-DC converter module designed by Vicor Corporation, known for its high efficiency and compact size. It is part of the DCM™ series converters that provide a regulated output voltage from a wide input voltage range. These modules are ideal for applications requiring high power density and efficiency, such as telecommunications, industrial equipment, and aerospace systems.

Application Scenarios

One practical application of the DCM3623T36G06A8T00 is in telecommunication systems, where it can be used to convert a broad range of input voltages to a stable output voltage, necessary for powering sensitive communication equipment.

Parameter Features

- Wide Input Voltage Range: The DCM3623T36G06A8T00 can accept a broad range of input voltages, making it versatile for various power sources.

- High Output Power: It is capable of delivering significant power output, suitable for high-demand applications.

- High Efficiency: The module is designed for high efficiency, minimizing power loss during conversion.

- Compact Size: Its small footprint makes it ideal for integration into systems where space is limited.

Specific Circuit Connection

In a telecommunication system using the DCM3623T36G06A8T00 for power conversion, the following detailed connections and considerations are crucial:

- Input Power Connection: Connect the input power source to the +IN and -IN pins of the DCM3623T36G06A8T00. Ensure that the input voltage is within the specified range for the module.

- Output Power Connection: Attach the +OUT and -OUT pins to the power input terminals of the telecommunication equipment. It's essential to verify that the output voltage of the DCM3623T36G06A8T00 matches the equipment's required input voltage.

- Grounding: Connect the -IN and -OUT pins to the system ground to ensure a common reference point for the input and output voltages, which is critical for the stability and performance of the telecommunication equipment.

- Cooling and Ventilation: Given the high power density of the DCM3623T36G06A8T00, adequate cooling or ventilation should be provided to dissipate heat efficiently and maintain optimal operating temperatures.

Design Considerations

- Input Voltage Fluctuations: Consider the range of input voltage fluctuations in the telecommunication environment and ensure the DCM3623T36G06A8T00 can handle these variations without impacting the output voltage stability.

- Load Regulation: Evaluate the load regulation characteristics of the DCM3623T36G06A8T00 and ensure it meets the requirements of the telecommunication equipment, particularly under varying load conditions.

- EMI and Noise Filtering: Implement appropriate EMI filtering and noise reduction measures at the input and output of the DCM3623T36G06A8T00 to prevent interference with sensitive telecommunication signals.

- Protection Features: Utilize the built-in protection features of the DCM3623T36G06A8T00, such as overcurrent and overtemperature protection, to safeguard the module and the connected equipment from potential damage.

By carefully implementing these connections and addressing the outlined design considerations, the DCM3623T36G06A8T00 can effectively serve as a power conversion solution in telecommunication systems, providing stable, efficient, and reliable power to critical communication equipment.

DCM3623T36G06A8T00 information

DCM3623T36G06A8T00 Specifications

Package/Case:
9-DIP Module
Packaging:
Tray
Series:
VI Chip® DCM® (180W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
18V
Voltage-Input(Max):
36V
Voltage-Output1:
5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
36A
Power(Watts):
175 W
Voltage-Isolation:
2.25 kV
Applications:
ITE (Commercial)
Features:
OCP, OTP, OVP, SCP, UVLO
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
91.9%
MountingType:
Through Hole
Size/Dimension:
1.52 L x 0.90 W x 0.29 H (38.7mm x 22.8mm x 7.3mm)
ControlFeatures:
