Texas Instruments DAC904EVM

Part No.:: DAC904EVM

Manufacturer:: Texas Instruments

Package:

Datasheet:: DAC904EVM.pdf

Description:: EVAL BOARD FOR DAC904

In Stock:: 2428

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC904EVM Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
NumberofDAC's:
1
NumberofBits:
14
SamplingRate(PerSecond):
165M
DataInterface:
CMOS
SettlingTime:
30 ns
DACType:
Current
SuppliedContents:
Board(s)

DAC904EVM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC904EVM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC904EVM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC904EVM information

Views：

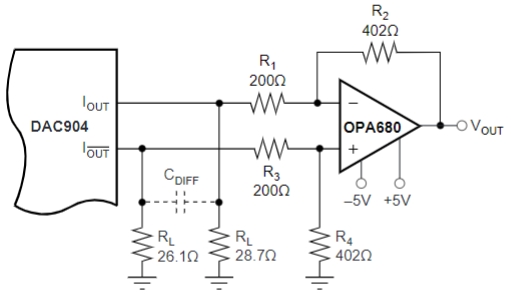

DAC904EVM Typical application Circuitry

DAC904EVM

The DAC904EVM is not a chip but an Evaluation Module (EVM) for the DAC904, a high-speed, 14-bit digital-to-analog converter (DAC) developed by Texas Instruments. The DAC904 is designed for the high-speed conversion of digital signals to analog, featuring a wide bandwidth and high data rate capability that makes it suitable for applications such as direct digital synthesis (DDS), waveform generation, and communication system components like modulators and signal reconstruction filters.

Key Features and Specifications of the DAC904:

- 14-Bit Resolution: Provides high precision in the analog output, allowing for detailed and nuanced signal generation.

- High-Speed Interface: Supports data rates up to 165 MSPS (Mega Samples Per Second), facilitating its use in high-frequency signal generation.

- Single 5V Power Supply: Simplifies power supply design by operating efficiently on a standard 5V source.

- Differential Current Output: Offers a differential current output, which can be easily converted to a voltage signal with an external operational amplifier (op-amp) or transformer, enhancing signal quality and reducing noise.

- Low Power Consumption: Designed for efficiency, making it suitable for applications where power efficiency is a concern.

Application Scenario: An exemplary application of the DAC904 (and thereby the DAC904EVM for testing and development purposes) is in a Direct Digital Synthesis (DDS) system for generating arbitrary waveforms in a signal generator.

Circuit Design Explanation:

1. Digital Data Inputs (DB0-DB13, Pins 3-16): These pins accept the 14-bit digital input data. In a DDS application, the digital waveform data is supplied to these pins from a microcontroller or FPGA (Field-Programmable Gate Array).

2. Clock Input (CLK, Pin 2): The clock input pin where the DAC904 receives its sampling clock, which controls the rate at which the DAC converts digital data to analog. For high precision in waveform generation, a stable and accurate clock source is connected to this pin.

3. Differential Current Outputs (IOUT and IOUTB, Pins 18 and 17 respectively): The DAC904 outputs the analog signal in the form of a differential current from these pins. Connecting these outputs to an external differential to single-ended converter or directly to a differential amplifier can provide the desired analog voltage waveform.

4. Reference Voltage Input (REFLO and REFHI, Pins 1 and 24): REFLO is typically connected to ground, and REFHI is connected to a stable reference voltage source. The difference between REFHI and REFLO sets the full-scale output current of the DAC904.

5. Power Supply and Grounding (AVDD, Pin 23; DGND, Pin 22; AGND, Pins 19, 20): AVDD is connected to a +5V power supply, while DGND and AGND (Digital Ground and Analog Ground) should be connected to the system ground. Proper decoupling between AVDD and AGND is crucial to minimize noise.

Design Considerations:

- Signal Integrity: Ensuring minimal noise and distortion in the digital signals supplied to the DAC904EVM is critical, requiring careful PCB layout and grounding practices.

- Power Supply Decoupling: Employing decoupling capacitors close to the AVDD and ground pins is essential to reduce noise in the power supply.

- Clock Stability: The quality of the DAC904's output signal heavily relies on the stability and purity of the clock signal. Utilizing a low-jitter clock source is recommended.

- Output Filtering: To remove high-frequency components from the DAC's output, implementing a low-pass filter at the output can improve signal quality, especially important in DDS applications for generating clean waveforms.

- Thermal Management: Even though the DAC904 is designed for low power consumption, managing heat in high-speed or continuous operation scenarios ensures stable performance.

Leveraging the DAC904EVM in a DDS system for waveform generation showcases the DAC904's ability to produce precise and high-quality analog signals from digital data, underlining its suitability for advanced electronic systems requiring high-speed DAC capabilities.
