Texas Instruments DAC8734SPFB

Part No.:: DAC8734SPFB

Manufacturer:: Texas Instruments

Package:: 48-TQFP

Datasheet:: DAC8734SPFB.pdf

Description:: IC DAC 16BIT V-OUT 48TQFP

In Stock:: 3998

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC8734SPFB Specifications

Package/Case:
48-TQFP
Packaging:
Tray
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
4
SettlingTime:
8µs (Typ)
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External
Voltage-SupplyAnalog:
4.75V ~ 24V, -4.75V ~ -18V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±1 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 105°C

DAC8734SPFB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC8734SPFB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC8734SPFB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC8734SPFB information

Views：

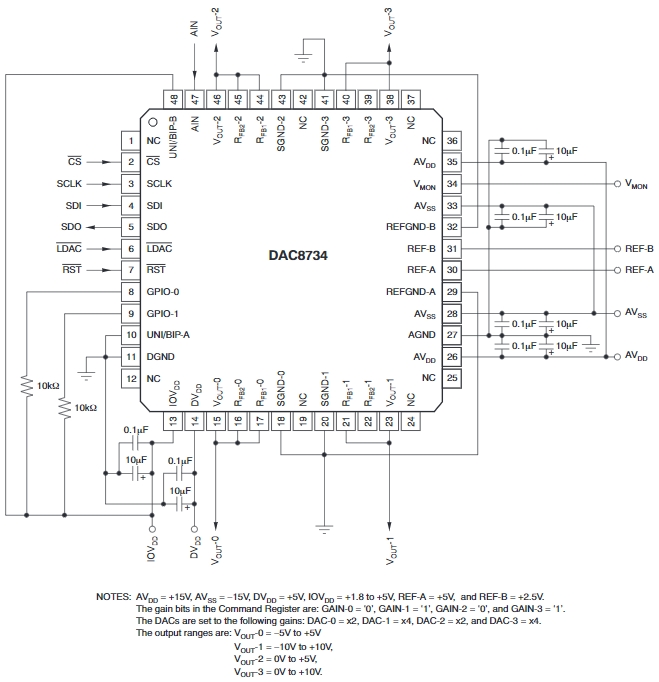

DAC8734SPFB Typical application Circuitry

DAC8734SPFB

The DAC8734SPFB is a high-precision, quad-channel, 16-bit digital-to-analog converter (DAC) designed by Texas Instruments. It is renowned for its ability to provide accurate analog output voltages from digital input signals across four independent channels. This chip is particularly suited for applications requiring fine control over multiple analog signals simultaneously, such as in industrial automation, precision instrumentation, programmable logic controllers (PLCs), and data acquisition systems where detailed analog output is crucial.

Key Features and Parameters:

- Quad 16-bit DAC Channels: Offers four independent channels for detailed and precise analog output, enabling complex control schemes.

- Integrated Precision Reference: Ensures consistent and stable performance across various conditions, enhancing output accuracy.

- Flexible Serial Interface: Supports SPI, facilitating easy and efficient communication with microcontrollers or digital signal processors.

- Low Power Consumption: Ideal for applications where minimizing energy usage is critical, including portable devices.

- Wide Operating Voltage Range: Accommodates a broad spectrum of power supply requirements, adding versatility to system design.

Application Scenario: Utilizing the DAC8734SPFB in a precision temperature control system for industrial ovens, where it regulates the temperature by adjusting the power supply to heating elements based on digital input data.

Detailed Circuit Design:

Incorporating the DAC8734SPFB into a precision temperature control system involves meticulous planning regarding its pin configuration and system integration:

1. SPI Communication Setup (SDI, Pin 5; SCLK, Pin 6; SYNC, Pin 4): These pins should be connected to the SPI bus of the temperature control system's microcontroller. This setup is essential for transmitting digital temperature setpoints to the DAC8734SPFB, which are then converted into precise analog voltages to control the heating elements.

2. Analog Outputs for Temperature Control (VOUTA, Pin 15; VOUTB, Pin 14; VOUTC, Pin 13; VOUTD, Pin 12): Connect these pins to the control circuitry of the heating elements. The DAC8734SPFB's capability to provide distinct and accurate voltages on each channel allows for fine regulation of temperature across different zones of the industrial oven.

3. Power Supply and Grounding (AVDD, Pin 24; AGND, Pin 23): Supplying a stable and noise-free power source to AVDD is crucial for optimal DAC operation. Proper grounding through AGND is paramount to minimize noise and ensure the accuracy of the analog outputs.

4. Integrated Reference Voltage Configuration (REFIN/OUT, Pin 20): Utilizing the DAC8734SPFB's integrated precision reference voltage is key to achieving stable and accurate output voltages for precise temperature control. Ensuring that REFIN/OUT is properly configured and stable is crucial for the system's performance.

5. Output Filtering and Stability (VOUTA-D): Implementing low-pass filters on the outputs may be necessary to smooth the analog voltages and eliminate any potential high-frequency noise, ensuring precise control over the industrial oven's temperature.

Design Considerations:

- Isolation Between Digital and Analog Domains: Maintaining clear separation between the DAC8734SPFB's digital communication interface and the analog output paths is critical to prevent digital noise from affecting the analog signals.

- Decoupling Capacitors for Power Stability: Placing decoupling capacitors close to the DAC8734SPFB's power supply pins is vital for filtering out noise and stabilizing the power supply, ensuring consistent DAC performance.

- Thermal Management: While the DAC8734SPFB is designed for low power consumption, attention to thermal management within the circuit design is beneficial to prevent potential issues related to heat, especially in continuous or high-demand operation.

- Reference Voltage Stability: The precision of the temperature control system heavily relies on the stability and accuracy of the integrated reference voltage. Ensuring the DAC8734SPFB's reference voltage remains stable and accurate is fundamental for achieving reliable and precise temperature regulation.

By leveraging the DAC8734SPFB in a precision temperature control system for industrial ovens, one can harness its quad-channel, high-resolution output capability to produce accurate and controlled analog voltages, demonstrating its utility and precision in applications requiring detailed analog signal control for critical processes.
