Texas Instruments DAC8560IDDGKTG4

Part No.:: DAC8560IDDGKTG4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: DAC8560IDDGKTG4.pdf

Description:: IC DAC 16BIT V-OUT 8VSSOP

In Stock:: 2919

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC8560IDDGKTG4 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
microPOWER™
ProductStatus:
Discontinued at Mosen
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±4, ±0.5
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC8560IDDGKTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC8560IDDGKTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC8560IDDGKTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC8560IDDGKTG4 information

Views：

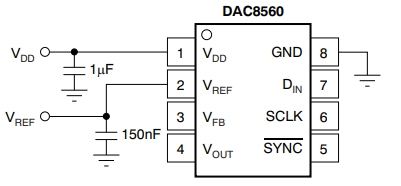

DAC8560IDDGKTG4 Typical application Circuitry

DAC8560IDDGKTG4

The DAC8560IDDGKTG4 is a single-channel, 16-bit precision digital-to-analog converter (DAC) chip designed by Texas Instruments. Known for its high resolution and accuracy, the DAC8560IDDGKTG4 efficiently converts digital input signals into precise analog voltage outputs. This chip is especially valued in applications requiring exact analog control or signal generation, such as in industrial automation, precision instrumentation, automated test equipment, and analog power supplies.

Key Features and Parameters:

- 16-Bit Resolution: Provides high-precision analog output, suitable for critical applications that demand detailed control.

- Integrated Output Amplifier: Features a built-in output buffer, facilitating direct connection to loads without needing external buffering.

- Serial Peripheral Interface (SPI): Enables easy and efficient communication with microcontrollers or digital signal processors, supporting fast data transfer.

- Low Power Consumption: Optimally designed for applications where energy efficiency is crucial, making it suitable for battery-powered devices.

- Wide Operating Voltage Range: Offers flexibility in accommodating various system voltages, enhancing its adaptability across different power environments.

Application Scenario: An exemplary application for the DAC8560IDDGKTG4 is in a programmable voltage source used in laboratory test equipment, where it generates precise voltage levels for testing and calibration purposes.

Circuit Design:

Deploying the DAC8560IDDGKTG4 in a programmable voltage source involves careful consideration of its pin layout and system integration:

1. SPI Communication Interface (DIN, Pin 3; SCLK, Pin 4; SYNC, Pin 5): These pins should be interfaced with the SPI bus of the controlling microcontroller. This configuration is essential for transmitting digital voltage level commands to the DAC8560IDDGKTG4, converting them into precise analog outputs.

2. Analog Output Connection (VOUT, Pin 6): The DAC's analog output pin is directly connected to the voltage output terminal of the test equipment. The accuracy and stability of VOUT are crucial for ensuring that the equipment can provide reliable test voltages to the devices under test.

3. Power Supply and Grounding (AVDD, Pin 24; AGND, Pin 23): Supplying a stable and clean power source to AVDD is vital for optimal DAC performance. Establishing a solid ground connection through AGND is necessary to minimize noise and ensure the integrity of the analog output.

4. Reference Voltage Input (REF, Pin 7): An external precision reference voltage connected to this pin determines the full-scale output voltage range of the DAC, essential for calibrating the output to specific voltage requirements.

5. Output Filtering (VOUT, Pin 6): Implementing a low-pass filter on the output may be necessary to eliminate any high-frequency noise or digital artifacts, ensuring that the output voltage signal is smooth and accurate.

Design Considerations:

- Isolation Between Digital and Analog Domains: Keeping the SPI communication lines physically and electrically isolated from the analog output path is important to prevent digital noise from affecting the analog signal quality.

- Stable Power Supply: Utilizing decoupling capacitors near the DAC8560IDDGKTG4's power supply pins is crucial for filtering out noise and stabilizing the power supply, which is vital for maintaining consistent DAC performance.

- Thermal Management: While the DAC8560IDDGKTG4 is designed for low power consumption, proper thermal management within the circuit design is beneficial to avoid any potential issues related to heat accumulation.

- Reference Voltage Stability: The precision of the programmable voltage source relies significantly on the stability and accuracy of the reference voltage supplied to the DAC8560IDDGKTG4. Employing a high-quality, stable reference voltage source is imperative for achieving precise and reliable voltage outputs.

Incorporating the DAC8560IDDGKTG4 into a programmable voltage source for laboratory test equipment demonstrates the DAC's ability to deliver highly accurate and controlled analog outputs from digital inputs, highlighting its effectiveness and precision in applications requiring fine voltage control for testing and calibration.
