Texas Instruments DAC8560IDDGKT

Part No.:: DAC8560IDDGKT

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: DAC8560IDDGKT.pdf

Description:: IC DAC 16BIT V-OUT 8VSSOP

In Stock:: 3188

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC8560IDDGKT Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
microPOWER™
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±4, ±0.5
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC8560IDDGKT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC8560IDDGKT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC8560IDDGKT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC8560IDDGKT information

Views：

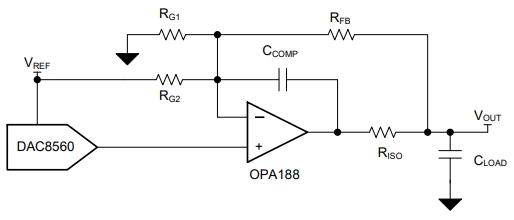

DAC8560IDDGKT Typical application Circuitry

DAC8560IDDGKT

The DAC8560IDDGKT, crafted by Texas Instruments, is a premium, single-channel, 16-bit digital-to-analog converter (DAC) recognized for its exceptional ability to transform digital information into precise analog output voltages. Its standout features include a high resolution for detailed signal generation, an integrated output amplifier for direct load driving, and a Serial Peripheral Interface (SPI) for streamlined communication with microcontrollers or processors. These attributes make the DAC8560IDDGKT an excellent choice for various applications, such as precision instrumentation, controlled system automation, and bespoke analog signal creation.

Principal Features and Attributes:

- 16-bit Resolution: The DAC8560IDDGKT's high resolution ensures the delivery of finely tuned analog voltages, pivotal for applications demanding strict accuracy.

- Built-in Output Amplifier: This feature allows the DAC to connect directly to external loads or systems, facilitating ease of integration and reducing the need for additional circuit components.

- SPI Compatibility: The inclusion of an SPI interface provides a robust pathway for digital communication, enabling efficient and reliable data transfer from the controlling system to the DAC.

- Energy-efficient Operation: Designed to consume minimal power, the DAC8560IDDGKT is ideally suited for applications where power conservation is crucial.

- Flexible Voltage Support: Its ability to operate across a variety of power supply voltages enhances its adaptability in diverse electrical environments.

Application Example: The DAC8560IDDGKT shines in applications such as the development of a precision-controlled fluid dispensing system, where it modulates the valve to precisely control the flow rate based on digital inputs.

In-depth Circuit Integration:

Implementing the DAC8560IDDGKT in a precision-controlled fluid dispensing system involves meticulous attention to pin connections and system compatibility:

1. SPI Digital Interface (DIN, Pin 3; SCLK, Pin 4; SYNC, Pin 5): Link these pins to the SPI outputs on the system's microcontroller. This setup is crucial for transmitting digital control data to the DAC8560IDDGKT, which it then accurately converts to analog signals to manage the dispensing valve's operation.

2. Analog Output Engagement (VOUT, Pin 6): This pin connects directly to the control mechanism of the fluid dispensing valve. The DAC8560IDDGKT's precise analog output regulates the valve's position, thus controlling the flow rate with high precision.

3. Power Supply Configuration (AVDD, Pin 24; AGND, Pin 23): Providing a stable and clean power source to AVDD is essential for the DAC's optimal functionality. A reliable ground through AGND is paramount to mitigate signal distortion and ensure the purity of the analog output.

4. Reference Voltage Application (REF, Pin 7): Attach an external high-accuracy reference voltage to this pin to determine the DAC's output voltage range. Precisely setting this parameter is key to calibrating the fluid flow to desired specifications.

5. Output Filtering Technique (VOUT, Pin 6): Incorporating a filter at the DAC's output might be necessary to eliminate potential signal noise, ensuring the analog control signal is smooth and consistent for accurate fluid dispensation.

Critical Design Insights:

- Segregation of Digital and Analog Domains: It's imperative to physically and electrically separate the digital communication lines from the analog output circuit to avert the intrusion of digital noise into the analog signal.

- Ensuring Power Integrity: The strategic placement of decoupling capacitors near the DAC8560IDDGKT's power supply pins is crucial for negating noise and stabilizing the power input, which is vital for maintaining consistent DAC performance.

- Considerations for Thermal Management: Although the DAC8560IDDGKT operates with low power dissipation, managing heat within the circuit design is beneficial for sustaining performance, especially in enclosed or dense configurations.

- Accuracy of Reference Voltage: The overall system accuracy and the efficacy of the fluid dispensing control hinge on the precision and stability of the reference voltage supplied to the DAC8560IDDGKT. Utilizing a high-quality reference voltage source is fundamental for optimal operation.

Employing the DAC8560IDDGKT in a precision-controlled fluid dispensing system exemplifies the DAC's capability to precisely convert digital commands into controlled analog outputs, underscoring its value in applications requiring meticulous analog control based on digital inputs.
