Texas Instruments DAC8560IDDGKR

Part No.:: DAC8560IDDGKR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: DAC8560IDDGKR.pdf

Description:: IC DAC 16BIT V-OUT 8VSSOP

In Stock:: 3131

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC8560IDDGKR Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
microPOWER™
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±4, ±0.5
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC8560IDDGKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC8560IDDGKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC8560IDDGKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC8560IDDGKR information

Views：

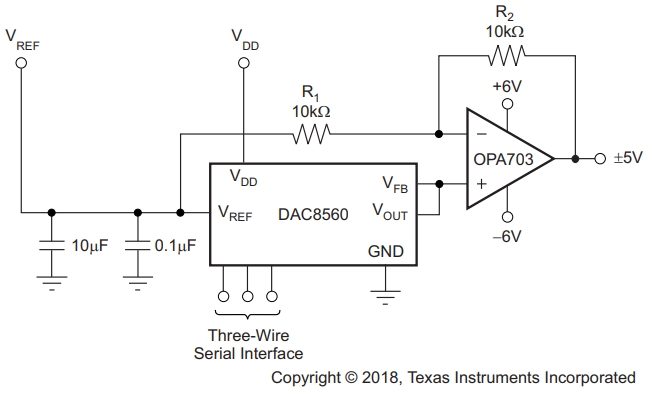

DAC8560IDDGKR Typical application Circuitry

DAC8560IDDGKR

The DAC8560IDDGKR is a high-precision, single-channel, 16-bit digital-to-analog converter (DAC) chip manufactured by Texas Instruments. This device is designed for applications that demand accurate and stable analog output from a digital input, making it highly suitable for use in industrial automation, precision instrumentation, automated test equipment, and analog power supplies.

Key Features and Parameters:

- 16-Bit Resolution: Offers high precision in converting digital signals to analog output, enabling fine control over the output voltage.

- Integrated Output Amplifier: Facilitates direct driving of loads without the need for an external buffer, simplifying circuit design.

- Serial Peripheral Interface (SPI): Provides a straightforward and efficient means for digital communication, allowing for easy integration with microcontrollers or digital signal processors.

- Low Power Consumption: Ideal for energy-sensitive applications, contributing to the efficiency of battery-operated and portable devices.

- Wide Operating Voltage Range: Supports a broad range of supply voltages, adding versatility to various system designs.

Application Scenario: A notable application for the DAC8560IDDGKR is in controlling a precision actuator system, where it adjusts the actuator's position with high accuracy for applications like robotics or precision machining.

Circuit Design:

Implementing the DAC8560IDDGKR in a precision actuator control system involves detailed consideration of its pin connections and interfacing with other components:

1. SPI Communication Setup (DIN, Pin 3; SCLK, Pin 4; SYNC, Pin 5): Connect these pins to the SPI bus of the controlling microcontroller. This connection is crucial for transmitting digital control signals to the DAC8560IDDGKR, which are then converted into precise analog voltages to control the actuator's position.

2. Analog Output to Actuator Control (VOUT, Pin 6): The DAC's analog output pin is connected to the control input of the actuator's driving circuit. The precision of this output is essential for accurately positioning the actuator.

3. Power Supply and Grounding (AVDD, Pin 24; AGND, Pin 23): Supplying a stable and clean power source to AVDD is vital for optimal DAC operation. A solid connection to AGND is necessary to minimize noise and ensure the integrity of the analog output.

4. Reference Voltage Input (REF, Pin 7): An external precision reference voltage connected to this pin defines the full-scale output voltage range of the DAC. This input is critical for calibrating the actuator control to the desired range of motion.

5. Output Filtering (VOUT, Pin 6): To ensure that the analog signal controlling the actuator is smooth and free of high-frequency noise, implementing a low-pass filter on the output may be necessary.

Design Considerations:

- Isolation Between Digital and Analog Sections: It's important to physically and electrically isolate the DAC8560IDDGKR's digital communication lines from its analog output path to prevent digital noise from affecting the analog signal quality.

- Stable Power Supply: Using decoupling capacitors near the DAC8560IDDGKR's power supply pins is crucial for filtering out noise and stabilizing the power supply, which is vital for maintaining consistent DAC performance.

- Thermal Management: Although the DAC8560IDDGKR is designed for low power consumption, attention to thermal management within the circuit design is beneficial to prevent any potential thermal-related issues.

- Reference Voltage Stability: The precision of the actuator control system heavily relies on the stability and accuracy of the reference voltage supplied to the DAC8560IDDGKR. Selecting a high-quality, stable reference voltage source is critical for achieving precise control over the actuator's position.

Incorporating the DAC8560IDDGKR into a precision actuator control system highlights the DAC's capability to deliver accurate and controlled analog outputs from digital inputs, demonstrating its effectiveness and precision in applications requiring fine control over actuator positions.
