What is the Additional Feature ?

Name: DAC7760IPWP
Brand: Texas Instruments
SKU: DAC7760IPWP
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments DAC7760IPWP

Part No.:: DAC7760IPWP

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: DAC7760IPWP.pdf

Description:: IC DAC 12BIT V OR A-OUT 24HTSSOP

In Stock:: 3012

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC7760IPWP Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width) Exposed Pad
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
25µs (Typ)
OutputType:
Voltage or Current - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
10V ~ 36V, -18V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
-, ±1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 125°C

DAC7760IPWP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC7760IPWP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC7760IPWP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC7760IPWP information

Views：

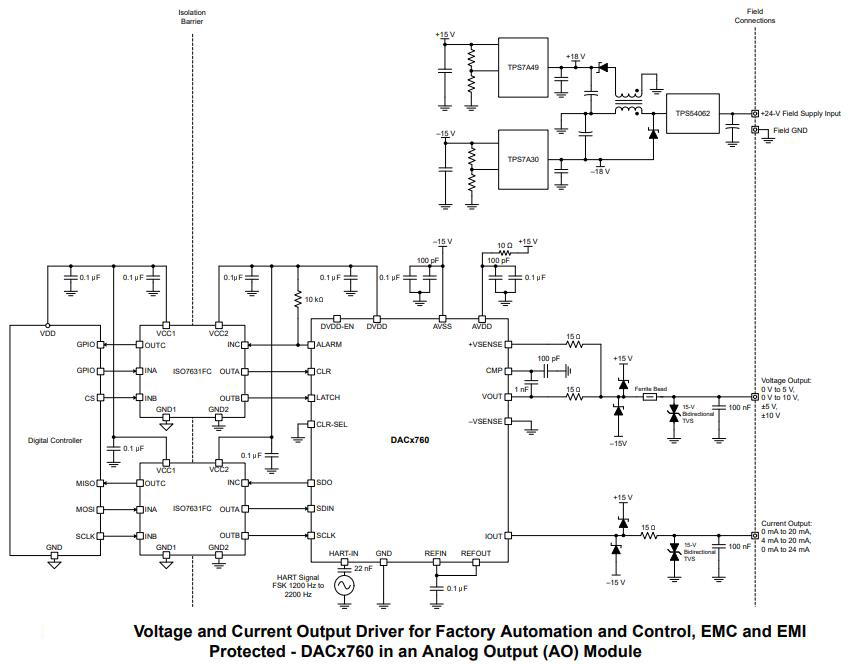

DAC7760IPWP Typical application Circuitry

The DAC7760IPWP is a precision, low-power, 12-bit, programmable current/voltage output digital-to-analog converter (DAC) in the industrial DACs portfolio, which was developed by Texas Instruments.

Key Features of DAC7760IPWP:

1. 12-Bit Resolution: The DAC7760IPWP operates with a 12-bit resolution, offering precise control of the output current or voltage.

2. Programmable Voltage and Current Output: One of the key features of this DAC is that it can be programmed to output either voltage or current, making it a flexible choice for various applications.

3. Power-on Reset to Zero Scale or Midscale: When the device is powered on, the DAC7760IPWP is designed to reset to either zero scale or midscale, according to the user's preference.

4. Internal Precision Reference: The DAC7760IPWP has an internal precision reference, so an external one is not required.

Common Applications for DAC7760IPWP:

The DAC7760IPWP finds utility in several areas, including:

- Industrial Automation

- Process Control

- Building Automation

- Test and Measurement Equipment

Detailed Circuit Connection Using DAC7760IPWP:

Assume we're using DAC7760IPWP in a process control application. Here's a detailed outline of connections:

1. Power Supply Connections: The DAC7760IPWP requires both a positive supply voltage and a negative supply voltage. Pin 24 (AVDD) should be connected to a +15V supply, while pin 11 (AVSS) should be connected to a -15V supply.

2. Digital Input: The digital input is provided via a serial interface. Pin 20 (SDI) is the serial data input pin, where the digital signal from the controller or other digital source should be connected.

3. Clock Input: Pin 21 (SCLK) is the serial clock input, which dictates the data transfer rate. The clock signal from the controller must be linked to this pin.

4. Load Connection: For a current output, the load should be connected between pin 6 (IOUT) and the appropriate current return (IOUTR). For a voltage output, the load should be connected between pin 7 (VOUT) and AGND (pin 5).

5. Reference Connection: For using the internal reference, connect pin 18 (VREFIN) to pin 19 (VREFOUT).

Design Considerations for DAC7760IPWP:

Designing a circuit with DAC7760IPWP requires considering certain factors:

1. Power Supply Decoupling: Power supply lines should be decoupled with 10 µF and 0.1 µF capacitors.

2. Digital Noise: Digital noise should be minimized since it can cause inaccurate conversion.

3. Thermal Management: Despite the DAC7760IPWP having low low power consumption, ensuring good thermal management is essential for reliable operation.

4. Output Load: The load connected to the DAC output can influence its performance. Make sure the load's impedance is high enough to not excessively load the DAC's output.

DAC7760IPWP FAQ

1. How to order DAC7760IPWP on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that DAC7760IPWP is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the DAC7760IPWP. All suppliers must pass our qualification reviews before they can publish their products including DAC7760IPWP on icwhale.com; we pay more attention to the channels and quality of DAC7760IPWP products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the DAC7760IPWP price and inventory displayed accurate?

The price and inventory of DAC7760IPWP fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of DAC7760IPWP?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DAC7760IPWP we delivered, we will accept the replacement or return of the DAC7760IPWP only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of DAC7760IPWP.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
