Texas Instruments DAC7512N/3K

Part No.:: DAC7512N/3K

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: DAC7512N/3K.pdf

Description:: IC DAC 12BIT V-OUT SOT23-6

In Stock:: 2255

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC7512N/3K Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Supply
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±8 (Max), ±1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC7512N/3K this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC7512N/3K price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC7512N/3K to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC7512N/3K information

Views：

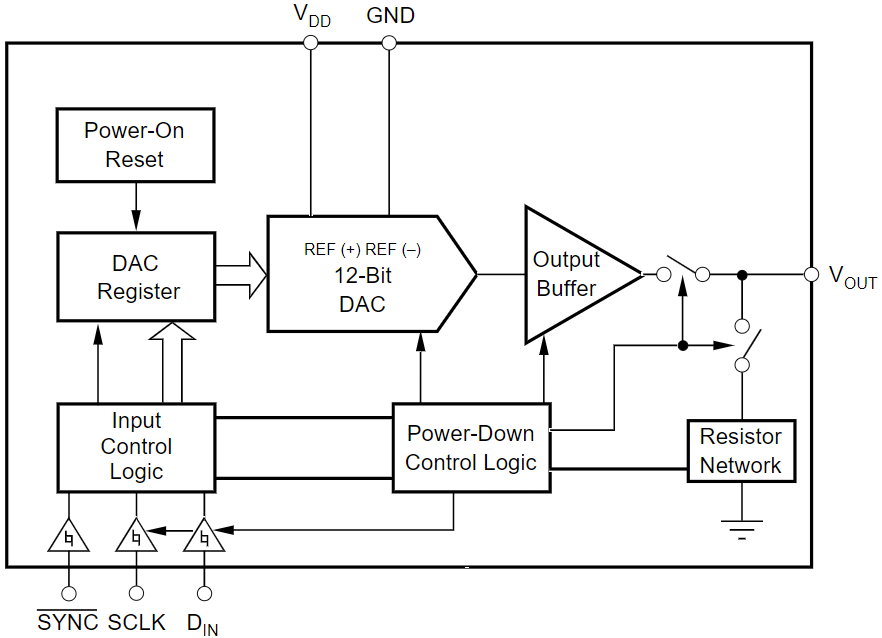

DAC7512N/3K Typical application Circuitry

DAC7512N 3K

The DAC7512N/3K is an integral component of the DAC7512 series from Texas Instruments, renowned for its compact size and efficient digital-to-analog conversion capabilities. This specific model, the DAC7512N/3K, is a 12-bit DAC valued for its versatility and accuracy, making it highly suitable for applications where space is at a premium, such as in handheld devices, control systems, and precision measurement instruments.

1. VDD - Power Supply Pin: The VDD pin on the DAC7512N/3K should be connected to a stable power source. Keeping the supply voltage within the range of 2.7V to 5.5V is crucial for the DAC's optimal operation.

2. GND - Ground Pin: The GND pin must be connected to the system's ground. This connection provides a stable base for the entire circuit, ensuring the DAC operates correctly.

3. DIN - Digital Input Pin: The DIN pin is used for transferring digital data into the DAC7512N/3K. Connect this pin to the serial data output of the controlling microcontroller or digital interface.

4. SCLK - Serial Clock Pin: The SCLK pin must be connected to the serial clock source from the digital control system. This clock ensures the correct timing of data transmission to the DAC.

5. SYNC - Chip Select Pin: The SYNC pin plays a key role in controlling the DAC7512N/3K's communication. When low, the DAC is active and can receive data; when high, it is inactive, allowing other devices on the bus to communicate.

6. OUT - Analog Output Pin: The OUT pin delivers the DAC7512N/3K's analog output. This output should be routed to the next component in the circuit, such as an amplifier or directly to an analog input.

7. Decoupling Capacitor: Position a decoupling capacitor, typically around 0.1 μF, close to the VDD pin. This capacitor helps stabilize the power supply to the DAC and reduces noise.

8. PCB Layout Design: For the PCB layout, ensure short connections to the DIN and SCLK pins to minimize potential signal distortion. Also, keep the analog output path separate from digital paths to prevent interference.

In conclusion, the DAC7512N/3K from Texas Instruments' DAC7512 series stands out as a precise and compact DAC, ideal for applications requiring accuracy in a small footprint. Proper implementation includes accurate connections for the power supply, digital input, and analog output. Integrating a decoupling capacitor and thoughtful PCB design are essential for the DAC's effective and stable performance.
