National Semiconductor DAC124S085CIMM

Part No.:: DAC124S085CIMM

Manufacturer:: National Semiconductor

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: DAC124S085CIMM.pdf

Description:: DAC, 1 FUNC, SERIAL INPUT LOADIN

In Stock:: 2479

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC124S085CIMM Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
4
SettlingTime:
8.5µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±2.4, +0.2
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC124S085CIMM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC124S085CIMM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC124S085CIMM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC124S085CIMM information

Views：

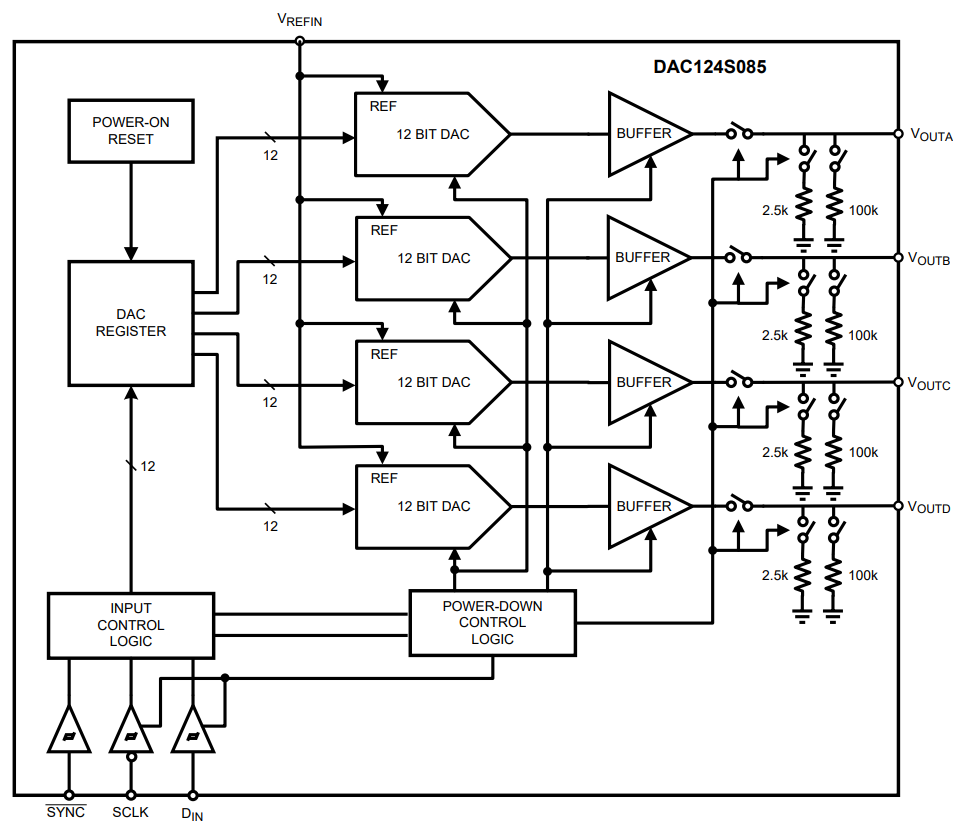

DAC124S085CIMM Typical application Circuitry

DAC124S085CIMM

The DAC124S085CIMM is a component of the DAC124S085 series, a lineup of quad 12-bit micro-power digital-to-analog converters (DACs) known for their efficiency and precision in converting digital signals into analog form. This series is particularly designed for applications that require multiple DAC channels with minimal power consumption and space, such as in portable devices, telecommunications, and digital control systems. The "CIMM" suffix typically denotes the package type and other specific characteristics tailored to enhance performance and integration ease.

1. Salient Features of the DAC124S085CIMM Series: The DAC124S085CIMM is engineered to offer exceptional accuracy and stability in digital-to-analog conversion processes, characterized by its 12-bit resolution and quad-channel configuration. This device stands out for its low power consumption and wide operating voltage range, making it suitable for a broad spectrum of applications where efficiency and precision are critical.

2. Pin Configuration and Integration Protocol: The DAC124S085CIMM is encapsulated in a 10-pin MSOP (Mini Small Outline Package), where each pin is allocated a specific function to facilitate the DAC's operation. Pin 1 (SYNC) is used to synchronize the communication with the DAC. Pin 2 (SCLK) serves as the serial clock input, coordinating the timing of data transmission. Pin 3 (DIN) is the data input pin, receiving the digital code to be converted. Pin 4 (GND) is connected to the ground, providing a reference point for the system's operations. Pins 5 and 6 (VOUT A and VOUT B, respectively) are the analog output pins for the first two DAC channels. Pin 7 (VREF) sets the reference voltage for the DAC outputs, determining their scale. Pins 8 and 9 (VOUT C and VOUT D) are the analog outputs for the remaining two channels. Lastly, Pin 10 (VDD) is the positive power supply pin, essential for powering the device.

3. Effective Deployment of the DAC124S085CIMM in Circuits: To properly incorporate the DAC124S085CIMM into a circuit, it is essential to connect the SYNC, SCLK, and DIN pins to the corresponding outputs of the controlling digital system or microcontroller. The VREF pin should be connected to a stable voltage reference source to ensure the accuracy of the analog outputs. The VDD and GND pins must be carefully integrated with the system's power supply to ensure clean and stable operation. The VOUT A, VOUT B, VOUT C, and VOUT D pins will provide the converted analog signals, which should be routed to the next stages of the system's analog processing.

4. Optimizing the Performance of the DAC124S085CIMM: Achieving optimal performance from the DAC124S085CIMM involves ensuring stable power supply lines, minimizing noise on the digital inputs, and providing a precise and stable reference voltage. Employing sound layout and grounding techniques can significantly improve the DAC's performance, enhancing signal integrity and reducing potential interference.

5. Designing with the DAC124S085CIMM in Mind: When designing a system with the DAC124S085CIMM, it's vital to consider the integration of the digital interface, power supply configuration, and handling of the analog outputs. Implementing short, direct paths for digital signals and using appropriate decoupling methods can greatly improve the system's overall performance.

6. Applications Encompassing the DAC124S085CIMM: The DAC124S085CIMM's multi-channel capability and low power consumption make it an excellent choice for a wide range of applications, including multi-channel instrumentation, programmable voltage and current sources, and digital control systems, where multiple analog outputs from digital signals are required.

In summary, the DAC124S085CIMM from the DAC124S085 series represents a cutting-edge solution in digital-to-analog conversion technology, combining multi-channel functionality, high precision, and energy efficiency. Its deployment in electronic systems requires careful planning around pin connections, power management, and signal routing to ensure the DAC124S085CIMM performs effectively in a variety of sophisticated applications.
