Texas Instruments DAC121S101CIMKX/NOPB

Part No.:: DAC121S101CIMKX/NOPB

Manufacturer:: Texas Instruments

Package:: SOT-23-6 Thin, TSOT-23-6

Datasheet:: DAC121S101CIMKX/NOPB.pdf

Description:: IC DAC 12BIT V-OUT TSOT23-6

In Stock:: 2454

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC121S101CIMKX/NOPB Specifications

Package/Case:
SOT-23-6 Thin, TSOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Supply
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±8 (Max), ±0.5/+1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC121S101CIMKX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC121S101CIMKX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC121S101CIMKX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC121S101CIMKX/NOPB information

Views：

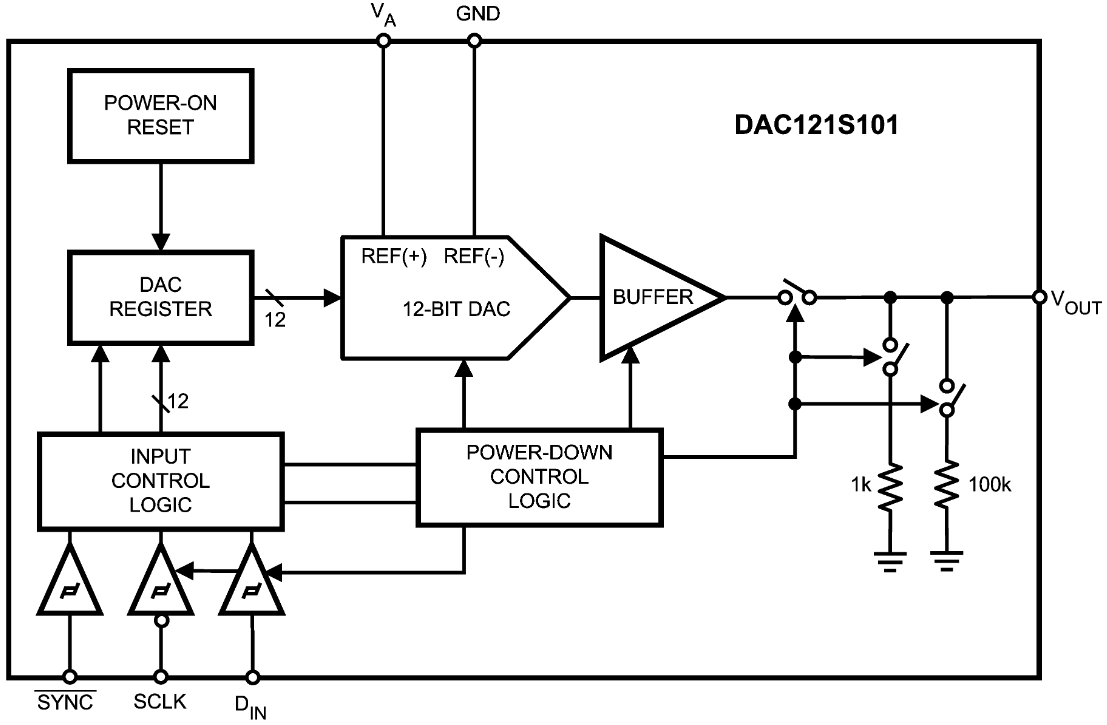

DAC121S101CIMKX/NOPB Typical application Circuitry

DAC121S101CIMKX NOPB

The DAC121S101CIMKX/NOPB is a digital-to-analog converter (DAC) belonging to a series known for its compactness, precision, and power efficiency. This series is particularly well-suited for converting digital signals into accurate analog outputs in various applications, such as in data acquisition systems, digital control, and audio processing. The DAC121S101CIMKX/NOPB distinguishes itself with its 12-bit resolution and utilizes a Serial Peripheral Interface (SPI) for communication, making it highly suitable for space-constrained and power-sensitive applications.

1. Power Supply Pin (VDD): The DAC121S101CIMKX/NOPB's VDD pin should be linked to a reliable power supply. Its operating voltage range is typically from 2.7V to 5.5V.

2. Ground Pin (GND): Join the circuit's common ground to the GND pin. This connection is crucial for the DAC's stable operation.

3. Digital Input Pins (SDI, SCLK): The SDI (Serial Data Input) pin is for receiving digital data, while the SCLK (Serial Clock Input) pin is for the clock signal. These should be connected to the corresponding SPI lines from the controlling microcontroller or digital source.

4. Chip Select Pin (CS): The CS pin controls the activation of the DAC121S101CIMKX/NOPB. When this pin is low, the DAC is enabled to receive data. This should be connected to a digital output on the controlling device.

5. Analog Output Pin (VOUT): The VOUT pin provides the analog output converted from the digital input. Connect this pin to the next stage in your circuit, such as an amplifier or directly to your load, depending on the application.

6. Decoupling Capacitor: A decoupling capacitor should be placed close to the VDD pin to stabilize the power supply and minimize noise, enhancing the DAC's performance.

7. PCB Layout Considerations: When designing the PCB, ensure minimal trace lengths for the SDI and SCLK lines to reduce signal degradation. Additionally, keep the analog output trace (VOUT) away from high-speed digital lines to prevent interference.

In conclusion, the DAC121S101CIMKX/NOPB is a highly capable DAC, perfect for a range of applications requiring the conversion of digital to analog signals. Effective use involves correct connections for the power supply, ground, SPI communication, chip select, and analog output. Moreover, integrating a decoupling capacitor and thoughtful PCB design are essential for maintaining signal integrity and optimal performance of the DAC121S101CIMKX/NOPB.
