Texas Instruments DAC121S101CIMK

Part No.:: DAC121S101CIMK

Manufacturer:: Texas Instruments

Package:: SOT-23-6 Thin, TSOT-23-6

Datasheet:: DAC121S101CIMK.pdf

Description:: IC DAC 12BIT V-OUT TSOT23-6

In Stock:: 13551

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DAC121S101CIMK Specifications

Package/Case:
SOT-23-6 Thin, TSOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Supply
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±8 (Max), ±0.5/+1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

DAC121S101CIMK this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DAC121S101CIMK price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DAC121S101CIMK to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DAC121S101CIMK information

Views：

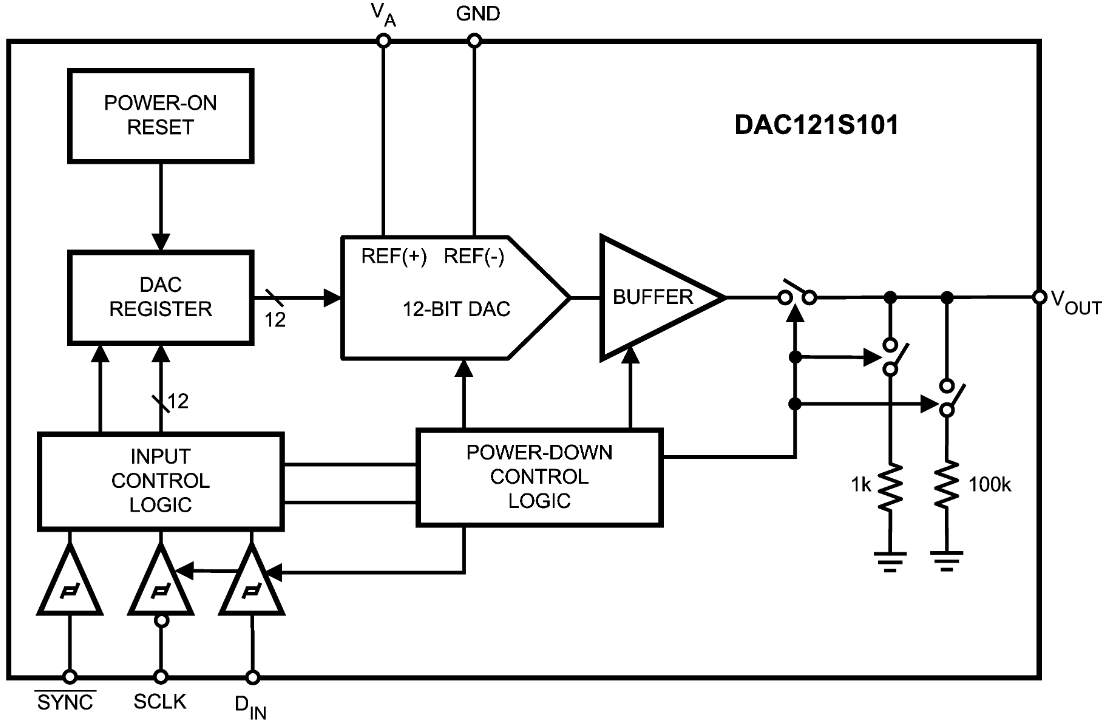

DAC121S101CIMK Typical application Circuitry

DAC121S101CIMK

The DAC121S101CIMK is a member of a series of digital-to-analog converters (DACs) recognized for their compact size, high efficiency, and precision. This series is ideally suited for applications that require converting digital signals into accurate and stable analog outputs, such as in data acquisition systems, digital control, and audio processing. The DAC121S101CIMK stands out with its 12-bit resolution and a simplified Serial Peripheral Interface (SPI), making it an optimal choice for systems where space, power efficiency, and straightforward digital interfacing are vital.

1. Power Supply Connection (VDD Pin): A reliable power supply has to be connected to the VDD pin. The DAC121S101CIMK typically operates in a voltage range from 2.7V to 5.5V.

2. Ground Link (GND Pin): Join the GND pin to the circuit's common ground. The DAC needs this grounding in order to operate steadily.

3. Digital Input Pins (SDI, SCLK): The SDI (Serial Data Input) pin receives the digital data to be converted, while the SCLK (Serial Clock Input) pin receives the clock signal. These should be connected to the corresponding output and clock lines of the controlling microcontroller or digital system using the SPI protocol.

4. Chip Select (CS): The CS (Chip Select) pin enables or disables the DAC. When low, the DAC121S101CIMK is active and can receive data. This pin can be connected to a digital output on your microcontroller to control when the DAC is active.

5. Analog Output (VOUT): The VOUT pin provides the converted analog output. This should be connected to the next stage in your circuit, such as an amplifier, filter, or directly to a load, depending on the requirements of your application.

6. Decoupling Capacitor for Power Stability: Using a decoupling capacitor close to the VDD pin is advised. This helps to stabilize the power supply and reduce noise, thus ensuring smooth operation of the DAC121S101CIMK.

7. PCB Design Considerations: In your PCB layout, ensure that the trace lengths for the digital lines (SDI, SCLK, and CS) are minimized to reduce signal degradation. Additionally, keep the analog output trace (VOUT) away from high-speed or noisy digital traces to prevent interference.

In conclusion, the DAC121S101CIMK is a highly efficient and precise DAC suitable for numerous applications where digital-to-analog conversion is needed. Effective implementation involves correctly connecting the power supply, ground, digital input lines, chip select, and analog output. Additionally, incorporating a decoupling capacitor and thoughtful PCB design are crucial to maintain signal integrity and achieve optimal performance from the DAC121S101CIMK.
