Dialog Semiconductor GmbH DA14531MOD-00F01002

Part No.:: DA14531MOD-00F01002

Manufacturer:: Dialog Semiconductor GmbH

Package:

Datasheet:: DA14531MOD-00F01002.pdf

Description:: BLUETOOTH LOW ENERGY 5.1 MODULE

In Stock:: 3323

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DA14531MOD-00F01002 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DA14531MOD-00F01002 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DA14531MOD-00F01002 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

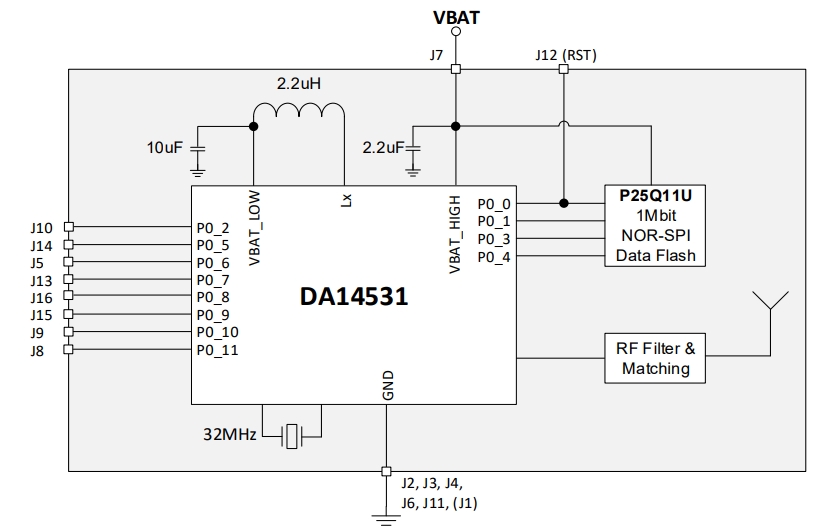

DA14531MOD-00F01002 Typical application Circuitry

DA14531MOD-00F01002

The DA14531MOD-00F01002 is a Bluetooth Low Energy (BLE) module based on the DA14531 SoC, designed for applications requiring compact size and low power consumption, such as wearable devices, IoT sensors, and smart home applications.

Application Scenarios:

A typical application of the DA14531MOD-00F01002 is in a wearable fitness tracker, where it can be used for wireless communication with a smartphone app to monitor and record fitness data.

Key Parameters:

- BLE Version: Bluetooth 5.1

- Core: 32-bit ARM Cortex-M0+

- Integrated Antenna: Yes

- Memory: 48 KB OTP, 24 KB RAM

- Supply Voltage: 1.8V to 3.6V

- Package: 12.5mm x 14.5mm x 2.2mm

Circuit Design for a Wearable Fitness Tracker:

1. Power Supply Connection: Connect the VBAT pin (pin 1) of the DA14531MOD-00F01002 to a 3V coin cell battery, ensuring a stable power supply for ultra-low power operation.

2. Heart Rate Sensor Interface: Connect a heart rate sensor to the GPIO pins (e.g., GPIO0 and GPIO1) for capturing fitness data.

3. Programming Interface: Connect the SWCLK and SWDIO pins (pins 5 and 6) to a programming/debugging tool for firmware development and debugging.

4. Antenna: Utilize the integrated antenna on the module for Bluetooth communication, ensuring proper orientation and placement for optimal signal strength.

5. Ground Connection: Connect the GND pin (pin 2) to the system ground to provide a common reference point.

Design Considerations:

- Battery Life: Implement power-saving features in the firmware and choose a low-power heart rate sensor to maximize battery life in the fitness tracker.

- Signal Range: Ensure the placement of the module and antenna provides sufficient Bluetooth signal range for reliable communication with the smartphone.

- Sensor Accuracy: Calibrate the heart rate sensor for accurate measurement of fitness data without false readings.

- Firmware Features: Develop firmware to handle BLE communication, sensor data processing, and user interface interactions for the fitness tracker.

- Wearable Comfort: Design the fitness tracker to be comfortable to wear, with consideration for the placement of the DA14531MOD-00F01002 module to avoid interference with body movements.

By carefully considering these factors and following the outlined circuit design, the DA14531MOD-00F01002 can be effectively used in wearable fitness trackers, providing reliable wireless connectivity and efficient power management for continuous fitness monitoring.

DA14531MOD-00F01002 information

DA14531MOD-00F01002 Specifications

Package/Case:
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SmartBond™
ProductStatus:
Active
RFFamily/Standard:
Bluetooth
Protocol:
Bluetooth v5.1
Modulation:
-
Frequency:
2.4GHz ~ 2.4835GHz
DataRate:
-
Power-Output:
2.2dBm
Sensitivity:
-93dBm
SerialInterfaces:
ADC, GPIO, I²C, SPI, UART
AntennaType:
Integrated, Trace
UtilizedIC/Part:
DA14531
MemorySize:
128kB Flash, 144kB ROM, 48kB RAM
Voltage-Supply:
1.8V ~ 3.3V
Current-Receiving:
2mA
Current-Transmitting:
4mA
MountingType:
Surface Mount
