Murata Electronics CSTNE10M0G550000R0

Part No.:: CSTNE10M0G550000R0

Manufacturer:: Murata Electronics

Package:: 3-SMD, Non-Standard

Datasheet:: CSTNE10M0G550000R0.pdf

Description:: CERAMIC RES 10.0000MHZ 33PF SMD

In Stock:: 3348

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSTNE10M0G550000R0 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
CERALOCK® CSTNE
ProductStatus:
Active
Type:
Ceramic
Frequency:
10 MHz
FrequencyStability:
±0.2%
FrequencyTolerance:
±0.5%
Features:
Built in Capacitor
Capacitance:
33 pF
Impedance:
40 Ohms
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
Size/Dimension:
3-SMD, Non-Standard

CSTNE10M0G550000R0 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSTNE10M0G550000R0 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSTNE10M0G550000R0 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSTNE10M0G550000R0 information

Views：

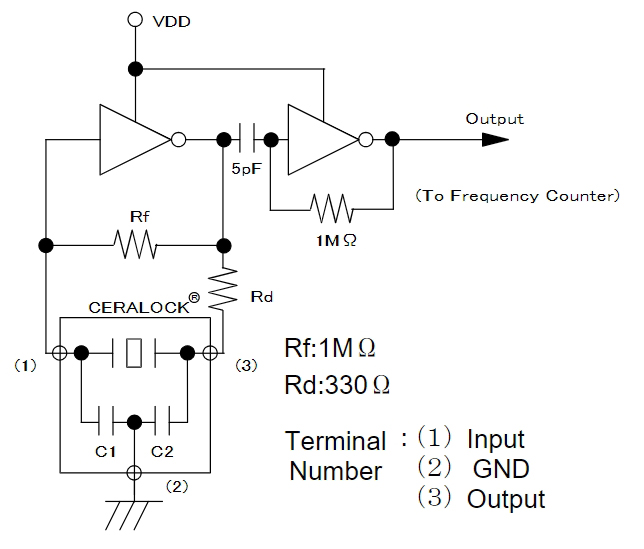

CSTNE10M0G550000R0 Typical application Circuitry

CSTNE10M0G550000R0

The CSTNE10M0G550000R0 is a ceramic resonator, a type of electronic component used primarily for frequency control and timing in electronic circuits. These resonators are favored in applications where size, cost, and power efficiency take precedence over the ultra-precise frequency stability of quartz crystals.

Application Scenarios

The CSTNE10M0G550000R0 is typically used in:

- Clock generation for microcontrollers and digital processors

- Frequency control in multimedia and gaming consoles, among other consumer electronics

- Timing applications in communication equipment

- Control systems in automotive electronics

Parameter Features

Key features of the CSTNE10M0G550000R0 include:

- Resonant Frequency: 10 MHz

- Built-in Load Capacitance: 15 pF

- Frequency Tolerance: ±0.5%

- Operating Temperature Range: Typically -20°C to +80°C

- Surface-Mount Device (SMD) package for compact integration

Circuit Connection - Clock Generation for Microcontrollers

Let's consider its application in providing a clock source for a microcontroller:

Connection to Oscillator Pins

- Location: Microcontroller's oscillator pins.

- Purpose: To supply a stable 10 MHz clock frequency to the microcontroller.

- Connection Method: Link one terminal of the CSTNE10M0G550000R0 to the oscillator input pin (OSC_IN) of the microcontroller and the other terminal to the oscillator output pin (OSC_OUT).

Noise Minimization

- Location: Close to the resonator.

- Purpose: To reduce noise and enhance signal stability.

- Connection Method: Attach a small capacitor (e.g., 22 pF) between each leg of the CSTNE10M0G550000R0 and the ground.

Power Supply Decoupling

- Location: Near the microcontroller's power supply pin.

- Goal: To keep the microcontroller's power supply constant and uncontaminated.

- Connectivity: Position a 0.1μF bypass capacitor in close proximity to the microcontroller's VCC pin.

Environmental Adaptation

- Location: On the printed circuit board (PCB).

- Purpose: To ensure stable operation under various environmental conditions.

- Connection Method: Position the resonator in a part of the PCB where it is less affected by temperature variations.

Design Considerations

When integrating the CSTNE10M0G550000R0 into circuit designs, important considerations include:

- Power Supply Quality: Make sure the resonator and microcontroller have a steady, noise-free power source.

- Load Capacitance Matching: Check that the microcontroller's oscillator circuit matches the built-in 15 pF load capacitance of the resonator.

- Operational Temperature Range: Account for the resonator's specified temperature range in the design, particularly in automotive or external environments.

- PCB Layout Strategy: Optimize the layout to minimize trace lengths between the resonator and the microcontroller, reducing potential signal interference.

In conclusion, the CSTNE10M0G550000R0 plays a vital role in applications like clock generation for microcontrollers, where its compact size, appropriate load capacitance, and stable frequency output are essential for the effective operation of electronic circuits. Proper placement, power management, and environmental considerations are key to leveraging its capabilities.
