Texas Instruments CDCE949PW

Part No.:: CDCE949PW

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: CDCE949PW.pdf

Description:: IC 4-PLL VCXO LVCMOS 24-TSSOP

In Stock:: 2919

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CDCE949PW Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
PLL Clock Generator
PLL:
Yes with Bypass
Input:
LVCMOS, Crystal
Output:
LVCMOS
NumberofCircuits:
1
Ratio-Input:Output:
1:9
Differential-Input:Output:
No/No
Frequency-Max:
230MHz
Divider/Multiplier:
Yes/No
Voltage-Supply:
1.7V ~ 1.9V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

CDCE949PW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CDCE949PW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CDCE949PW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CDCE949PW information

Views：

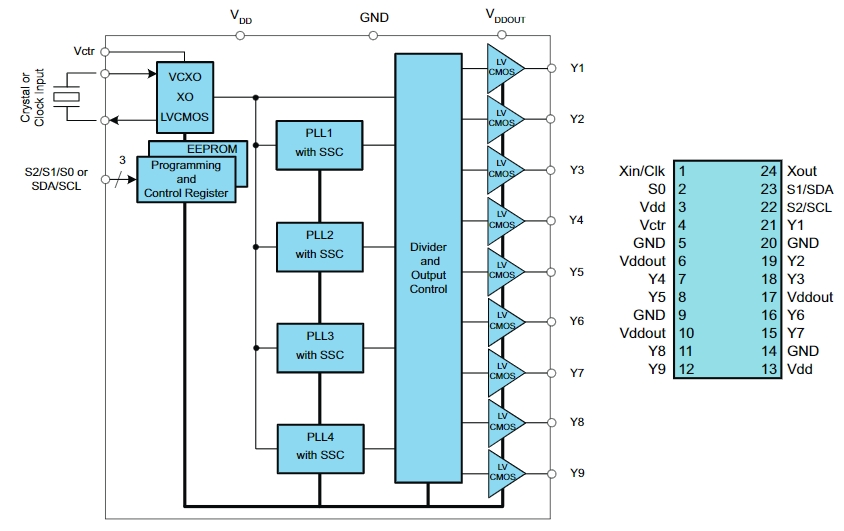

CDCE949PW Typical application Circuitry

CDCE949PW

A single input reference clock can be used to create several output clocks using the programmable clock synthesizer chip CDCE949PW. It is intended to offer accurate and adaptable clocking solutions for a variety of uses, such as digital multimedia, networking, and telecommunications.

Key Specifications of the CDCE949PW:

1. Input Frequency Range: Supports a wide range of input frequencies, from a few kHz to several MHz.

2. Output Frequency Range: Capable of generating output frequencies up to 230 MHz.

3. Programmability: Offers programmable dividers, phase-locked loop (PLL) multipliers, and output dividers to create a variety of clock frequencies.

4. Jitter Performance: Provides low-jitter output clocks, essential for high-speed digital systems.

5. Supply Voltage: Operates with a supply voltage of 3.3V.

Application Scenario: Network Router Clock Generation

In this example, we'll design a circuit using the CDCE949PW to generate multiple clock frequencies for a network router.

1. Reference Clock Input:

- Crystal Oscillator Connection (Pins 1, 2 - XI, XO): Connect a 25 MHz crystal oscillator between these pins to provide a stable reference clock to the chip.

2. Output Clocks Configuration:

- Output Clock 1 (Pin 21 - Y1): Configure this output to provide a 50 MHz clock for the router's CPU.

- Output Clock 2 (Pin 23 - Y3): Configure this output to provide a 125 MHz clock for the router's Ethernet PHY.

3. Power Supply and Grounding:

- Supply Voltage (Pin 11 - VDD): Connect to a 3.3V power source to power the chip.

- Ground Connection (Pins 5, 14, 24 - GND): Connect to the ground of the power supply.

4. Programming Interface:

- I2C Interface (Pins 6, 7 - SDA, SCL): Connect these pins to a microcontroller to configure the chip's settings via the I2C serial interface.

Circuit Design Considerations of the CDCE949PW:

When designing the circuit, consider the following factors:

1. Stable Power Supply: Use bypass capacitors near the VDD pin to filter out noise and ensure a stable power supply.

2. Reference Clock Quality: Select a high-quality crystal oscillator for the XI and XO pins to minimize jitter in the reference clock.

3. I2C Communication: Ensure proper pull-up resistors are used on the SDA and SCL lines for reliable I2C communication with the microcontroller.

4. Output Clock Routing: Minimize the length of traces carrying the output clocks to reduce signal degradation and crosstalk.

5. Thermal Management: Provide adequate cooling for the chip, especially when operating at high frequencies, to prevent overheating.

By using the CDCE949PW clock synthesizer in a network router, you can achieve precise and stable clocking for various subsystems, ensuring optimal performance and reliable operation.
