Infineon Technologies BTS716GNT

Part No.:: BTS716GNT

Manufacturer:: Infineon Technologies

Package:: PG-DSO-20-32

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-20

In Stock:: 2221

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BTS716GNT Specifications

Package/Case:
PG-DSO-20-32
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5.5V ~ 40V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2.3A
RdsOn(Typ):
110mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BTS716GNT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BTS716GNT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BTS716GNT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BTS716GNT information

Views：

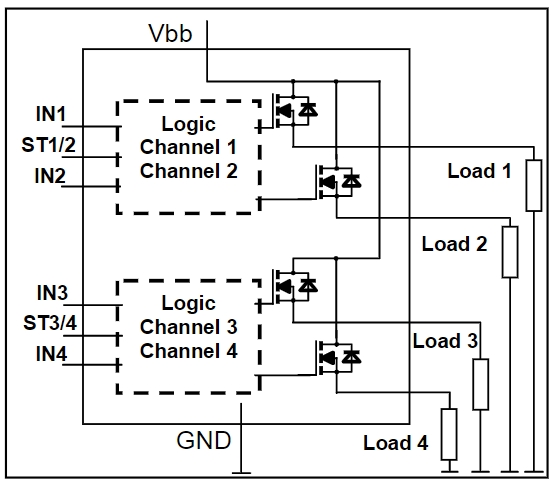

BTS716GNT Typical application Circuitry

BTS716GNT

The BTS716GNT is a type of high-side power switch IC, designed for controlling and switching high-current loads. It is commonly used in automotive and industrial control systems due to its ability to manage multiple loads with integrated protective features.

Application Scenario: Home Automation System

Use Case: Controlling various home appliances like lights, fans, and small motors.

Key Parameters of BTS716GNT:

- Quad High-Side Power Switch: Can control four separate loads independently.

- High Load Current Capability: Suitable for domestic appliances.

- Integrated Protection Features: Overcurrent, overvoltage, and thermal shutdown.

- Low Standby Current: Enhances energy efficiency when not active.

Circuit Design: Home Appliance Control

Detailed Circuit Configuration:

1. Power Source Connection: Connect a standard 12V DC power supply to the Vbb pin (Pin 1) of the BTS716GNT.

2. Appliance Connections: Link four appliances to OUT1 (Pin 2), OUT2 (Pin 3), OUT3 (Pin 4), and OUT4 (Pin 5).

3. System Grounding: Attach the GND pin (Pin 6) to the system's common ground.

4. Control Signal Wiring: Interface IN1 (Pin 7), IN2 (Pin 8), IN3 (Pin 9), and IN4 (Pin 10) with a microcontroller unit (MCU) for operation control.

Design Considerations:

1. Appliance Current Ratings: Ensure that the current requirements of each appliance are within the handling capacity of the BTS716GNT.

2. MCU Compatibility: Confirm the compatibility of the MCU's output signals with the IC's input specifications.

3. Thermal Management: Implement heat dissipation strategies due to potential heat generation.

4. Utilization of Protective Features: Use the IC's integrated protection to safeguard the system.

5. EMI Considerations: Employ EMI prevention techniques, especially in a home environment.

6. Voltage Stability: Ensure a stable power supply to prevent malfunctioning of the IC and connected appliances.

7. Diagnostic Feedback: Leverage any available diagnostic outputs for system monitoring.

8. Component Selection: Choose reliable and durable components suitable for home usage.

In this application, the BTS716GNT is employed for controlling multiple home appliances, showcasing its effectiveness in managing domestic electrical loads. The focus on ensuring appliance compatibility, thermal management, and EMI considerations highlights the IC's adaptability for home automation systems.
