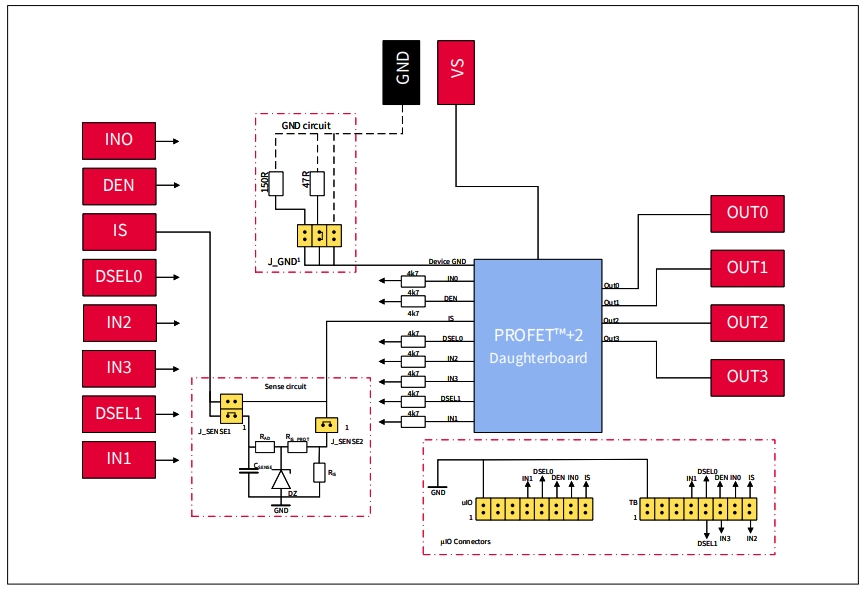

Key Features of the Daughter Board
- Pre-mounted BTS70302EPAXUMA1 dual-channel high-side power switch.
- Connection terminals for easy integration into test circuits.
- LED indicators for channel status visualization.
- Test points for measuring electrical parameters.
- Compatibility with Infineon's evaluation motherboard.
Application Scenario: Prototype Testing of an Automotive Lighting Control Circuit
Using the BTS70302EPADAUGHBRDTOBO1 daughter board, you can prototype and test an automotive lighting control circuit.
1. Board Setup: Mount the BTS70302EPADAUGHBRDTOBO1 daughterboard onto Infineon's evaluation motherboard or connect it to a custom test setup.
2. Power Supply Connection: Apply a supply voltage (5.5V to 40V) to the designated Vbb terminal on the daughter board.
3. Load Connections: Connect automotive lighting loads (e.g., headlights, taillights) to the output terminals (Out1 and Out2) on the daughterboard.
4. Control Signal Application: Apply control signals from a microcontroller to the input terminals (In1 and In2) on the daughterboard to switch the lights on and off.
5. Status Monitoring: Observe the LED indicators on the daughterboard to monitor the status of each channel (on or off).
Circuit Design Considerations of the BTS70302EPADAUGHBRDTOBO1
- Power Supply Stability: Ensure that the supply voltage is stable and within the specified range of the BTS70302EPAXUMA1 IC.
- Load Current: Verify that the current drawn by the lighting loads does not exceed the maximum continuous load current rating of the BTS70302EPAXUMA1 IC.
- Thermal Management: Monitor the temperature of the IC during operation and provide adequate cooling if necessary.
- Protection: Implement protection mechanisms in the test circuit, such as overcurrent protection and flyback diodes, to enhance the reliability of the prototype.
Using the BTS70302EPADAUGHBRDTOBO1 daughter board allows designers to efficiently prototype and test automotive lighting control circuits with the BTS70302EPAXUMA1 high-side power switch. When designing and testing such circuits, careful consideration of factors such as power supply stability, load current, thermal management, and protection is crucial to ensure optimal performance and reliability of the prototype.
