Infineon Technologies BTS6143DNT

Part No.:: BTS6143DNT

Manufacturer:: Infineon Technologies

Package:: PG-TO252-5-11

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 TO252-5

In Stock:: 3753

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BTS6143DNT Specifications

Package/Case:
PG-TO252-5-11
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100, PROFET®
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5.5V ~ 38V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
41A
RdsOn(Typ):
8mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BTS6143DNT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BTS6143DNT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BTS6143DNT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BTS6143DNT information

Views：

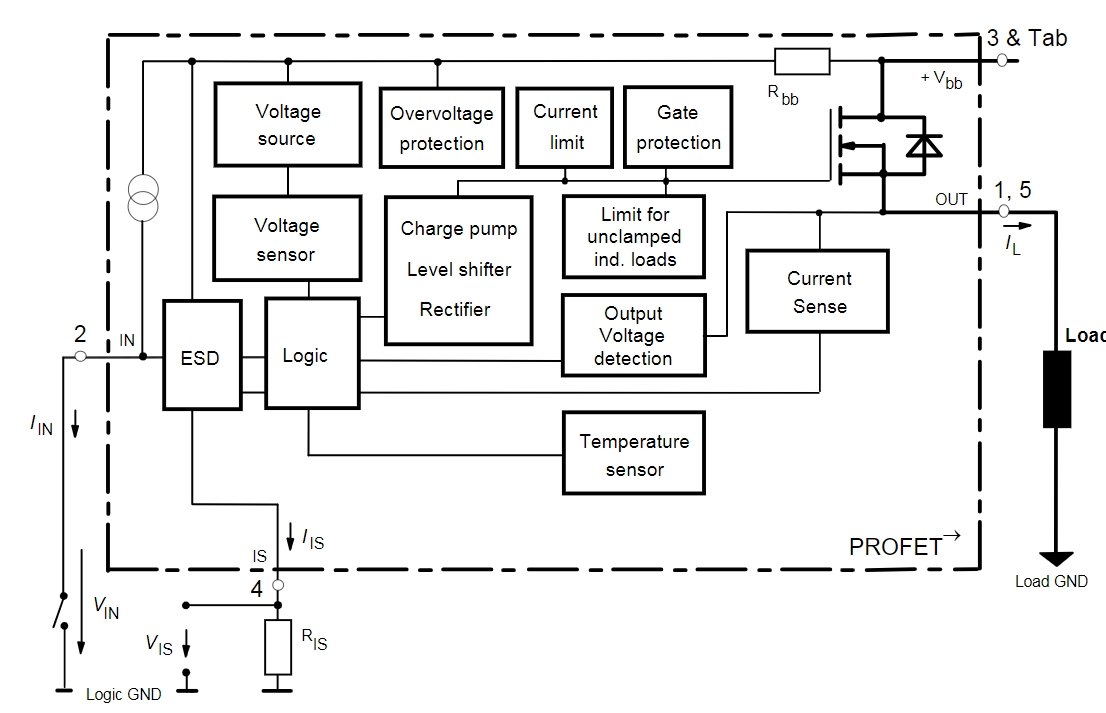

BTS6143DNT Typical application Circuitry

BTS6143DNT

The BTS6143DNT is a high-side power switch IC, typically used for controlling high-current loads. It's often found in automotive and industrial applications where precise control over power distribution and load management is essential.

Application Scenario: Automotive Fuel Pump Control

Use Case: Regulating the operation of a fuel pump in a vehicle.

Key Parameters of BTS6143DNT:

- High-Side Switch: Ideal for switching high-current loads.

- Load Current Capacity: Capable of handling significant current, suitable for automotive fuel pumps.

- Overload and Overtemperature Protection: Provides safety features to prevent damage.

- Low Standby Current: Minimizes battery drain when not in active operation.

Circuit Design: Vehicle Fuel Pump Management System

Detailed Circuit Configuration:

1. Battery Connection: Connect the positive terminal of the vehicle's battery to the Vbb pin (Pin 1) of the BTS6143DNT.

2. Fuel Pump Connection: Attach the output (OUT – Pin 2) to the fuel pump.

3. Grounding: Link the GND pin (Pin 3) to the vehicle's chassis ground.

4. Control Signal: Interface the control input (IN – Pin 4) to the Engine Control Unit (ECU) for regulating the fuel pump.

Design Considerations:

1. Current Rating Check: Ensure the fuel pump's current requirement is within the load capacity of the BTS6143DNT.

2. ECU Signal Compatibility: Confirm compatibility of the control signal from the ECU with the input specifications of the BTS6143DNT.

3. Thermal Management: Implement measures to dissipate heat generated by the switch during operation.

4. Circuit Safety Features: Leverage the overtemperature and overload protection features of the IC for enhanced safety.

5. Electromagnetic Interference (EMI): Design to mitigate EMI, crucial in automotive electronics.

6. Voltage Stability: Ensure a stable and clean power supply to the switch, especially under varying engine loads.

7. Diagnostic Feedback: Use any diagnostic output from the IC for system monitoring and troubleshooting.

8. Automotive Standards Compliance: Adhere to automotive standards for electronic components in terms of durability and reliability.

In this application, the BTS6143DNT is employed to control a fuel pump in a vehicle, showcasing its capability to handle high current loads and its integration with vehicle systems like the ECU. This example emphasizes the importance of considering automotive standards, EMI, and safety features in circuit design, underlining the IC's suitability for critical automotive applications.
