Infineon Technologies BTS5210GNT

Part No.:: BTS5210GNT

Manufacturer:: Infineon Technologies

Package:: PG-DSO-14-37

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-14

In Stock:: 3785

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BTS5210GNT Specifications

Package/Case:
PG-DSO-14-37
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100, PROFET®
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5.5V ~ 40V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.8A
RdsOn(Typ):
110mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BTS5210GNT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BTS5210GNT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BTS5210GNT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BTS5210GNT information

Views：

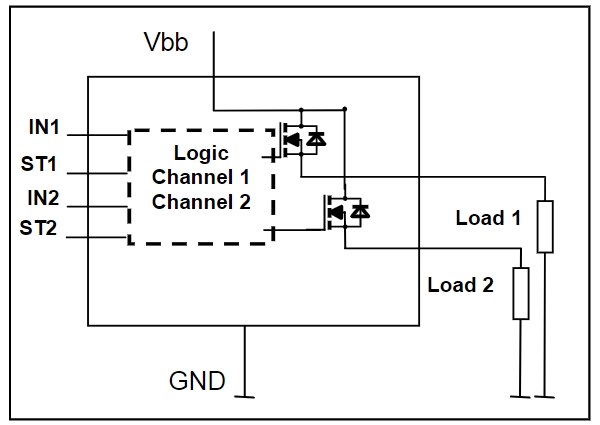

BTS5210GNT Typical application Circuitry

BTS5210GNT

The BTS5210GNT is likely a variant of the BTS5210G, which is a dual-channel high-side power switch IC, typically used in automotive and industrial environments for controlling resistive, inductive, and capacitive loads. Assuming the BTS5210GNT shares similar characteristics with the BTS5210G, it is part of the PROFET™ family, renowned for integrating power transistors with protective features.

Application Scenario: Automotive Seat Heater Control

Use Case: Controlling the heating elements in a car's seat heating system.

Key Parameters of BTS5210GNT:

- Dual High-Side Switch: Capable of controlling two separate loads independently.

- High Load Current: Suitable for handling the current requirements of seat heaters.

- Protection Features: Overcurrent, overvoltage, and thermal shutdown functionalities.

- Low Quiescent Current: Reduces battery drain when inactive.

Circuit Design Example: Car Seat Heater Control System

Detailed Circuit Design:

1. Vehicle Battery Connection: Attach the car's 12V battery positive terminal to the Vbb pin (Pin 1) of the BTS5210GNT.

2. Heating Element Connections: Connect OUT1 (Pin 2) to the driver's seat heater, and OUT2 (Pin 4) to the passenger's seat heater.

3. Grounding: Link the GND pin (Pin 3) to the car's chassis ground.

4. Control Activation: Interface IN1 (Pin 5) and IN2 (Pin 6) with the seat heater control switches or a microcontroller.

Design Considerations:

1. Current Rating: Ensure that the seat heaters' current draw is within the IC's capacity.

2. Control Logic Compatibility: Confirm that the control unit's signal levels correctly operate the IN1 and IN2 pins.

3. Heat Dissipation: Address the IC's heat dissipation, especially when operating at higher currents.

4. Protection Utilization: Make full use of the IC's integrated protection features for electrical safety.

5. EMC Considerations: Implement measures to minimize electromagnetic interference in the automotive environment.

6. Stable Power Supply: Ensure that the power supply to the IC is stable, with minimal voltage fluctuations.

7. Diagnostics and Feedback: Leverage the IC's diagnostic output (if available) for system status monitoring.

8. Connector and Cable Selection: Opt for robust connectors and cables suited for automotive applications.

In this application, the BTS5210GNT is utilized to control the heating elements of a car's seat heating system efficiently and safely. The design focuses on ensuring compatibility with the car's electrical system, leveraging the IC's safety features, and ensuring the reliability and comfort of the seat heating feature. The consideration of specific automotive requirements like EMC, stable power supply, and robust connectors highlights the IC's adaptability for automotive applications.
