Infineon Technologies BTS452RXT

Part No.:: BTS452RXT

Manufacturer:: Infineon Technologies

Package:: PG-TO252-5-11

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 TO252-5

In Stock:: 2031

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BTS452RXT Specifications

Package/Case:
PG-TO252-5-11
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100, miniPROFET®
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
6V ~ 52V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.8A
RdsOn(Typ):
150mOhm
InputType:
Non-Inverting
Features:
Auto Restart, Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BTS452RXT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BTS452RXT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BTS452RXT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BTS452RXT information

Views：

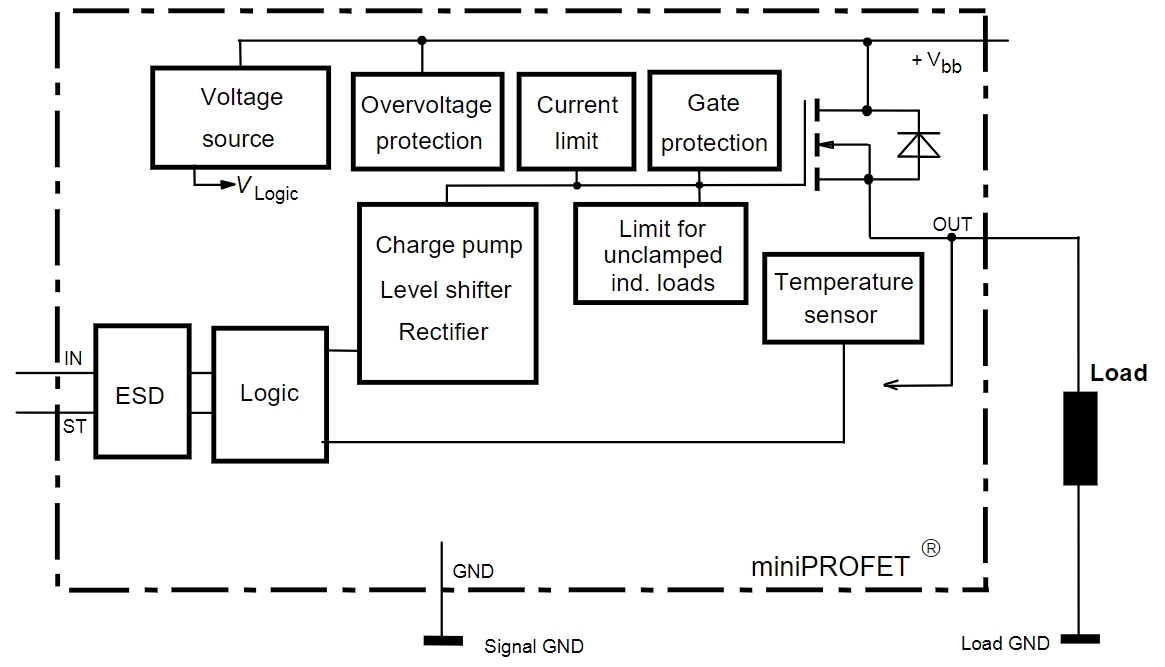

BTS452RXT Typical application Circuitry

BTS452RXT

The BTS452RXT is a high-side power switch integrated circuit (IC) designed for various automotive and industrial applications. It is specifically tailored for high-current switching and protection in demanding environments.

Key Features of BTS452RXT:

1. High-Side Switching: The BTS452RXT specializes in high-side power switching, making it suitable for controlling loads in a wide range of applications.

2. Integrated Power MOSFET: This IC incorporates a robust power MOSFET, enabling efficient and reliable handling of high-current switching requirements.

3. Wide Voltage Range: The BTS452RXT operates over a broad voltage range, typically from 5V to 58V, providing versatility in different voltage setups.

4. Protection Features: It includes essential protection mechanisms such as overcurrent, overtemperature, and short-circuit protection, enhancing system safety.

5. Diagnostic Feedback: The IC offers diagnostic feedback capabilities for real-time monitoring and fault identification within the system.

Now, let's design a detailed circuit for an automotive fuel pump control application using the BTS452RXT (pinout labeled as 1, 2, 3, and 4):

Application: Automotive Fuel Pump Control Circuit

Circuit Description:

The BTS452RXT will serve as a high-side switch to control the fuel pump in a vehicle.

1. Power Supply: Connect pin 1 (VBAT) to the vehicle's 12V power supply.

2. Fuel Pump: Connect the fuel pump load to pin 2 (OUT) of the BTS452RXT.

3. Control Input: Connect pin 3 (IN) to a microcontroller's GPIO pin to manage the fuel pump activation.

4. Ground: Connect pin 4 (GND) to the vehicle's ground.

Design Considerations:

1. Current Handling: Ensure that the BTS452RXT can safely handle the current required for the fuel pump operation.

2. Heat Management: Implement appropriate heat dissipation measures, such as a heat sink, if needed, to manage any heat generated during high-current switching.

3. Protection: Consider using protective diodes or fuses to safeguard the circuit against reverse voltage and overcurrent situations.

4. Control Signal Compatibility: Verify that the microcontroller's GPIO can effectively drive the control input (pin 3) of the BTS452RXT.

5. PCB Layout: Pay careful attention to the PCB layout to minimize stray inductance and capacitance, which can impact switching performance.

6. EMI/EMC Compliance: Address electromagnetic interference and electromagnetic compatibility requirements for automotive applications.

7. Diagnostic Feedback Utilization: Leverage the diagnostic feedback feature for continuous monitoring of the system's health.

8. Testing and Validation: Conduct thorough testing and validation to ensure the reliability and safety of the fuel pump control circuit.

In summary, the BTS452RXT is a versatile high-side switch IC suitable for a wide range of applications, including automotive fuel pump control. When designing a circuit with this IC, critical considerations include current handling, heat management, protection, control signal compatibility, PCB layout, EMI/EMC compliance, diagnostic feedback utilization, and comprehensive testing. These factors are crucial to the successful and dependable operation of the fuel pump control circuit.
