Name: BTA24-600BWRG
Brand: STMicroelectronics
SKU: BTA24-600BWRG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

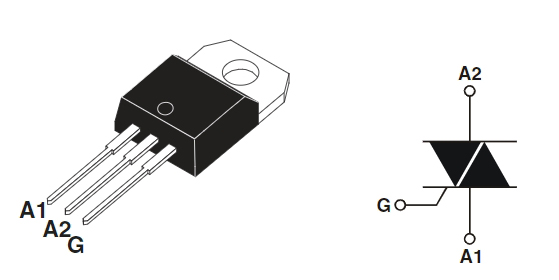

STMicroelectronics BTA24-600BWRG

Part No.:: BTA24-600BWRG

Manufacturer:: STMicroelectronics

Package:: TO-220-3

Datasheet:: BTA24-600BWRG.pdf

Description:: TRIAC ALTERNISTOR 600V TO220AB

In Stock:: 2573

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BTA24-600BWRG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BTA24-600BWRG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BTA24-600BWRG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

BTA24-600BWRG Typical application Circuitry

BTA24-600BWRG

The BTA24-600BWRG is a triac, which is a type of semiconductor device widely used in AC power control applications. It allows for control of high current and high voltage AC loads from a microcontroller or other control devices, making it suitable for a variety of applications including motor control, lighting dimming, and heater control.

Application Scenarios

BTA24-600BWRG is particularly useful in applications requiring control over AC power, such as:

- Lighting Control Systems: For dimming lights or controlling the on/off state of large lighting installations.

- Motor Control: For speed regulation of AC motors in tools and appliances.

- Heating Control: Used in systems that require accurate temperature control, such as electric heaters.

Parameter Features

The BTA24-600BWRG has several key features that make it suitable for controlling AC loads:

- High Voltage Capability: It can handle voltages up to 600V, making it suitable for mains voltage applications.

- High Current Rating: It can manage heavy loads with a current rating of 25A.

- Gate Sensitivity: It has a sensitive gate that can be triggered with low voltage and current, allowing for direct interface with microcontroller outputs.

Example Circuit Connection: AC Light Dimming

1. Gate Triggering: Connect a microcontroller output pin to the gate (G) of the BTA24-600BWRG through a resistor (typically around 330Ω). This resistor limits the current into the gate to a safe level.

2. Main AC Supply Connection: Connect one terminal of the AC supply to one of the main terminals (MT1) of the BTA24-600BWRG.

3. Load Connection: Connect the other terminal of the load (e.g., an AC lamp) to the second main terminal (MT2) of the BTA24-600BWRG. After that, the lamp's other terminal is connected to the AC supply's other terminal once more.

4. Snubber Circuit: It's often necessary to connect a snubber circuit across MT1 and MT2 to protect the BTA24-600BWRG from voltage spikes and to ensure proper turning off. This snubber circuit typically consists of a series resistor and capacitor.

Design Considerations

When designing circuits with the BTA24-600BWRG, several factors must be considered:

- Load Type: The characteristics of the load (resistive, inductive) influence the choice of protection components.

- Gate Drive Circuitry: Ensure the gate drive voltage and current do not exceed the BTA24-600BWRG specifications.

- Thermal Management: Since the BTA24-600BWRG can handle high currents, it's crucial to manage the thermal aspects to prevent overheating. Thermal pads or heat sinks might be used in this.

- Isolation: In applications connected to the mains supply, proper isolation between the control circuitry (e.g., microcontroller) and the high-voltage circuit is vital for safety.

Designing with the BTA24-600BWRG in an AC light dimming application involves careful consideration of the gate drive, load characteristics, thermal management, and safety isolation. Proper component selection and circuit design ensure reliable operation and extend the lifespan of both the BTA24-600BWRG and the controlled load.

BTA24-600BWRG information

BTA24-600BWRG Specifications

Packaging:
Tube
Series:
Snubberless™
ProductStatus:
Active
TriacType:
Alternistor - Snubberless
Voltage-OffState:
600 V
Current-OnState(It(RMS))(Max):
25 A
Voltage-GateTrigger(Vgt)(Max):
1.3 V
Current-NonRepSurge5060Hz(Itsm):
250A, 260A
Current-GateTrigger(Igt)(Max):
50 mA
Current-Hold(Ih)(Max):
75 mA
Configuration:
Single
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Through Hole
