What is the Additional Feature ?

Name: BSP772TXUMA1
Brand: Infineon Technologies
SKU: BSP772TXUMA1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies BSP772TXUMA1

Part No.:: BSP772TXUMA1

Manufacturer:: Infineon Technologies

Package:: PG-DSO-8-6

Datasheet:: BSP772TXUMA1.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 PDSO-8

In Stock:: 2051

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSP772TXUMA1 Specifications

Package/Case:
PG-DSO-8-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
miniPROFET®
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5V ~ 34V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2.6A
RdsOn(Typ):
50mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSP772TXUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSP772TXUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSP772TXUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSP772TXUMA1 information

Views：

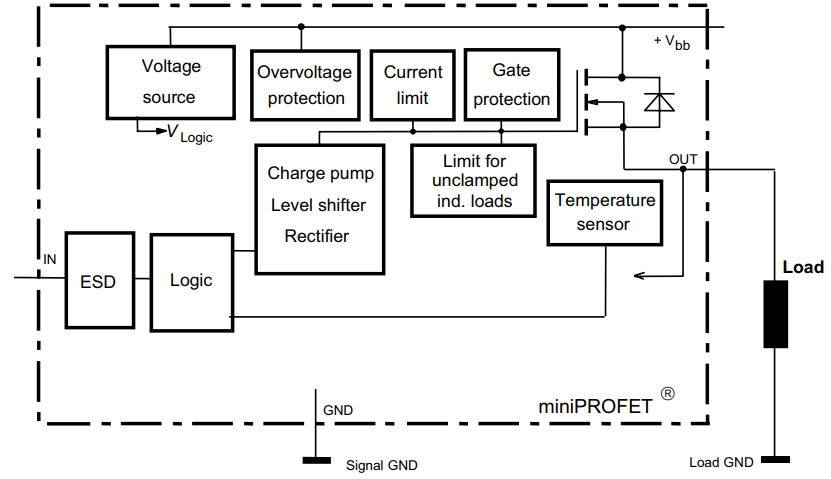

BSP772TXUMA1 Typical application Circuitry

BSP772TXUMA1

The BSP772TXUMA1 is an integrated circuit that functions as a high-side power switch. This type of chip is particularly useful in applications that require the control of power delivery to loads, especially when the load cannot be directly grounded. Known for its ability to handle high currents and its integrated protective features, it is widely used in automotive and industrial control systems.

Functional Role

High-Side Power Switch: The BSP772TXUMA1 operates as a high-side power switch, suitable for applications that need effective control over the power supply to grounded loads.

Application Scenarios

Automotive Electrical Systems: Frequently used in automotive applications for controlling electronic components such as lights and motors.

Industrial Automation Systems: Also employed in industrial settings for controlling actuators, solenoid valves, or other electrically powered devices.

Key Parameters

High Current Handling Capacity: Designed to handle high load currents, making it suitable for applications with substantial power requirements.

Integrated Protection Features: Equipped with built-in overcurrent and overtemperature protection, enhancing safety and reliability.

Circuit Example: Control of Automotive Motors

Selected Application: Illustrating a circuit for controlling automotive motors using the BSP772TXUMA1.

Detailed Circuit Construction

1. Power Source Connection: Attach the vehicle's battery or an appropriate power source to the circuit.

2. BSP772TXUMA1 Integration: Implement the BSP772TXUMA1 by connecting its output pin (Pin 1) to the automotive motor.

3. Input Signal Application: Apply a control signal to the input pin (Pin 2) for regulating the motor's operation.

4. Grounding the Device: Connect the ground pin (Pin 3) of the BSP772TXUMA1 to the vehicle's chassis ground.

5. Motor Connection: Link the automotive motor to the BSP772TXUMA1, completing the circuit with the power source.

Design Considerations

When designing circuits with the BSP772TXUMA1, these aspects should be taken into account:

1. Efficient Heat Management: Implement heat dissipation strategies due to high current flow through the switch.

2. Stable Control Signal Provision: Ensure the control signal is stable and precise for reliable operation of the automotive motor.

3. Load Compatibility Verification: The BSP772TXUMA1's specifications should align with the electrical characteristics of the automotive motor.

4. Enhanced Circuit Protection: Incorporate additional safety measures to complement the integrated protective features.

5. Automotive Electrical Noise Minimization: Design the circuit to minimize interference from the automotive electrical environment.

6. Durability in Automotive Conditions: Ensure the circuit's robustness under automotive environmental conditions like temperature fluctuations and vibrations.

7. Leveraging Integrated Protection Features: Utilize the protective features of the BSP772TXUMA1 for enhanced system reliability.

8. Parasitic Effect Minimization: Aim to reduce parasitic inductance and capacitance in the circuit design to improve switch performance.

In summary, the BSP772TXUMA1 High-Side Power Switch is a vital component in automotive and industrial electronics, particularly effective for applications like automotive motor control and industrial automation systems. Its design focuses on high current handling and integrated protective features. When incorporating this switch into a circuit, considerations such as thermal management, signal stability, and enhanced circuit protection are crucial to ensure optimal performance and reliability.
