Infineon Technologies BSP772TNUMA1

Part No.:: BSP772TNUMA1

Manufacturer:: Infineon Technologies

Package:: PG-DSO-8-24

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-8

In Stock:: 2718

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSP772TNUMA1 Specifications

Package/Case:
PG-DSO-8-24
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5V ~ 34V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
2.6A
RdsOn(Typ):
50mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSP772TNUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSP772TNUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSP772TNUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSP772TNUMA1 information

Views：

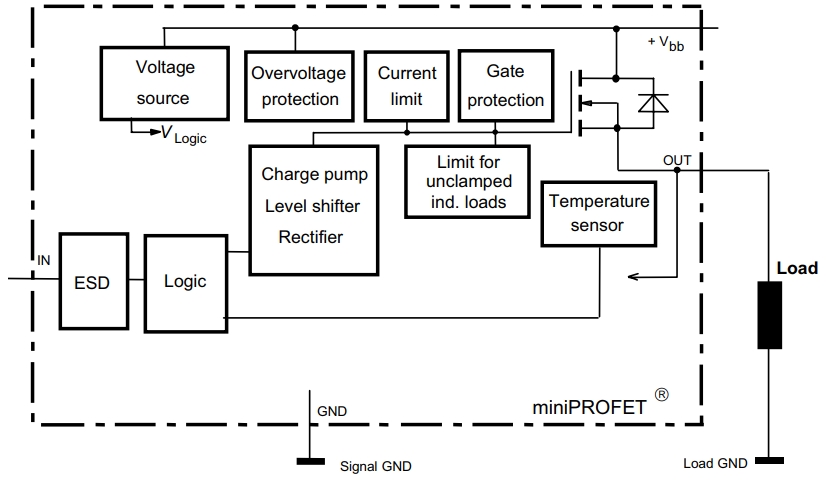

BSP772TNUMA1 Typical application Circuitry

BSP772TNUMA1

The BSP772TNUMA1 is an integrated circuit designed as a high-side power switch. This chip is primarily used in scenarios requiring the control of power delivery to various loads, especially when these loads cannot be directly grounded. Notable for its capability to handle high currents and its integrated protective features, it's extensively used in automotive and industrial control systems.

Functional Characteristics

- High-Side Power Switch: The BSP772TNUMA1 functions as a high-side power switch, suitable for applications that need efficient control over the power supply to loads while maintaining the load's grounded state.

Application Scenarios

- Automotive Electrical Systems: Often used in automotive applications for controlling lights, motors, and other electronic components.

- Industrial Automation Controls: It's also applied in industrial settings for managing power to actuators or solenoid valves.

Key Parameters

- High Current Handling Capability: Designed to manage high load currents, making it suitable for applications with substantial power demands.

- Integrated Protective Features: Comes with built-in over-current and over-temperature protection, enhancing safety and reliability.

Circuit Example: Automotive Light Control System

- Selected Application: Detailing a circuit for controlling an automotive light system using the BSP772TNUMA1.

Detailed Circuit Configuration

1. Power Source Connection: Connect the car's battery or an appropriate power source to the circuit.

2. BSP772TNUMA1 Integration: Implement the BSP772TNUMA1 by connecting its output pin (Pin 1) to the automotive lighting system.

3. Input Signal Application: Attach a control signal to the input pin (Pin 2) to regulate the light system's operation.

4. Grounding the Device: Link the ground pin (Pin 3) of the BSP772TNUMA1 to the vehicle's chassis ground.

5. Load Connection: Connect the automotive lighting system to the BSP772TNUMA1, completing the circuit with the power source.

Design Considerations

When designing circuits with the BSP772TNUMA1, consider the following:

1. Effective Heat Management: Implement strategies for heat dissipation due to the high current flow through the switch.

2. Stable Control Signal Delivery: Ensure the control signal is stable and accurate for reliable operation of the automotive lighting.

3. Load Compatibility Assessment: The BSP772TNUMA1's specifications should align with the electrical requirements of the automotive lighting system.

4. Enhanced Circuit Protection: Even with integrated protection, additional safety measures can be beneficial.

5. Automotive Electrical Noise Reduction: Design the circuit to minimize interference from the automotive electrical environment.

6. Durability in Automotive Conditions: Ensure the circuit's robustness under automotive conditions, including temperature variations and mechanical vibrations.

7. Utilization of Integrated Protection Features: Leverage the protective features of the BSP772TNUMA1 for enhanced system reliability.

8. Parasitic Inductance and Capacitance Minimization: Aim to reduce parasitic effects in the circuit design to improve switch performance.

In summary, the BSP772TNUMA1 High-Side Power Switch is a vital component in both automotive and industrial electronics, particularly effective for applications like automotive lighting control and industrial automation systems. Its design focuses on high current handling and integrated protective features. When incorporating this switch into a circuit, considerations such as thermal management, signal stability, and circuit protection are crucial to ensure optimal performance and reliability.
