Infineon Technologies BSP75NHUMA1

Part No.:: BSP75NHUMA1

Manufacturer:: Infineon Technologies

Package:: PG-SOT223-4

Datasheet:: BSP75NHUMA1.pdf

Description:: IC PWR SWTCH N-CHAN 1:1 SOT223-4

In Stock:: 2628

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSP75NHUMA1 Specifications

Package/Case:
PG-SOT223-4
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HITFET®
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
60V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
700mA
RdsOn(Typ):
430mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSP75NHUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSP75NHUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSP75NHUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSP75NHUMA1 information

Views：

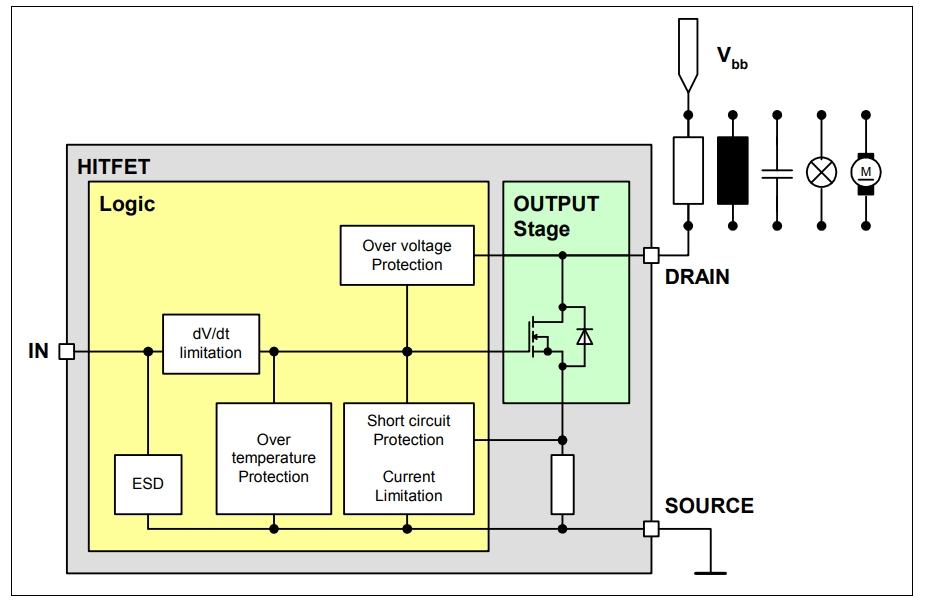

BSP75NHUMA1 Typical application Circuitry

BSP75NHUMA1

The BSP75NHUMA1 is an integrated circuit functioning as a low-side power switch. This kind of chip is especially useful in applications where control of power delivery to a load is required, particularly when switching the load to the ground is necessary. It is known for its moderate current handling capabilities and integrated protection features, making it suitable for a range of automotive and industrial control systems.

Functional Role

- Low-Side Power Switch: The BSP75NHUMA1 operates as a low-side power switch, ideal for applications that require efficient control of power to loads that need to be grounded.

Application Scenarios

- Automotive Interior Lighting: Commonly used in automotive systems for controlling interior lighting.

- Industrial Control Circuits: Also employed in industrial settings for controlling actuators or solenoid valves.

Key Parameters

- Moderate Current Handling: Designed to manage moderate load currents, suitable for a variety of control applications.

- Integrated Protection Mechanisms: Comes with built-in features for over-current and over-temperature protection.

Circuit Example: Automotive Interior Lighting Control

Selected Application: Illustrating a circuit for controlling automotive interior lighting using the BSP75NHUMA1.

Detailed Circuit Design

1. Power Source Connection: Connect the car's battery or an appropriate power source to the circuit.

2. BSP75NHUMA1 Implementation: Integrate the BSP75NHUMA1 by connecting its output pin (Pin 1) to the ground side of the interior lighting system.

3. Input Signal Configuration: Attach a control signal to the input pin (Pin 2) to manage the lighting system's operation.

4. Grounding the Device: Link the ground pin (Pin 3) of the BSP75NHUMA1 to the vehicle's chassis ground.

5. Load Connection: Connect the interior lighting system to the BSP75NHUMA1, completing the circuit with the power source.

Design Considerations

When designing circuits with the BSP75NHUMA1, these factors are crucial:

1. Effective Heat Management: Implement strategies for managing the heat generated due to current flow through the switch.

2. Stable Control Signal Delivery: Ensure the control signal is stable and accurate for reliable operation of the lighting system.

3. Load Compatibility Assessment: The BSP75NHUMA1's specifications should be compatible with the electrical characteristics of the interior lighting.

4. Enhanced Circuit Protection: Incorporate additional protective measures to enhance system safety, despite the integrated features.

5. Automotive Electrical Noise Reduction: Design the circuit to minimize interference from the automotive electrical environment.

6. Durability in Automotive Conditions: Ensure the circuit's robustness under automotive conditions, including temperature variations and vibrations.

7. Utilization of Integrated Protection Features: Leverage the protective features of the BSP75NHUMA1 for enhanced reliability.

8. Minimization of Parasitic Effects: Aim to reduce parasitic inductance and capacitance in the circuit to improve switch performance.

In summary, the BSP75NHUMA1 Low-Side Power Switch is a vital component in both automotive and industrial electronics, particularly effective for applications like automotive interior lighting control and industrial actuator operation. Its design focuses on moderate current handling and integrated protection features. When integrating this switch into a circuit, considerations such as thermal management, signal stability, and circuit protection are essential to ensure optimal performance and reliability.
