Infineon Technologies BSP752TNUMA1

Part No.:: BSP752TNUMA1

Manufacturer:: Infineon Technologies

Package:: PG-DSO-8-24

Datasheet:

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-8

In Stock:: 2791

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSP752TNUMA1 Specifications

Package/Case:
PG-DSO-8-24
Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
6V ~ 52V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.3A
RdsOn(Typ):
150mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSP752TNUMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSP752TNUMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSP752TNUMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSP752TNUMA1 information

Views：

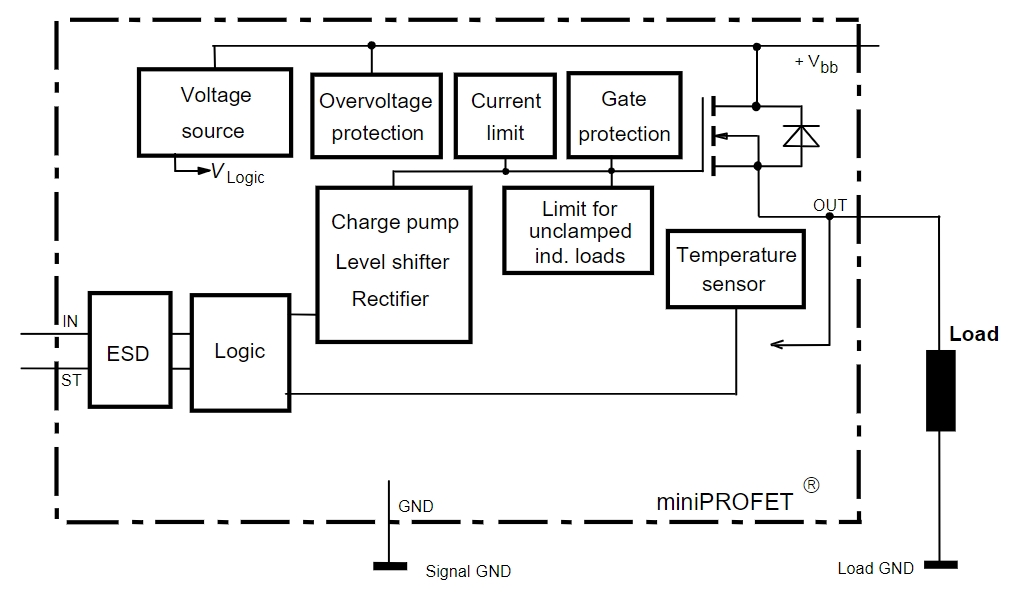

BSP752TNUMA1 Typical application Circuitry

BSP752TNUMA1

The BSP752TNUMA1 is an integrated circuit classified as a high-side power switch. This type of chip is particularly useful in applications requiring the control of power delivery to loads, especially in scenarios where direct grounding of the load is impractical. Due to its high current handling capacity and integrated protective features, it's widely used in automotive and industrial systems.

Functional Description

- High-Side Power Switch: The BSP752TNUMA1 serves as a high-side power switch, which is crucial for applications that demand efficient control over the power supply to grounded loads.

Application Scenarios

- Automotive Lighting Control: It's commonly employed in automotive applications for controlling lighting systems, both internal and external.

- Industrial Automation: Power to motors and actuators in automation systems is controlled in industrial settings.

Key Parameters

- High Load Current Handling: The BSP752TNUMA1 is designed to manage high load currents, suitable for heavy-duty applications.

- Integrated Protective Features: Includes built-in protection against over-temperature and over-current conditions, enhancing its reliability.

Circuit Example: Automotive External Lighting System

- Selected Application: Outlining a circuit for controlling an automotive external lighting system using the BSP752TNUMA1.

Detailed Circuit Layout

1. Power Source Integration: Connect the vehicle's battery or a suitable power source to the circuit.

2. BSP752TNUMA1 Implementation: Integrate the BSP752TNUMA1 by connecting its output pin (Pin 1) to the automotive lighting system.

3. Control Signal Configuration: Attach a control signal to the input pin (Pin 2) for managing the operation of the lighting system.

4. Grounding the Device: Link the ground pin (Pin 3) of the BSP752TNUMA1 to the vehicle's chassis ground.

5. Status Feedback Connection: Utilize the status feedback pin (Pin 4) to monitor the switch's operational status.

Design Considerations

When designing circuits with the BSP752TNUMA1, consider the following:

1. Efficient Heat Dissipation: Implement heat management strategies due to the high current flow through the switch.

2. Stable Control Signal: Ensure the control signal is stable and accurate for the reliable operation of the lighting system.

3. Load Compatibility Check: The BSP752TNUMA1's specifications should match the electrical characteristics of the automotive lighting system.

4. Enhanced Circuit Protection: Even with integrated protection, additional safety measures can be beneficial.

5. Minimization of Electrical Interference: Automotive environments are prone to electrical noise, necessitating design measures to minimize this interference.

6. Durability in Automotive Conditions: Design the circuit to withstand automotive environmental conditions, including temperature fluctuations and vibrations.

7. Diagnostic Capabilities Utilization: Leverage the diagnostic features of the BSP752TNUMA1 for maintenance and troubleshooting.

8. Parasitic Effect Reduction: Minimize parasitic inductance and capacitance in the circuit design to enhance switch performance.

In summary, the BSP752TNUMA1 High-Side Power Switch is a pivotal component in automotive and industrial electronics, particularly suitable for applications like automotive lighting control and industrial automation. Its design focuses on high-current handling and integrated protective features. When incorporating this switch into a circuit, considerations such as thermal management, signal stability, and enhanced circuit protection are essential to ensure optimal performance and reliability.
