Texas Instruments BQ24070RHLR

Part No.:: BQ24070RHLR

Manufacturer:: Texas Instruments

Package:: 20-VFQFN Exposed Pad

Datasheet:: BQ24070RHLR.pdf

Description:: IC BATT CHG LI-ION 1CELL 20VQFN

In Stock:: 2155

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BQ24070RHLR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
BatteryChemistry:
Lithium Ion/Polymer
NumberofCells:
1
Current-Charging:
Constant - Programmable
ProgrammableFeatures:
Current, Timer
FaultProtection:
Over Temperature, Reverse Current, Short Circuit
ChargeCurrent-Max:
1.5A
BatteryPackVoltage:
4.2V
Voltage-Supply(Max):
16V
Interface:
-
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

BQ24070RHLR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BQ24070RHLR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BQ24070RHLR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BQ24070RHLR information

Views：

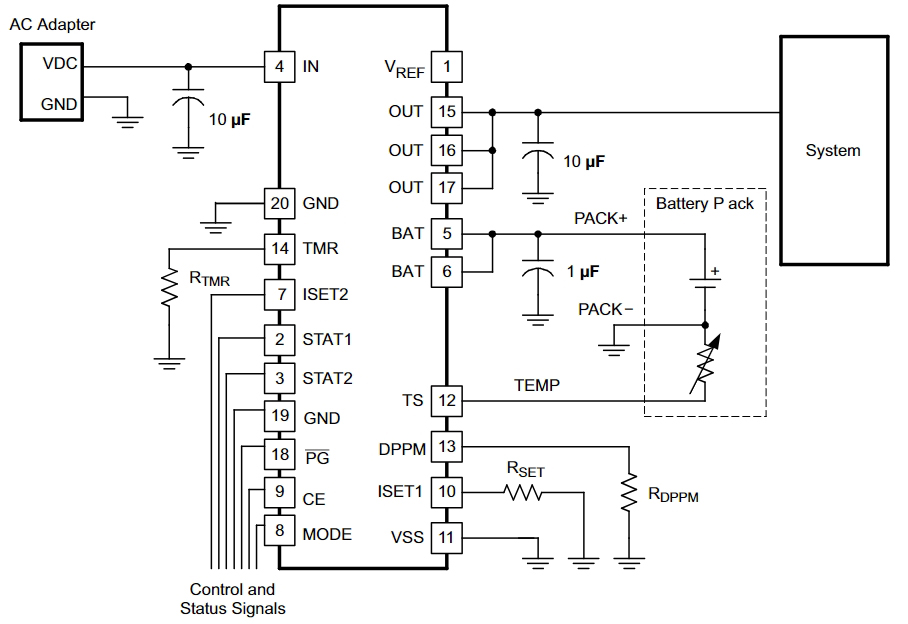

BQ24070RHLR Typical application Circuitry

BQ24070RHLR

The BQ24070RHLR is a highly integrated lithium-ion or lithium-polymer battery charge management IC designed for a wide range of portable applications. This chip features integrated power FETs and current sensor, high-accuracy voltage and current regulation, and charge status indication, making it a versatile solution for efficient battery management.

Application Scenarios

The BQ24070RHLR is perfectly suited for portable devices that require efficient, safe, and reliable battery charging, such as smartphones, portable speakers, handheld gaming devices, and other personal electronics that utilize single-cell lithium-ion or lithium-polymer batteries.

Parameter Features

- Programmable Charge Current: Supports adjustable charging current up to 2A, allowing for fast charging of the battery.

- Wide Input Voltage Range: Operates with input voltages from 4.35V to 16V, compatible with USB sources and higher voltage adapters.

- Integrated Power FETs: Contains internal power FETs for charging and discharging, reducing external component count.

- Charge Status Outputs: Provides outputs for LED or other indicators to display charge status and fault conditions.

Circuit Connection Example: Smartphone Battery Charging

In this scenario, we will design a battery charging circuit for a smartphone using the BQ24070RHLR.

1.Power Supply Connection:

- VIN Pin (Pin 10): Connect this pin to the positive terminal of your external power source, such as a USB charger or wall adapter.

2.Battery Connection:

- BAT Pin (Pin 7): This pin connects directly to the positive terminal of the lithium-ion or lithium-polymer battery that you're charging.

3.System Load Connection:

- SYS Pin (Pin 6): This pin provides power to the system load. It can be connected to the system power rail of the smartphone, ensuring the device operates smoothly during charging.

4.Charge Management and Tracking:

- ISET Pin (Pin 4): To adjust the charging current, place a resistor between this pin and ground. The resistor's value dictates how much current is used to charge the battery.

- TS Pin (Pin 8): This pin can be connected to a temperature sensor placed near or on the battery. It's used for temperature monitoring during the charging process to ensure safety.

Design Considerations:

- Power Source Compatibility: Verify that the power supply is able to provide enough voltage and current to meet the BQ24070RHLR specifications for the best possible charging.

- Thermal Management: Given the potential for significant power dissipation, especially at higher charging currents, implementing proper thermal management on the PCB is crucial.

- Battery Protection: While the BQ24070RHLR includes multiple safety features, additional protection mechanisms such as overvoltage, undervoltage, and short-circuit protection at the system level might be necessary to safeguard the battery and device.

Incorporating the BQ24070RHLR into a smartphone's power management system provides an efficient, compact, and safe solution for charging lithium-ion or lithium-polymer batteries, enhancing the device's usability and user experience.
