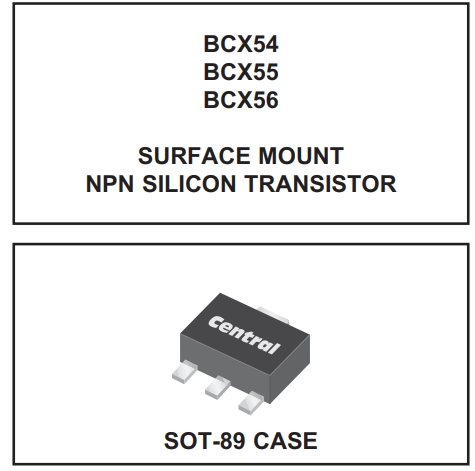

Central Semiconductor Corp BCX56-16 TR

Part No.:: BCX56-16 TR

Manufacturer:: Central Semiconductor Corp

Package:: TO-243AA

Datasheet:: BCX56-16 TR.pdf

Description:: TRANS NPN 80V 1A SOT89

In Stock:: 3670

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BCX56-16 TR Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
TransistorType:
NPN
Current-Collector(Ic)(Max):
1 A
Voltage-CollectorEmitterBreakdown(Max):
80 V
VceSaturation(Max)@IbIc:
500mV @ 50mA, 500mA
Current-CollectorCutoff(Max):
100nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
100 @ 150mA, 2V
Power-Max:
1.3 W
Frequency-Transition:
130MHz
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount
