Nexperia USA Inc. BCP56-QX

Part No.:: BCP56-QX

Manufacturer:: Nexperia USA Inc.

Package:: TO-261-4, TO-261AA

Datasheet:: BCP56-QX.pdf

Description:: TRANS NPN 80V 1A SOT223

In Stock:: 2335

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BCP56-QX Specifications

Packaging:
Bulk
Series:
Automotive, AEC-Q101, BCP56-Q
ProductStatus:
Active
TransistorType:
NPN
Current-Collector(Ic)(Max):
1 A
Voltage-CollectorEmitterBreakdown(Max):
80 V
VceSaturation(Max)@IbIc:
500mV @ 50mA, 500mA
Current-CollectorCutoff(Max):
100nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
63 @ 150mA, 2V
Power-Max:
650 mW
Frequency-Transition:
180MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

BCP56-QX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BCP56-QX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BCP56-QX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BCP56-QX information

Views：

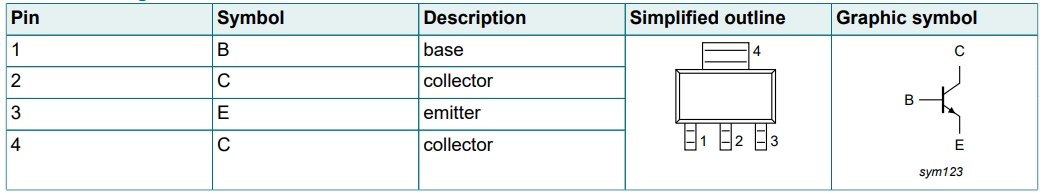

BCP56-QX Typical application Circuitry

BCP56-QX

The BCP56-QX is a medium power NPN bipolar junction transistor (BJT) commonly used in applications requiring moderate power amplification and switching capabilities.

Applications: The BCP56-QX finds its use in audio amplifiers, motor control circuits, and as a switch in power management systems.

Parameter Characteristics: The BCP56-QX typically features a collector-emitter voltage (Vceo) of 80V, a collector current (Ic) of 1A, and a power dissipation (Pd) of 1.25W. Its high current gain (hFE) and fast switching capabilities make it suitable for various applications.

Circuit Design for Motor Control:

1. Motor Connection: Connect the collector of the BCP56-QX to one terminal of the DC motor, with the other motor terminal connected to the power supply (Vcc).

2. Base Drive Circuit: Connect a resistor (Rb) to the base of the BCP56-QX to limit the base current. The other end of Rb should be connected to a control signal, such as a PWM output from a microcontroller.

3. Emitter Grounding: Connect the emitter of the BCP56-QX directly to the ground.

4. Flyback Diode: Place a diode (D1) in parallel with the motor, with the cathode connected to the collector of the BCP56-QX and the anode to the ground. This diode protects the transistor from voltage spikes caused by the inductive load of the motor.

Design Considerations:

- Heat Dissipation: Implement proper heat sinking for the BCP56-QX to manage power dissipation and prevent overheating.

- Base Current Limiting: Select an appropriate value for the base resistor (Rb) to ensure sufficient base current for saturation while avoiding excessive current that could damage the transistor.

- Inductive Load Protection: The flyback diode (D1) is crucial for protecting the BCP56-QX from voltage spikes generated by the motor's inductive nature.

- Switching Frequency: Consider the switching speed of the BCP56-QX when designing PWM control circuits to ensure efficient motor speed control.

In summary, the BCP56-QX is a versatile BJT used in various medium power applications, including motor control circuits. When designing a circuit with the BCP56-QX, it is important to consider heat dissipation, base current limiting, inductive load protection, and switching frequency to ensure reliable and efficient operation.
