Infineon Technologies AUIPS7091GTR

Part No.:: AUIPS7091GTR

Manufacturer:: Infineon Technologies

Package:: PG-DSO-8-906

Datasheet:: AUIPS7091GTR.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 DSO-8

In Stock:: 2749

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AUIPS7091GTR Specifications

Package/Case:
PG-DSO-8-906
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
6V ~ 35V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.5A
RdsOn(Typ):
80mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

AUIPS7091GTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AUIPS7091GTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AUIPS7091GTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AUIPS7091GTR information

Views：

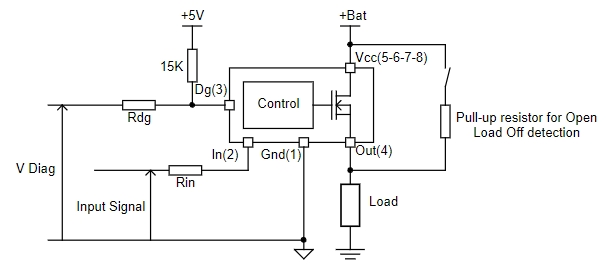

AUIPS7091GTR Typical application Circuitry

AUIPS7091GTR

The AUIPS7091GTR is a specialized integrated circuit designed for specific functionalities in electronic applications. Let's explore its functionalities, application scenarios, parameter features, and a detailed circuit design approach for a selected application.

Functionality of AUIPS7091GTR

The AUIPS7091GTR primarily functions as a high-side power switch. This type of component is essential for controlling power flow, particularly in high current and high-speed switching applications. It is designed to handle significant power loads efficiently and reliably.

Application Scenarios

1. Automotive Systems: Ideal for managing power in automotive applications, such as controlling motors or lights.

2. Industrial Machinery: Suitable for high-power switching in industrial equipment.

3. Power Management Systems: In systems requiring efficient and reliable power switching.

Parameter Characteristics

1. High Current Handling: Capable of managing large currents, making it suitable for high-load applications.

2. Fast Switching: Designed for rapid switching, essential in time-sensitive applications.

3. Protection Features: Includes safeguards like over-current, over-temperature, and short-circuit protection.

4. Low Power Dissipation: Optimized to minimize power loss, enhancing system efficiency.

Circuit Design: Automotive Lighting System

1. Power Source Connection: Connect the vehicle's power source (battery) to the Drain pin of AUIPS7091GTR.

2. Control Interface: Link a microcontroller or control unit output to the Gate pin, enabling the AUIPS7091GTR to switch on or off.

3. Load Integration: Attach the automotive light to the Source pin of AUIPS7091GTR.

4. Heat Management: Implement heat sinking for the AUIPS7091GTR to manage heat generated by high current.

5. Surge Protection: Incorporate protective components like diodes to guard against voltage spikes in automotive settings.

Design Considerations

1. Voltage Compatibility: Ensure the circuit's voltage is within the AUIPS7091GTR's operating range.

2. Thermal Considerations: Plan for efficient heat dissipation to prevent overheating.

3. Load Characteristics: Confirm that the connected load matches the AUIPS7091GTR's handling capabilities.

4. Circuit Layout: Design the layout to minimize interference and maximize performance, especially important in automotive environments.

In summary, the AUIPS7091GTR is a robust and versatile high-side power switch, highly suitable for automotive systems, industrial machinery, and power management applications. When designing circuits with the AUIPS7091GTR, careful attention must be given to voltage compatibility, thermal management, load specifications, and circuit layout for optimal performance.
