Broadcom Limited ASSR-1611-501E

Part No.:: ASSR-1611-501E

Manufacturer:: Broadcom Limited

Package:: 6-SMD (0.300, 7.62mm)

Datasheet:: ASSR-1611-501E.pdf

Description:: SSR RELAY SPST-NO 2.5A 0-60V

In Stock:: 3336

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ASSR-1611-501E Specifications

Package/Case:
6-SMD (0.300, 7.62mm)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ASSR
ProductStatus:
Active
MountingType:
Surface Mount
Circuit:
SPST-NO (1 Form A)
OutputType:
AC, DC
Voltage-Input:
1.3VDC
Voltage-Load:
0 V ~ 60 V
LoadCurrent:
2.5 A
On-StateResistance(Max):
100 mOhms
TerminationStyle:
Gull Wing

ASSR-1611-501E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ASSR-1611-501E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ASSR-1611-501E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ASSR-1611-501E information

Views：

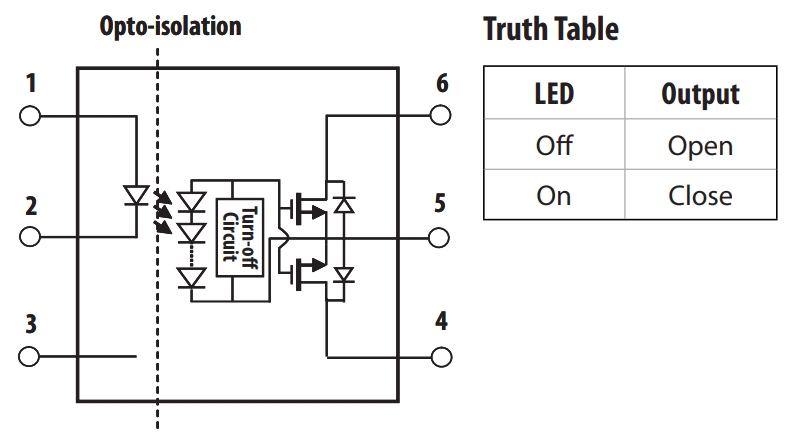

ASSR-1611-501E Typical application Circuitry

ASSR-1611-501E

The ASSR-1611-501E is a Solid State Relay (SSR) chip, widely utilized for its ability to provide efficient, reliable switching in electronic circuits without the mechanical parts found in traditional relays.

Application Scenarios

Solid State Relays like the ASSR-1611-501E are commonly used in applications requiring high-speed switching, long life, and high reliability. These include industrial automation, home appliances, and automotive electronics, where they control larger power loads.

Parameter Features

- Optically Isolated: The ASSR-1611-501E offers optical isolation, providing protection against high voltage and ensuring safe operation.

- Low On-Resistance: Ensures efficient switching with minimal power loss.

- Compact Size: Offers high performance in a small package, suitable for space-constrained applications.

Specific Application Scenario: Industrial Automation Control

In an industrial automation control system, the ASSR-1611-501E can be used to control a high-power load. Here's how to integrate it into such a system:

1. Input Connection: Connect the input control signal to the Anode (A) and Cathode (K) pins of the ASSR-1611-501E. This signal will activate the SSR.

2. Load Connection: Connect one terminal of the load to the output pin (usually marked as 'Load') of the ASSR-1611-501E and the other terminal to the power supply.

3. Power Supply: Ensure the power supply voltage matches the load and the SSR's specifications.

Circuit Design Considerations

- Heat Management: SSRs like the ASSR-1611-501E may generate heat during operation, requiring proper thermal management.

- Driving Current: The input driving current should be adequate to reliably trigger the SSR.

- Load Requirements: Ensure the load does not exceed the maximum switching capacity of the ASSR-1611-501E.

In conclusion, the ASSR-1611-501E is an essential component in systems where reliable, high-speed switching of electrical loads is required, such as in industrial automation. Appropriate design considerations for driving current, load capacity, and heat management are crucial for its effective use.
