What is the Additional Feature ?

Name: ADXL354CEZ-RL7
Brand: Analog Devices Inc.
SKU: ADXL354CEZ-RL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADXL354CEZ-RL7

Part No.:: ADXL354CEZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 14-CLCC

Datasheet:: ADXL354CEZ-RL7.pdf

Description:: ACCELEROMETER 2-8G ANALOG 14CLCC

In Stock:: 3067

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADXL354CEZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADXL354CEZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADXL354CEZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

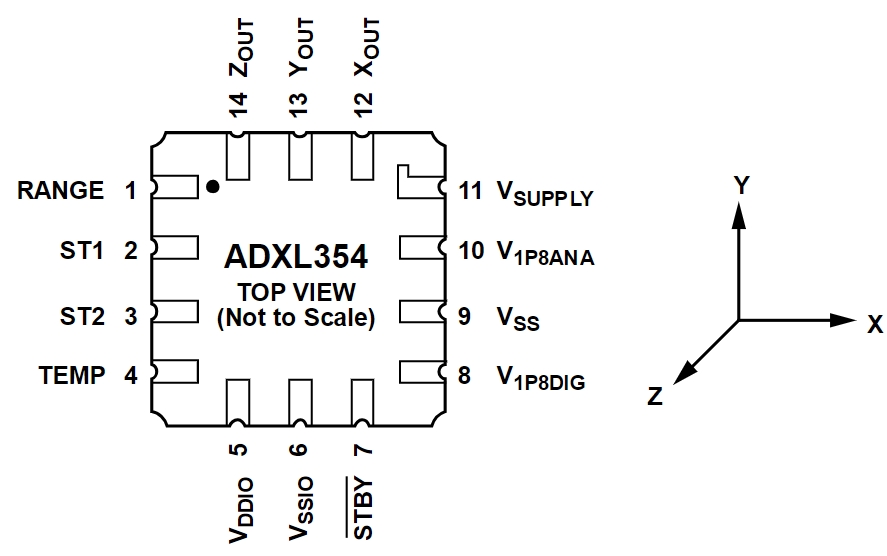

ADXL354CEZ-RL7 Typical application Circuitry

ADXL354CEZ-RL7

The ADXL354CEZ-RL7 is an advanced, low noise, analog output, triaxial accelerometer produced by Analog Devices. It excels in applications requiring precise motion detection and measurement across three axes with a low level of noise, thanks to its high-precision analog output. This device is well-suited for a broad range of applications, including but not limited to, structural health monitoring, seismic detection, and industrial equipment monitoring.

Application Scenario:

An exemplary application for the ADXL354CEZ-RL7 is in structural health monitoring systems, where it can be used to detect and analyze vibrations and movements within buildings or other structures, aiding in the early detection of potential structural failures or weaknesses.

Parameter Features:

- Selectable Measurement Ranges: The ADXL354CEZ-RL7 offers selectable g-ranges (±2g, ±4g, and ±8g), enabling it to be customized for the sensitivity needs of various applications.

- Low Noise Performance: It features exceptionally low noise levels, which is crucial for applications requiring high-resolution vibration or motion detection.

- Power Efficiency: The device operates with low power consumption, making it ideal for battery-operated or remote monitoring applications.

- Analog Outputs: Provides individual analog voltage outputs for each axis (X, Y, and Z), facilitating straightforward integration with analog signal processing systems or analog-to-digital converters for digital processing needs.

Circuit Connection Example:

For a structural health monitoring system, integrating the ADXL354CEZ-RL7 involves several detailed steps:

- Stable Power Supply: Connect the Vcc pin of the ADXL354CEZ-RL7 to a regulated +3.3V power source. It's imperative to ensure that the power supply is devoid of noise, as fluctuations can significantly affect measurement accuracy. Ground (GND) should be connected to the system's ground plane.

- Analog Output Connections: The ADXL354CEZ-RL7's X, Y, and Z outputs are connected to the analog inputs of a data acquisition system or microcontroller equipped with an ADC. For example, the X-output can be connected to ADC Channel 1, Y-output to ADC Channel 2, and Z-output to ADC Channel 3, ensuring each axis is accurately monitored.

- Use of Decoupling Capacitors: To minimize noise on the power supply line, place a 0.1µF ceramic capacitor close to the Vcc and GND pins of the ADXL354CEZ-RL7. Additionally, a 10µF capacitor may be used to provide low-frequency stability.

- Environmental Considerations: Implement appropriate environmental protection for the ADXL354CEZ-RL7, especially if the structural health monitoring system is exposed to outdoor conditions. This might include weatherproof enclosures or conformal coating for the PCB.

Design Considerations:

- Orientation and Placement: The accurate placement and orientation of the ADXL354CEZ-RL7 are critical. The device should be mounted in a manner that aligns its sensing axes with the expected directions of movement or vibration within the structure.

- Temperature Compensation: Since temperature variations can affect readings, consider implementing temperature compensation algorithms to adjust the accelerometer's output, ensuring consistent performance across a range of environmental conditions.

- Shielding and Routing: To protect the analog signals from EMI, use shielded cables for connections and carefully plan the PCB layout to separate the accelerometer signals from noisy power lines or high-speed digital signals.

- Power Supply Quality: Given the low-noise nature of the ADXL354CEZ-RL7, maintaining a clean and stable power supply is paramount to avoid introducing additional noise into the measurements.

By carefully addressing these considerations, the ADXL354CEZ-RL7 can be effectively utilized in structural health monitoring systems, providing reliable and accurate data for assessing the integrity and safety of buildings and other structures.

ADXL354CEZ-RL7 information

ADXL354CEZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Analog
Axis:
X, Y, Z
AccelerationRange:
±2g, 8g
Sensitivity(LSB/g):
-
Sensitivity(mV/g):
400 (±2g) ~ 100 (±8g)
Bandwidth:
1.5kHz
OutputType:
Analog Voltage
Voltage-Supply:
2.25V ~ 3.6V
Features:
Standby Mode
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount
