Name: ADXL1001BCPZ
Brand: Analog Devices Inc.
SKU: ADXL1001BCPZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADXL1001BCPZ

Part No.:: ADXL1001BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 32-FQFN Exposed Pad, CSP

Datasheet:: ADXL1001BCPZ.pdf

Description:: ACCELEROMETER ANALOG 32LFCSP

In Stock:: 3125

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADXL1001BCPZ Specifications

Packaging:
Tray
Series:
-
ProductStatus:
Active
Type:
Analog
Axis:
X
AccelerationRange:
-
Sensitivity(LSB/g):
-
Sensitivity(mV/g):
-
Bandwidth:
21kHz
OutputType:
Analog Voltage
Voltage-Supply:
3.3V ~ 5.25V
Features:
-
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ADXL1001BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADXL1001BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADXL1001BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADXL1001BCPZ information

Views：

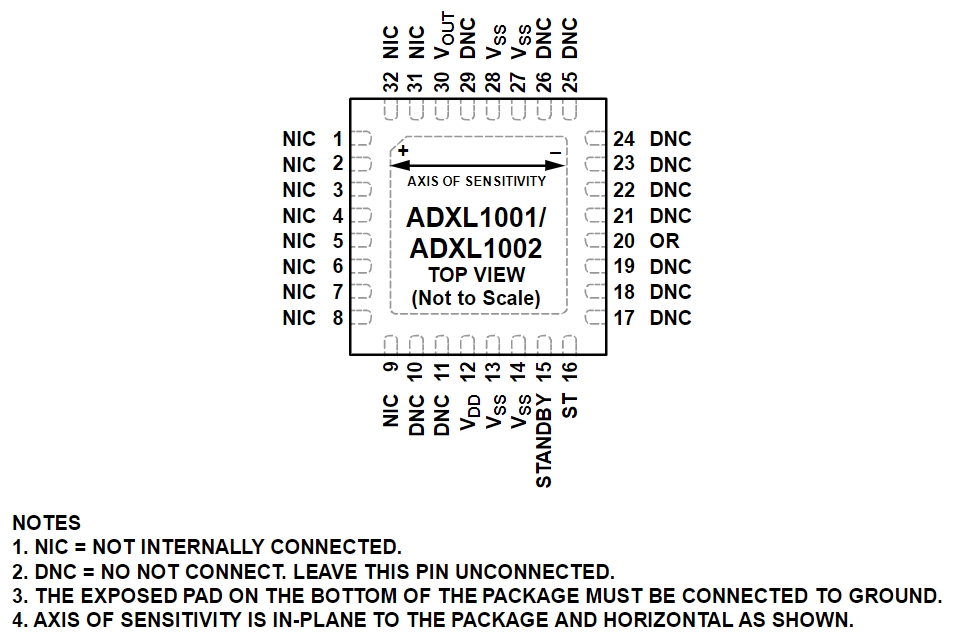

ADXL1001BCPZ Typical application Circuitry

ADXL1001BCPZ

The ADXL1001BCPZ is a high-performance, single-axis accelerometer designed by Analog Devices. It is specifically tailored for vibration measurement applications, making it an excellent choice for condition monitoring and predictive maintenance of industrial machinery. This accelerometer is capable of detecting accelerations up to ±100 g with a wide frequency range, which is crucial for identifying various types of mechanical faults.

Application Scenario:

A common application for the ADXL1001BCPZ is in the health monitoring of rotating machinery, such as motors and turbines. In this scenario, the ADXL1001BCPZ can be used to detect imbalances, misalignments, and bearing faults by analyzing vibration patterns.

Parameter Features:

- Range: The ADXL1001BCPZ offers a measurement range of ±100 g, which is sufficient for capturing high-impact events and subtle vibrations in industrial equipment.

- Bandwidth: It provides a wide bandwidth, up to 11 kHz, enabling the capture of high-frequency vibrations that are indicative of specific mechanical issues.

- Low Noise: Features low noise density, enhancing the precision of vibration measurements and making it easier to detect early signs of machinery degradation.

- Output: Analog voltage output that linearly corresponds to the acceleration experienced by the sensor, facilitating easy integration with signal processing circuits.

Circuit Connection Example:

Integrating the ADXL1001BCPZ into a system for monitoring the health of a motor involves several critical steps:

- Power Supply Connections: The ADXL1001BCPZ requires a stable power supply. Connect the VDD pin to a +3.3V power source, ensuring the source is clean and free of noise for accurate measurements. The system's ground should be linked to the ground (GND) pin.

- Analog Output Reading: The ADXL1001BCPZ provides an analog output that represents the measured acceleration. This output can be directly linked to an analog-to-digital converter (ADC) for digital processing or to the analog input of a data acquisition system (DAQ). For instance, connect the analog output pin to the ADC channel on a microcontroller or a DAQ device.

- Decoupling Capacitor: To ensure steady operation and filter out power supply noise, place a decoupling capacitor (such as 0.1 µF) next to the VDD and GND pins of the ADXL1001BCPZ.

- Mounting: Securely mount the ADXL1001BCPZ onto the motor housing or a surface close to the bearings. The orientation should be such that the sensing axis aligns with the direction in which vibration measurement is most critical.

Design Considerations:

- Signal Integrity: To preserve the integrity of the analog signal, use shielded cables for connections and keep the signal paths short. Additionally, consider the layout to minimize interference from other electronic components.

- Power Supply Quality: The power supply's quality may have an impact on the ADXL1001BCPZ's measurement accuracy. Utilize a stable and clean power source, and implement power conditioning if necessary.

- Environmental Factors: The environment can have an impact on vibration sensors, such as the ADXL1001BCPZ. Ensure that the device is mounted in a manner that protects it from extreme temperatures, humidity, and mechanical shocks that are not part of the measured vibrations.

- Calibration: To ensure accurate measurements, it may be necessary to calibrate the ADXL1001BCPZ periodically against known vibration standards, especially if the sensor is used in critical applications.

By carefully considering these guidelines, the ADXL1001BCPZ can be effectively integrated into machinery health monitoring systems, enabling early detection of potential failures and reducing downtime in industrial settings.
