Name: ADV7391BCPZ
Brand: Analog Devices Inc.
SKU: ADV7391BCPZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADV7391BCPZ

Part No.:: ADV7391BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 32-VFQFN Exposed Pad, CSP

Datasheet:

Description:: IC ENCODER VIDEO W/DAC 32LFCSP

In Stock:: 11960

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADV7391BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADV7391BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADV7391BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

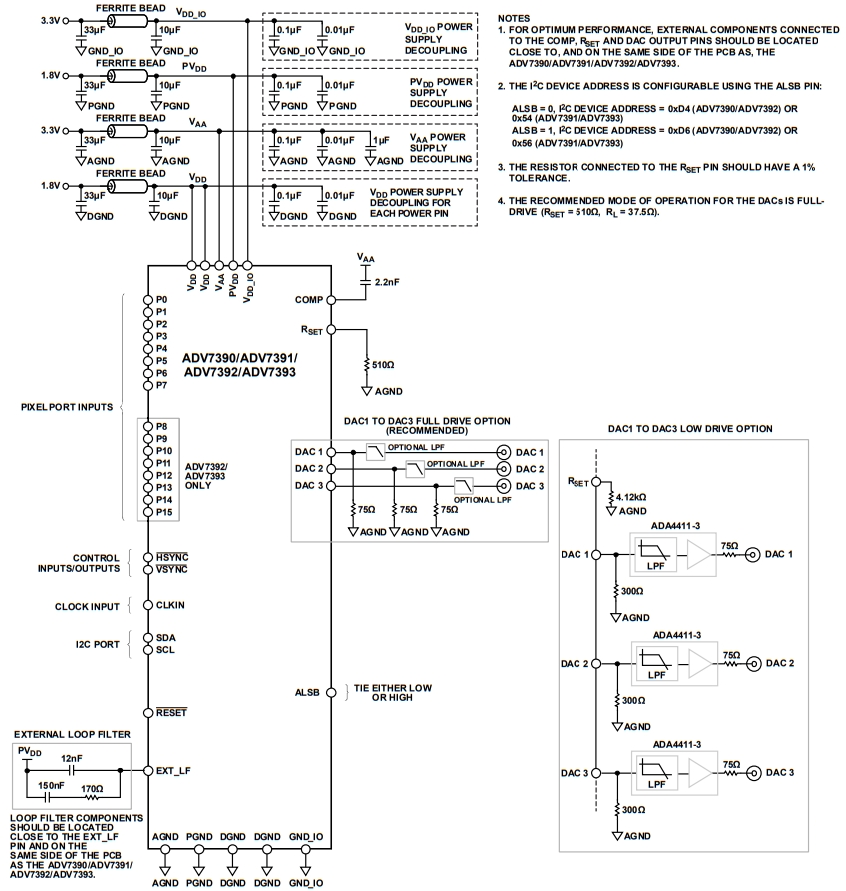

ADV7391BCPZ Typical application Circuitry

ADV7391BCPZ

ADV7391BCPZ is a high-performance, digital-to-analog video encoder that converts digital video signals into standard analog outputs such as composite, S-video, and component video. It's designed for use in video systems where high-quality analog video output is required.

Function and Application Scenarios

1. Digital Video Recording Systems: ADV7391BCPZ is used in DVRs and other digital recording systems to convert digital video into analog formats for playback on standard TVs or monitors.

2. Video Broadcast Equipment: In broadcasting, it's used to encode digital video signals into analog for transmission or recording.

Parameter Features

- Multiple Analog Outputs: Capable of supporting composite, S-video, and component video outputs.

- High-Quality Video Encoding: Offers 10-bit resolution encoding for high-quality video output.

- Low Power Consumption: Designed for efficient power usage, which is essential in continuous operation environments.

- Compact Package: Available in a 32-lead LFCSP package, suitable for compact designs.

Specific Application Scenario and Circuit Connection

Scenario: Encoding in a Digital Video Recorder

1. Digital Video Input: Connect the digital video signal (YCrCb or RGB format) to the data input pins (pins 9-16 and 19-26) of ADV7391BCPZ.

2. Power Supply Connection: Attach a 3.3V power supply to pin 32 for digital operation and 1.8V to pin 17 for analog circuits.

3. Analog Video Output Configuration: Configure pins 4 (CVBS), 5 (Y), and 6 (C) for composite, S-video, or component outputs.

4. Grounding for Stability: Connect pins 1, 18, and 31 to a stable ground to minimize noise and ensure system stability.

5. Circuit Design for Signal Integrity: Design the circuit layout to minimize noise and distortion, ensuring high-quality video output.

Design Considerations

1. Optimizing Video Output Quality: Utilize the 10-bit video encoding capability of ADV7391BCPZ to maintain high-quality analog video output.

2. Stable Power Supply Management: Ensure stable power supplies for both the digital and analog sections to maintain consistent performance.

3. Effective Noise Reduction: Focus on circuit layout and grounding to minimize noise and signal interference.

4. Thermal Management Strategies: Implement cooling methods, especially important in high-power or continuous operation environments.

Integrating ADV7391BCPZ into circuit designs requires detailed attention to the specific needs of the application, the chip's features, ensuring accurate pin connections, and optimizing the circuit layout. Key factors include managing video quality, power stability, noise reduction, and thermal management for a successful implementation in digital video recording systems or broadcast equipment.

ADV7391BCPZ information

ADV7391BCPZ Specifications

Package/Case:
32-VFQFN Exposed Pad, CSP
Packaging:
Bulk,Tray
Series:
-
ProductStatus:
Active
Type:
Video Encoder
Applications:
Set-Top Boxes, Video Players, Displays
Voltage-SupplyAnalog:
2.6V ~ 3.46V
Voltage-SupplyDigital:
1.71V ~ 1.89V
MountingType:
Surface Mount
