Analog Devices Inc. ADUM6411BRSZ-RL7

Part No.:: ADUM6411BRSZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 24-SSOP (0.209, 5.30mm Width)

Datasheet:: ADUM6411BRSZ-RL7.pdf

Description:: DGTL ISO 3750VRMS 4CH GP 24SSOP

In Stock:: 2489

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM6411BRSZ-RL7 Specifications

Packaging:
Tape & Reel (TR)
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
Yes
NumberofChannels:
4
Inputs-Side1/Side2:
3/1
ChannelType:
Unidirectional
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
75kV/µs
DataRate:
150Mbps
PropagationDelaytpLH/tpHL(Max):
13ns, 13ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM6411BRSZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM6411BRSZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM6411BRSZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM6411BRSZ-RL7 information

Views：

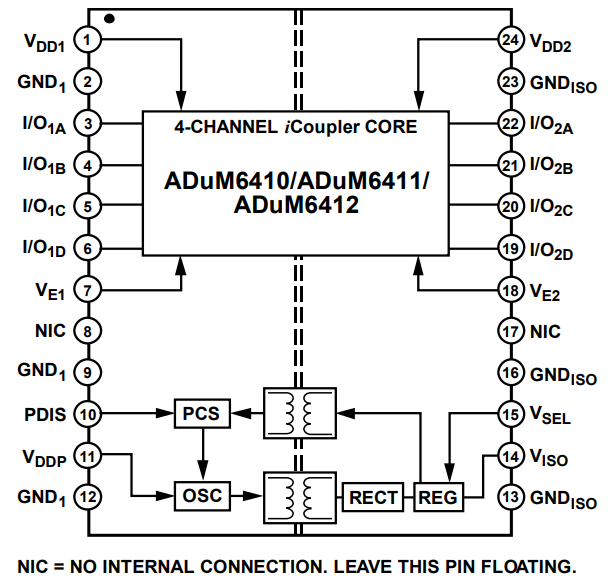

ADUM6411BRSZ-RL7 Typical application Circuitry

The ADUM6411BRSZ-RL7 is a specialized digital isolator with four isolated data channels and an isolated DC-to-DC converter for power. This chip provides both power and data isolation, which is critical in sensitive applications.

Applications of ADUM6411BRSZ-RL7

- Industrial Automation

- Medical Devices

- Automotive Safety Systems

- Data Acquisition Systems

ADUM6411BRSZ-RL7 Key Features

- Four isolated data channels

- Integrated isolated power supply

- High isolation voltage, typically around 5 KV rms

- Fast data rates, often up to 25 Mbps

Application Example: ADUM6411BRSZ-RL7 in Industrial Automation

Required Components:

- ADUM6411BRSZ-RL7 chip

- PLC (Programmable Logic Controller)

- Industrial Sensors

- Power Source

Detailed Connection Guide:

1.Supplying Power to the Chip

- VDD1 (Pin 1): Attach this pin to your main 3.3V or 5V power rail.

- GND1 (Pin 16): Connect this pin to your main ground.

2.Isolated Data Channels

- IN1, IN2, IN3, IN4 (Pins 2, 3, 4, 5): Link these pins to your PLC output ports responsible for sending data.

- OUT1, OUT2, OUT3, OUT4 (Pins 10, 11, 12, 13): These pins should be connected to your industrial sensors.

3.Isolated DC-to-DC Converter

- VISO (Pin 8): Supplies isolated voltage and should be connected to your isolated subsystem's power rail.

- GNDiso (Pin 15): Should be linked to your isolated subsystem's ground.

4.Decoupling and Bypassing

- A decoupling capacitor should be placed near VDD1 and VISO for improved power stability.

Key Design Concerns:

1.Isolation Standards

- Ensure that ADUM6411BRSZ-RL7's isolation level is compliant with industrial safety standards.

2.Power Integrity

- The isolated and non-isolated sections powered by ADUM6411BRSZ-RL7 should have stable power sources to avoid data corruption or erratic behavior.

3.Signal Routing

- Short and direct connections are recommended for all data lines to preserve signal integrity.

4.Thermal Management

- Take care of thermal issues, especially in industrial settings where temperature variations can be extreme.

By incorporating ADUM6411BRSZ-RL7 in an industrial automation setup, one can attain both power and data isolation, significantly enhancing the system's reliability and safety. Each design aspect should be carefully considered to exploit the chip's features to the fullest.
