Analog Devices Inc. ADUM5411BRSZ-RL7

Part No.:: ADUM5411BRSZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 24-SSOP (0.209, 5.30mm Width)

Datasheet:: ADUM5411BRSZ-RL7.pdf

Description:: DGTL ISO 2500VRMS 4CH GP 24SSOP

In Stock:: 3822

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM5411BRSZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
Yes
NumberofChannels:
4
Inputs-Side1/Side2:
3/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
75kV/µs
DataRate:
150Mbps
PropagationDelaytpLH/tpHL(Max):
13ns, 13ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM5411BRSZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM5411BRSZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM5411BRSZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM5411BRSZ-RL7 information

Views：

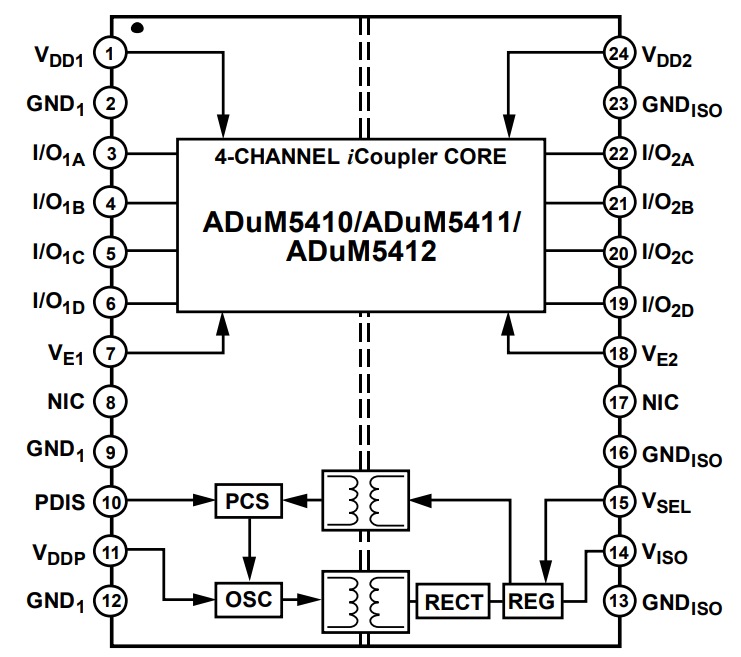

ADUM5411BRSZ-RL7 Typical application Circuitry

The ADUM5411BRSZ-RL7 is a quad-channel digital isolator chip with integrated isolated power converters. This chip excels at providing both data and power isolation in a compact package.

Application Scenarios for ADUM5411BRSZ-RL7

- Test and Measurement Equipment

- Medical Devices

- Data Acquisition Systems

- Process Control

Features of ADUM5411BRSZ-RL7

- Quad-Channel Isolation

- Isolation Voltage: Up to 5 kV rms

- Data Rates: Up to 25 Mbps

- Low Power Consumption

Application Context: Using ADUM5411BRSZ-RL7 in Medical Devices

Required Components:

1. ADUM5411BRSZ-RL7 Digital Isolator

2. Microcontroller Unit (MCU)

3. Biomedical Sensors

4. Power Supply Unit

Pin-to-Pin Detailed Connections:

Supply Voltage for the Chip

- Pin 1 (VDD1): Connect this to the +3.3V or +5V main power supply rail.

- Pin 16 (GND1): Ground this pin to the system ground.

Data Transmission Channels

- Pins 2, 3, 4, 5 (IN1, IN2, IN3, IN4): Connect these to respective GPIO pins on the MCU that will send the data.

- Pins 10, 11, 12, 13 (OUT1, OUT2, OUT3, OUT4): These will output isolated data; connect them to another MCU or sensor interface in the isolated system.

Isolated Power Converter

- Pin 8 (VISO): This pin provides the isolated power; connect this to the power supply rail of the isolated circuit.

- Pin 15 (GNDiso): Connect this pin to the ground of the isolated system.

Bypass and Decoupling

- Place decoupling capacitors close to VDD1 and VISO to improve power integrity.

Design Considerations:

Power Stability

- Ensure that the power supplies for both sides of the ADUM5411BRSZ-RL7 are stable and within the chip's specifications.

Signal Integrity

- Keep the data lines as short as possible and away from high-frequency components to prevent signal degradation.

Isolation Standards

- Verify that the isolation level of ADUM5411BRSZ-RL7 satisfies the safety regulations of medical devices.

Thermal Management

- Since medical devices are sensitive applications, it's crucial to consider thermal management for ADUM5411BRSZ-RL7.

By integrating ADUM5411BRSZ-RL7 into a medical device, one can achieve robust data and power isolation, thus enhancing the system's safety and performance. Proper design considerations are essential for optimal functionality.
