Name: ADUM5411BRSZ
Brand: Analog Devices Inc.
SKU: ADUM5411BRSZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADUM5411BRSZ

Part No.:: ADUM5411BRSZ

Manufacturer:: Analog Devices Inc.

Package:: 24-SSOP (0.209, 5.30mm Width)

Datasheet:: ADUM5411BRSZ.pdf

Description:: DGTL ISO 2500VRMS 4CH GP 24SSOP

In Stock:: 3572

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM5411BRSZ Specifications

Packaging:
Tube
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
Yes
NumberofChannels:
4
Inputs-Side1/Side2:
3/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
75kV/µs
DataRate:
150Mbps
PropagationDelaytpLH/tpHL(Max):
13ns, 13ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM5411BRSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM5411BRSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM5411BRSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM5411BRSZ information

Views：

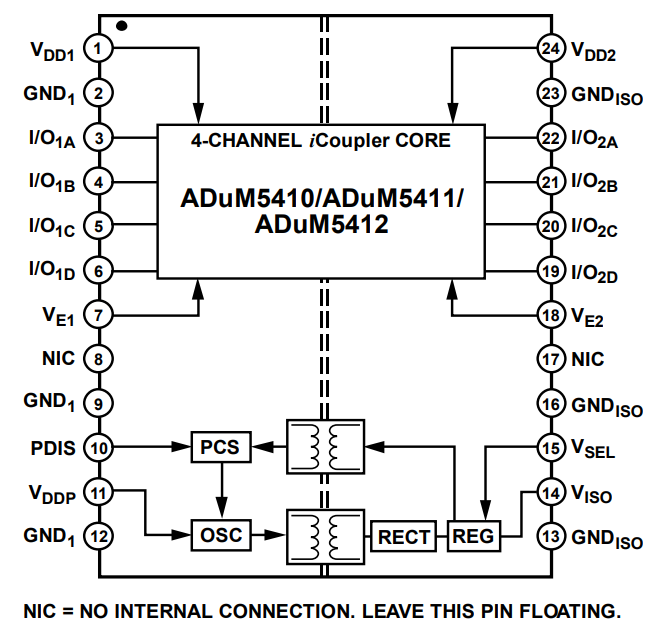

ADUM5411BRSZ Typical application Circuitry

The ADuM5411BRSZ is a member of Analog Devices' iCoupler family and is a quad-channel digital isolator with integrated isoPower, a dc-to-dc converter. Here is a simplified application circuit description:

1. Power Supply: The VDD1 pin is for the non-isolated side power supply, and the VISO pin is for the isolated side. Connect them to the relevant power sources. The ADuM5411BRSZ can handle an input power supply of 3.0V to 5.5V. A bypass capacitor of 0.1µF should be connected between VDD1 and GND1, and a decoupling capacitor of 10µF in parallel with a 0.1µF capacitor should be connected between VISO and GNDiso.
2. Ground Connections: The ADuM5411BRSZ GND1 and GNDiso pins should be connected to the non-isolated and isolated ground, respectively.
3. Data Channels: The ADuM5411BRSZ has four data channels. On the input side, the data pins are A1, A2, B3, and B4. On the output side, the corresponding data pins are B1, B2, A3, and A4. These should be connected to the appropriate data sources and destinations.
4. isoPower: The ADuM5411BRSZ device features an integrated isolated DC-to-DC converter. This is enabled by connecting the VIN and VOUT pins. It provides up to 150mW of regulated, isolated power at 5V from a 5V input or 3.3V from a 3.3V input.
5. Unused Pins: Any unused input pins should be tied to a defined logic voltage level (either GND1 or VDD1) to prevent them from floating, as floating pins may increase power consumption or cause unreliable operation.
6. Viso Capacitor: A capacitor is typically connected between the VISO pin and GNDiso to help with power regulation on the isolated side. The datasheet recommends a 10µF capacitor in parallel with a 0.1µF bypass capacitor for this purpose.
Remember, this is a simplified overview. Your actual implementation might vary based on the specific use case and design requirements. For comprehensive information and recommendations, always consult the device's datasheet and design manual from Analog Devices.
