Analog Devices Inc. ADUM5241ARZ-RL7

Part No.:: ADUM5241ARZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ADUM5241ARZ-RL7.pdf

Description:: DGTL ISO 2500VRMS 2CH GP 8SOIC

In Stock:: 3497

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM5241ARZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
IsoPower®, iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
Yes
NumberofChannels:
2
Inputs-Side1/Side2:
1/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
1Mbps
PropagationDelaytpLH/tpHL(Max):
70ns, 70ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
2.7V ~ 4.0V, 4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM5241ARZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM5241ARZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM5241ARZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM5241ARZ-RL7 information

Views：

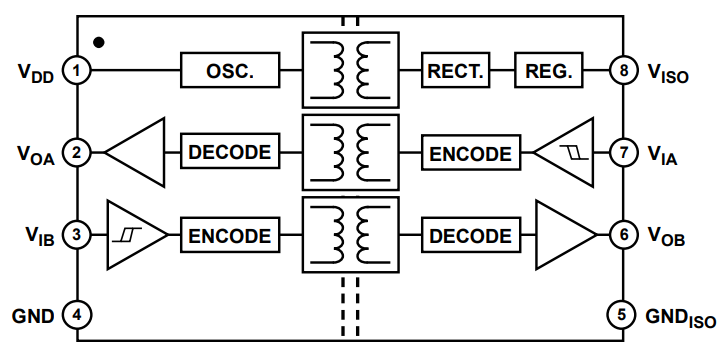

ADUM5241ARZ-RL7 Typical application Circuitry

ADUM5241ARZ-RL7

The ADUM5241ARZ-RL7 is a pivotal component of the ADuM series, ingeniously developed by Analog Devices. This series stands at the forefront of digital isolation technology, utilizing iCoupler® technology to provide superior electrical isolation capabilities. The ADUM5241ARZ-RL7 distinguishes itself by offering dual-channel isolation with an integrated, isolated DC-DC converter. This unique feature set is designed to streamline the development of electronic systems that require not only signal isolation but also isolated power delivery, making it particularly suited for applications in industrial controls, isolated sensor interfaces, and medical devices where safety and reliability are critical.

1. Power Supply Inputs (VDD1, VDD2): The ADUM5241ARZ-RL7 is energized by two separate supply voltages, VDD1 for the primary side and VDD2 for the secondary side, typically ranging from 2.7V to 5.5V. Decoupling capacitors should be strategically placed near these pins to ensure a stable and noise-free power supply, which is crucial for the reliable operation of both the signal isolation and the DC-DC converter.

2. Ground Connections (GND1, GND2): With distinct ground pins for the input (GND1) and output (GND2) sides, the ADUM5241ARZ-RL7 emphasizes the importance of maintaining separate ground references for each isolated domain. This separation is vital for minimizing noise transfer and ensuring the integrity of the isolation barrier.

3. Input Pins (IN1, IN2): The device is equipped with two input pins, IN1 and IN2, intended for receiving digital signals from the non-isolated side of the system. These inputs are designed to be compatible with common logic levels, facilitating easy integration with a broad array of digital sources.

4. Output Pins (OUT1, OUT2): On the isolated side, the ADUM5241ARZ-RL7 provides two output pins, OUT1 and OUT2, which reproduce the input signals while maintaining electrical isolation. This feature ensures that the signal integrity is preserved across the isolation barrier, enabling safe and accurate communication between isolated system domains.

5. Isolated DC-DC Converter: A hallmark of the ADUM5241ARZ-RL7 is its integrated DC-DC converter, which delivers isolated power to the secondary side. This converter is a critical component for applications requiring an isolated power supply, significantly simplifying system design by eliminating the need for external power isolation methods.

6. Viso and GNDiso Pins: The DC-DC converter functionality is complemented by the Viso and GNDiso pins, which provide the output voltage and ground reference, respectively, for the isolated power domain. These pins are essential for the operation of the isolated DC-DC converter, ensuring that the isolated circuits have access to a stable and regulated power source.

7. Design and Layout Recommendations: Incorporating the ADUM5241ARZ-RL7 into a circuit requires meticulous attention to the layout to optimize the performance of the isolation and the DC-DC converter. Recommendations include careful placement of decoupling capacitors, maintaining adequate physical separation between the input and output domains to enhance isolation effectiveness, and adhering to best practices for PCB design to manage noise and ensure signal integrity.

The ADUM5241ARZ-RL7 is a testament to Analog Devices' leadership in isolation technology, offering engineers a sophisticated solution for achieving both signal and power isolation in a single, compact package. This device streamlines the design of complex systems where safety, reliability, and efficiency are paramount, underlining the innovative spirit of the ADuM series.
