Analog Devices Inc. ADUM3201ARZ

Part No.:: ADUM3201ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: DGTL ISO 2500VRMS 2CH GP 8SOIC

In Stock:: 3774

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM3201ARZ Specifications

Packaging:
Bulk,Tube
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
2
Inputs-Side1/Side2:
1/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
1Mbps
PropagationDelaytpLH/tpHL(Max):
150ns, 150ns
PulseWidthDistortion(Max):
40ns
Rise/FallTime(Typ):
10ns, 10ns
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM3201ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM3201ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM3201ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM3201ARZ information

Views：

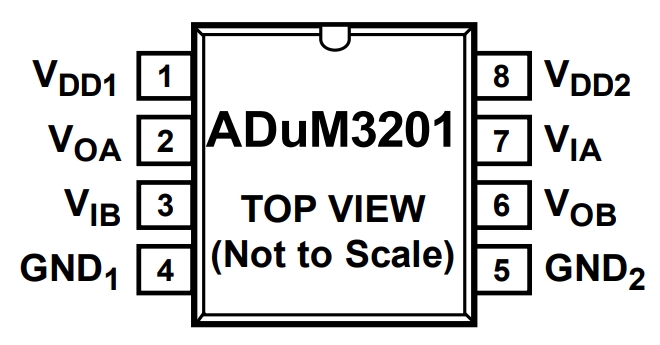

ADUM3201ARZ Typical application Circuitry

ADUM3201ARZ

A dual-channel digital isolator chip called ADUM3201ARZ is intended to offer electrical isolation between circuits. It's commonly used in applications where signal integrity and isolation from electrical noise are crucial.

Function and Application Scenarios

1. Signal Isolation in Industrial Systems: ADUM3201ARZ is ideal for isolating digital signals in industrial environments where electronic noise can interfere with signal integrity.

2. Data Communication: It's also used in data communication systems to isolate signal lines, thus protecting the data from noise and surges.

Parameter Features

- Dual-Channel Isolation: Offers two independent isolation channels.

- High Isolation Voltage: Capable of up to 2.5kV RMS, providing effective electrical isolation.

- Data Rate: Suitable for high-speed data applications, it supports up to 25Mbps.

- Compact Design: The SOIC-8 package is ideal for space-constrained applications.

Specific Application Scenario and Circuit Connection

Scenario: Industrial Data Communication

1. Input Signal Connection: Connect the data input signals to pins 1 and 2 of ADUM3201ARZ.

2. Grounding for Noise Reduction: Attach pin 3 to a stable ground to minimize interference.

3. Isolated Output Signals: Retrieve isolated signals from pins 5 and 6, which can then be used for further processing or communication.

4. Power Supply Connectivity: Give pins 7 and 8 a 5V power supply.

5. Circuit Layout Considerations: Plan the layout to minimize crosstalk and maintain signal integrity, given the high-speed nature of the chip.

Design Considerations

1. Optimizing Isolation Performance: Utilize the high isolation voltage of ADUM3201ARZ to protect sensitive circuits from electrical disturbances.

2. Managing High-Speed Data: Ensure the circuit can accommodate the 25Mbps data rate capability of ADUM3201ARZ.

3. Stable Power Delivery: For optimum performance, supply a steady and reliable power source.

4. Thermal Management: Implement heat dissipation strategies, considering the power and speed characteristics of the chip.

Incorporating ADUM3201ARZ into circuit designs requires a detailed understanding of the application's needs, the chip's features, and ensuring accurate pin connections and circuit layout. Key considerations include power stability, data rate handling, effective isolation, and thermal management for a successful and reliable digital signal isolation implementation.
