Analog Devices Inc. ADUM140E0BRQZ-RL7

Part No.:: ADUM140E0BRQZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 16-SSOP (0.154, 3.90mm Width)

Datasheet:: ADUM140E0BRQZ-RL7.pdf

Description:: DGTL ISO 3000VRMS 4CH GP 16QSOP

In Stock:: 3065

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM140E0BRQZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
4
Inputs-Side1/Side2:
4/0
ChannelType:
Unidirectional
Voltage-Isolation:
3000Vrms
CommonModeTransientImmunity(Min):
75kV/µs
DataRate:
150Mbps
PropagationDelaytpLH/tpHL(Max):
13ns, 13ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ADUM140E0BRQZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM140E0BRQZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM140E0BRQZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM140E0BRQZ-RL7 information

Views：

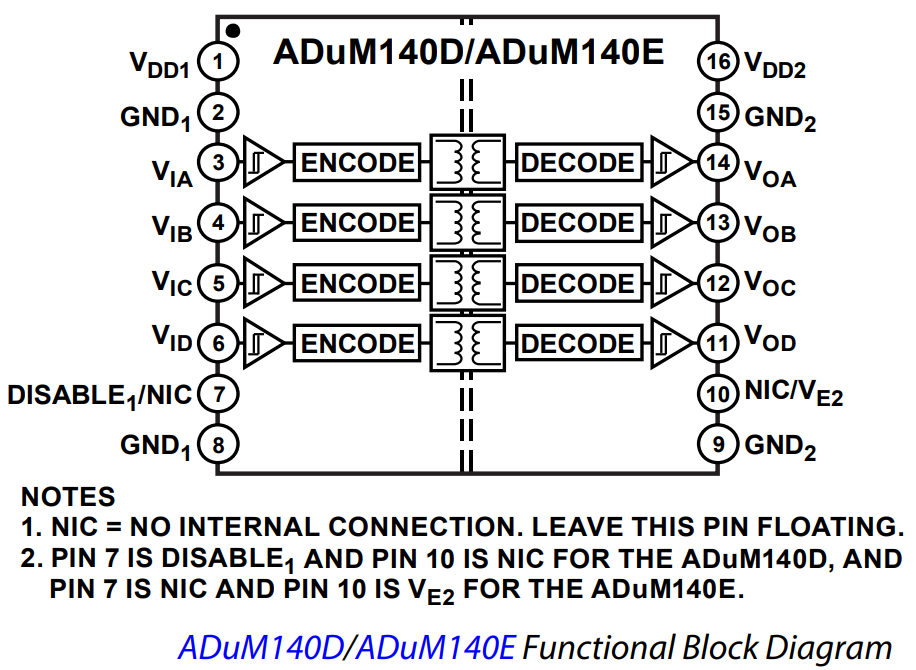

ADUM140E0BRQZ-RL7 Typical application Circuitry

The ADUM140E0BRQZ-RL7 from Analog Devices is a quad-channel digital isolator, which plays a vital role in maintaining the integrity of digital signals, reducing noise, and offering protection against electrical surges in various applications. Here are comprehensive instructions for applying the ADUM140E0BRQZ-RL7 in a circuit:

1. source Voltage: Your power source should be connected to the VDD1 and VDD2 pins. The ADUM140E0BRQZ-RL7 can operate within a supply voltage range from 2.7V to 5.5V.
2. Ground Connections: The GND1 and GND2 pins should be connected to the ground of your system. Grounding is critical for the isolator's operation and for the overall safety of your circuit.
3. Channel Configuration: The ADUM140E0BRQZ-RL7 comes with four channels. The inputs (represented as INx, with x standing for the channel number from 1 to 4) should be connected to the signals you wish to isolate. On the other side, the outputs (expressed as OUTx, where x is the channel number from 1 to 4) should be connected to the components that need to receive these isolated signals.
4. Capacitor Placement: It is generally recommended to place a decoupling capacitor close to the VDD and GND pins. This helps to filter out any high-frequency noise from the power supply. Typical value of the decoupling capacitors used is 0.1 µF.
5. Input and Output Arrangement: As the ADUM140E0BRQZ-RL7 is a unidirectional device, careful attention must be given to correctly connect the inputs and outputs. It's also good practice to maintain unused inputs at a defined logic voltage level.
Remember, the ADUM140E0BRQZ-RL7 isolator's correct operation is key to ensuring the safety and reliability of your application circuit. Always refer to the device's datasheet for the most accurate information and consult with a professional engineer if you encounter any uncertainties regarding your circuit design.
