lmages are for reference only See Product Specifications

Analog Devices Inc. ADUM1200CRZ-RL7

Part No.:: ADUM1200CRZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: DGTL ISO 2500VRMS 2CH GP 8SOIC

In Stock:: 2497

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADUM1200CRZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
General Purpose
IsolatedPower:
No
NumberofChannels:
2
Inputs-Side1/Side2:
2/0
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
25Mbps
PropagationDelaytpLH/tpHL(Max):
45ns, 45ns
PulseWidthDistortion(Max):
3ns
Rise/FallTime(Typ):
2.5ns, 2.5ns
Voltage-Supply:
2.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADUM1200CRZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADUM1200CRZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADUM1200CRZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADUM1200CRZ-RL7 information

Views：

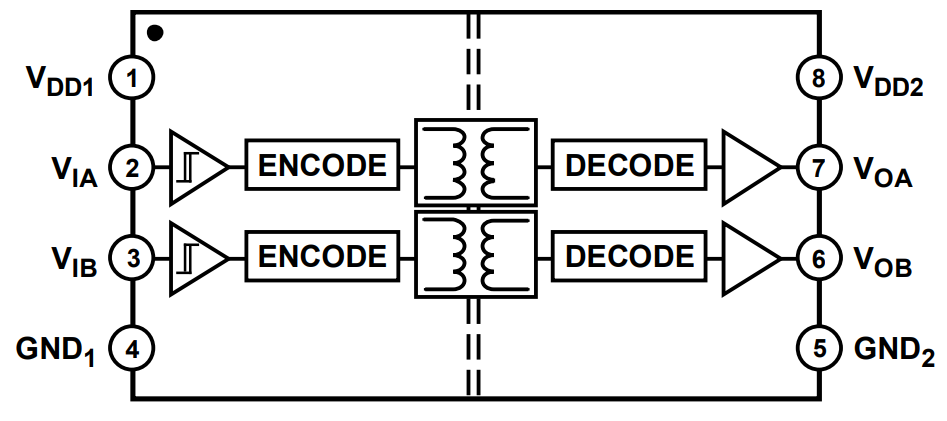

ADUM1200CRZ-RL7 Typical application Circuitry

ADUM1200CRZ-RL7

The ADUM1200CRZ-RL7 is a model within the ADuM1200 series of dual-channel digital isolators from Analog Devices, featuring their innovative iCoupler® technology. This series is engineered to provide effective galvanic isolation for digital signals, ensuring enhanced safety and signal integrity in various applications, including industrial controls, data communication systems, and medical equipment. The "RL7" designation indicates that this version is provided on a 7-inch diameter reel, suitable for automated assembly processes, facilitating efficient manufacturing and integration.

1. Power Supply Inputs (VDD1, GND1 for Input Side; VDD2, GND2 for Output Side): The ADUM1200CRZ-RL7 requires two independent power supplies: one for the input side (VDD1 and GND1) and another for the isolated output side (VDD2 and GND2). Each side typically operates within a 3.0V to 5.5V range. Stable power supplies are crucial, with decoupling capacitors recommended near the VDD and GND pins to minimize noise and ensure reliable operation.

2. Input Channels (IN1, IN2): The device features two input channels, IN1 and IN2, on the input side. These channels accept digital signals, compatible with TTL or CMOS levels, which are to be isolated and transmitted to the output side. Clean and noise-free input signals are essential for accurate and reliable isolation.

3. Isolated Output Channels (OUT1, OUT2): On the output side, the ADUM1200CRZ-RL7 provides two isolated output channels, OUT1 and OUT2, corresponding to the two input channels. These outputs deliver the isolated digital signals, maintaining the integrity of the data across the isolation barrier.

4. PCB Layout Guidelines: Designing the PCB layout requires careful attention to maintain the specified isolation between the input and output sides. Adequate clearance and creepage distances must be observed to comply with safety standards. Minimizing parasitic capacitance between input and output sides is also crucial for optimal signal integrity and isolation performance.

5. Thermal Management Considerations: Although the ADUM1200CRZ-RL7 is designed for low-power operation, in applications subject to high ambient temperatures or prolonged high data rates, appropriate thermal management strategies may be necessary to ensure device reliability and longevity.

6. Grounding Practices: Proper grounding is essential, with separate grounds for the input side (GND1) and the output side (GND2) to maintain isolation. Ensuring that these grounds are kept separate and are well-connected to their respective circuits is key to preserving the isolation effectiveness.

7. Signal Integrity Measures: Maintaining high signal integrity involves ensuring that input signals are free from noise and distortion, and that output signals are routed away from noisy areas of the PCB. Implementing shielding and filtering strategies may be beneficial in environments with significant electrical noise.

Incorporating the ADUM1200CRZ-RL7 into a system involves meticulous planning around power supply connections, input and output signal handling, adherence to PCB design principles for isolation and signal integrity, and considerations for thermal management and grounding. By following these guidelines, the ADUM1200CRZ-RL7 can be effectively utilized in a wide array of applications that demand reliable digital signal isolation.

ADUM1200CRZ-RL7 FAQ

1. How to order ADUM1200CRZ-RL7 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that ADUM1200CRZ-RL7 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the ADUM1200CRZ-RL7. All suppliers must pass our qualification reviews before they can publish their products including ADUM1200CRZ-RL7 on icwhale.com; we pay more attention to the channels and quality of ADUM1200CRZ-RL7 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the ADUM1200CRZ-RL7 price and inventory displayed accurate?

The price and inventory of ADUM1200CRZ-RL7 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of ADUM1200CRZ-RL7?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the ADUM1200CRZ-RL7 we delivered, we will accept the replacement or return of the ADUM1200CRZ-RL7 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of ADUM1200CRZ-RL7.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
