Texas Instruments ADS1298IPAGR

Part No.:: ADS1298IPAGR

Manufacturer:: Texas Instruments

Package:: 64-TQFP

Datasheet:: ADS1298IPAGR.pdf

Description:: IC AFE 8 CHAN 24BIT 64TQFP

In Stock:: 2907

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1298IPAGR Specifications

Package/Case:
64-TQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofBits:
24
NumberofChannels:
8
Power(Watts):
14.1 mW
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
1.65V ~ 3.6V
MountingType:
Surface Mount

ADS1298IPAGR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1298IPAGR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1298IPAGR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1298IPAGR information

Views：

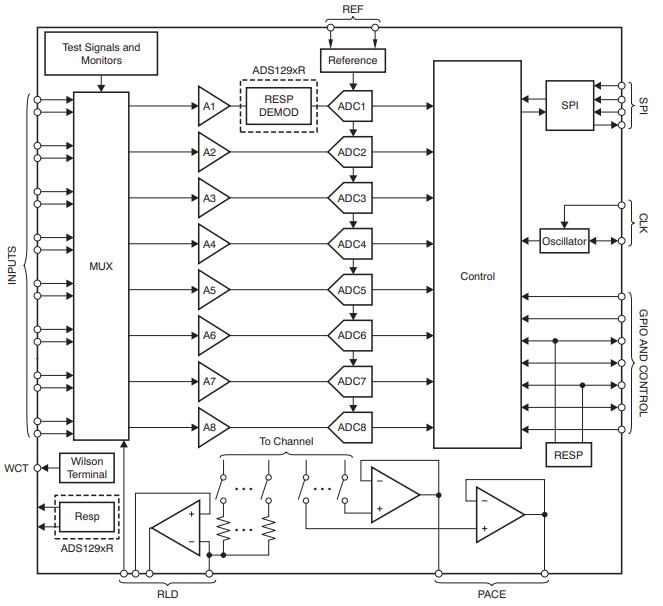

ADS1298IPAGR Typical application Circuitry

ADS1298IPAGR

The ADS1298IPAGR is a highly integrated analog front-end (AFE) with 24-bit resolution, designed for electrocardiogram (ECG) and electroencephalogram (EEG) applications. This device, manufactured by Texas Instruments, includes an array of features tailored for biopotential measurements, including eight simultaneously sampled delta-sigma analog-to-digital converters (ADCs), a programmable gain array, patient-specific functions, and built-in pace detection.

Applications of the ADS1298IPAGR:

The ADS1298IPAGR is designed for biopotential measurement applications such as:

1. ECG (Electrocardiogram): It's commonly used in medical devices to measure the heart's electrical activity.

2. EEG (Electroencephalogram): It finds its application in measuring the brain's electrical activity in neurology equipment.

3. EMG (Electromyography): It can also be used in devices to measure muscle response or electrical activity.

Key Features of the ADS1298IPAGR:

1. Eight Differential Inputs: The ADS1298IPAGR features eight differential inputs, making it ideal for multichannel applications.

2. On-Chip Functions: The device incorporates several on-chip functions such as right leg drive, lead-off detection, and pace detection which make it a comprehensive solution for biopotential measurements.

3. High Resolution: The 24-bit resolution of the ADS1298IPAGR ensures precise biopotential readings.

4. Programmable Gain: The ADS1298IPAGR offers programmable gain from 1 to 12, allowing for wide dynamic range measurements.

Example Circuit Connection for an ECG Application:

In an ECG application, the ADS1298IPAGR can be connected as follows:

1. Power Supply: The AVDD and DVDD pins (Pins 16, 32) should be connected to a stable 3.3V power supply. The AVSS and DVSS pins (Pins 15, 31) are connected to the system ground.

2. ECG Electrode Inputs: The differential ECG electrode inputs are connected to the IN1P-IN8P and IN1N-IN8N pins (Pins 1-8, 9-11, 21-28).

3. Right Leg Drive: The RLDOUT pin (Pin 19) is connected to the body (right leg) to reduce common-mode interference. For feedback, utilize Pin 20 on the RLDFB connector.

4. SPI Interface: The SPI interface includes CS (Pin 17), DIN (Pin 14), DOUT (Pin 13), and SCLK (Pin 18). These pins need to be connected to the microcontroller's corresponding SPI pins. Considerations for Designing the Circuit:

When designing a circuit with the ADS1298IPAGR, certain considerations should be taken into account:

1. Noise Reduction: Care should be taken to reduce noise in the system, as this can greatly affect the accuracy of biopotential measurements. This can involve careful PCB layout and using shielded cables for the ECG leads.

2. Electrode Placement: The placement of ECG electrodes on the body can significantly affect the readings. To achieve proper data collection, electrode placement should follow accepted medical practices.

3. Power Supply Stability: The stability of the power supply can influence the accuracy of readings. The power supply should be well-regulated and free from high frequency noise.

4. Safety Considerations: Since the ADS1298IPAGR is used in medical applications, safety considerations such as electrical isolation and protection from defibrillator transients should be considered.

In conclusion, the ADS1298IPAGR is a comprehensive solution for biopotential measurement applications. It offers a range of on-chip features that simplifies design and ensures accurate data acquisition. However, careful design considerations need to be made to ensure safety, reduce noise, and guarantee accurate and reliable data.
