Analog Devices Inc. AD7730BRUZ

Part No.:: AD7730BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7730BRUZ.pdf

Description:: IC AFE 1 CHAN 24BIT 24TSSOP

In Stock:: 3218

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7730BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7730BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7730BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

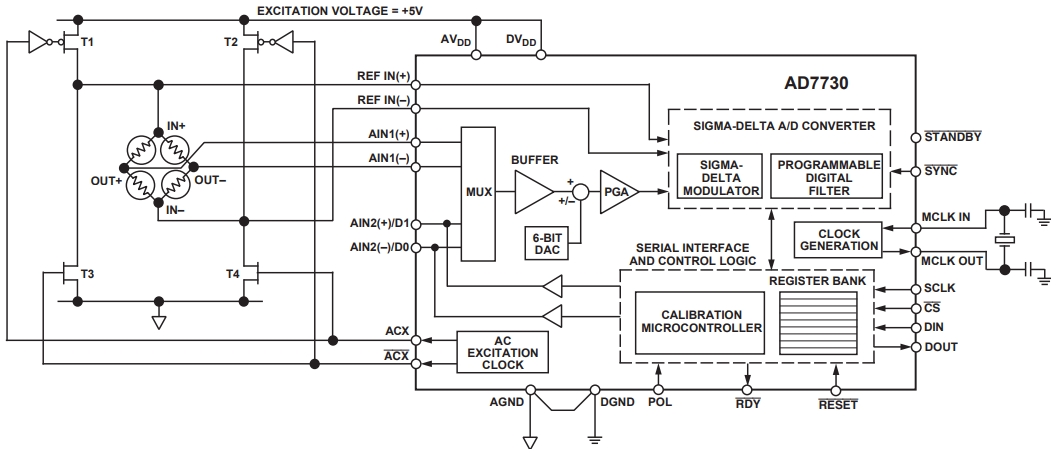

AD7730BRUZ Typical application Circuitry

AD7730BRUZ

The AD7730BRUZ is a 24-bit, high-precision, low-noise analog-to-digital converter (ADC) made especially for industrial process control and weighing scale applications. It is designed to be directly connected to a wide range of sensors, including strain gauges, load cells, and pressure sensors.

Situations of Applications:

Applications needing high-resolution and low-noise measurements, like industrial process control, pressure measurement systems, and weighing scales, frequently employ the AD7730BRUZ.

Features of Parameters:

- 24-bit resolution for measurements with great precision

- Signal conditioning using a programmable gain amplifier (PGA) and noise reduction

- using an on-chip digital filter

- Single-ended and differential input channels

- Low power usage for energy-saving functionality

Circuit Design for a Weighing Scale System:

In this application, we will design a weighing scale system using the AD7730BRUZ to interface with a load cell.

1. Load Cell Interface: Connect the load cell to the differential input channels AIN1+ and AIN1- of the AD7730BRUZ.

2. Reference Voltage: Use an external precision voltage reference (e.g., REF02) connected to the REFIN+ and REFIN- pins to provide a stable reference voltage for the ADC.

3. Clock Source: Connect an external crystal oscillator to the XTAL1 and XTAL2 pins to provide a stable clock source for the ADC.

4. SPI Communication: Interface the SPI pins (DOUT/RDY, DIN, SCLK, and CS) of the AD7730BRUZ with the corresponding SPI pins of a microcontroller for data communication.

5. Power Source: Give the AD7730BRUZ's AVDD and DVDD pins a clear, steady 5V power source.

6. Calibration and Configuration: Calibrate the load cell and configure the ADC settings (input channel, gain, filter settings, etc.) through SPI commands from the microcontroller.

Design Considerations:

- Ensure that the load cell and reference voltage sources are stable and accurate to achieve high-precision measurements.

- To reduce noise and interference in the analog signals, use appropriate designing and shielding techniques.

- Implement appropriate filtering and averaging algorithms in the microcontroller to further reduce noise and improve measurement accuracy.

In conclusion, the AD7730BRUZ ADC offers a high level of precision and flexibility for interfacing with various sensors in weighing and industrial process control applications. By following a detailed approach to circuit design and considering key factors, this ADC can be effectively integrated into a wide range of measurement systems.

AD7730BRUZ information

AD7730BRUZ Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
24
NumberofChannels:
1
Power(Watts):
125 mW
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
2.7V ~ 5.25V
MountingType:
Surface Mount
