Analog Devices Inc. ADR444BRZ-REEL7

Part No.:: ADR444BRZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC VREF SERIES 0.04% 8SOIC

In Stock:: 3716

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADR444BRZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
XFET®
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
4.096V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.04%
TemperatureCoefficient:
3ppm/°C
Noise-01Hzto10Hz:
1.8µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
4.6V ~ 18V
Current-Supply:
3.75mA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADR444BRZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADR444BRZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADR444BRZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADR444BRZ-REEL7 information

Views：

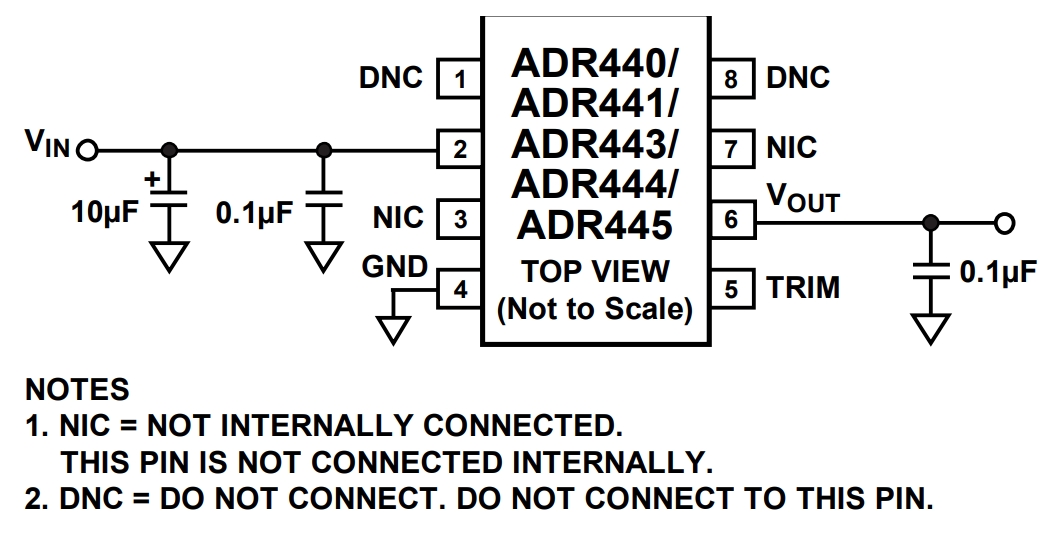

ADR444BRZ-REEL7 Typical application Circuitry

ADR444BRZ-REEL7

The ADR444BRZ-REEL7 is a precision voltage reference chip, widely used in electronic applications that require a highly stable and accurate voltage reference. This chip is integral in scenarios where precise voltage control is critical. Let's explore its functionalities, application scenarios, parameter features, and a specific circuit integration example:

Functionality of ADR444BRZ-REEL7

1. Stable Voltage Reference: The ADR444BRZ-REEL7 provides a precise and consistent voltage reference, crucial in high-accuracy applications.

2. Low Noise Output: It is designed to have minimal noise output, enhancing the performance of sensitive electronic systems.

3. Temperature Stability: Offers reliable operation across various temperature ranges.

Application Scenarios

1. High-Precision Instrumentation: In devices such as laboratory equipment and precision measurement tools where exact voltage readings are essential.

2. Data Conversion Systems: As a reference voltage in Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs), for accurate data processing.

3. Control Systems: Used in industrial and automotive control systems that rely on a stable voltage reference.

Parameter Features

1. Output Voltage: Typically provides a stable 4.096 V output.

2. High Accuracy and Stability: Ensures consistent performance under varying supply voltages and environmental conditions.

3. Wide Operating Voltage Range: Functions effectively over a broad range of input voltages.

Application Example: Use in a Data Conversion System

Let's detail the integration of ADR444BRZ-REEL7 in a data conversion system.

Circuit Integration

1. Supply Voltage Connection: Link the V_IN pin of ADR444BRZ-REEL7 to a stable and regulated power source, with a recommended range of 7 V to 18 V.

2. Reference Voltage Output: Connect the V_OUT pin of ADR444BRZ-REEL7 to the reference voltage input of essential components, like an ADC, in the system.

3. Effective Grounding: The GND pin should be properly connected to the system's ground plane for operational stability.

Design Considerations

1. Stable Power Source: Ensure the input voltage to ADR444BRZ-REEL7 is consistent to maintain output voltage accuracy.

2. Minimize Noise: Implement filtering strategies, such as using capacitors near the input and output pins, to reduce electrical noise.

3. Temperature Management: While ADR444BRZ-REEL7 is temperature resilient, maintaining a controlled thermal environment can enhance performance.

4. Thoughtful PCB Design: Optimize the PCB layout to reduce trace lengths and avoid high electromagnetic interference areas, crucial in high-precision systems.

In conclusion, the ADR444BRZ-REEL7 is a critical component in circuits where a precise and stable voltage reference is required. Its application in a data conversion system demonstrates its importance in ensuring accurate and consistent electronic measurements and controls.
