Name: ADR3425ARJZ-R7
Brand: Analog Devices Inc.
SKU: ADR3425ARJZ-R7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADR3425ARJZ-R7

Part No.:: ADR3425ARJZ-R7

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-6

Datasheet:: ADR3425ARJZ-R7.pdf

Description:: IC VREF SERIES 0.1% SOT23-6

In Stock:: 3877

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADR3425ARJZ-R7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.1%
TemperatureCoefficient:
8ppm/°C
Noise-01Hzto10Hz:
18µVp-p
Noise-10Hzto10kHz:
42µVrms
Voltage-Input:
2.7V ~ 5.5V
Current-Supply:
100µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADR3425ARJZ-R7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADR3425ARJZ-R7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADR3425ARJZ-R7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADR3425ARJZ-R7 information

Views：

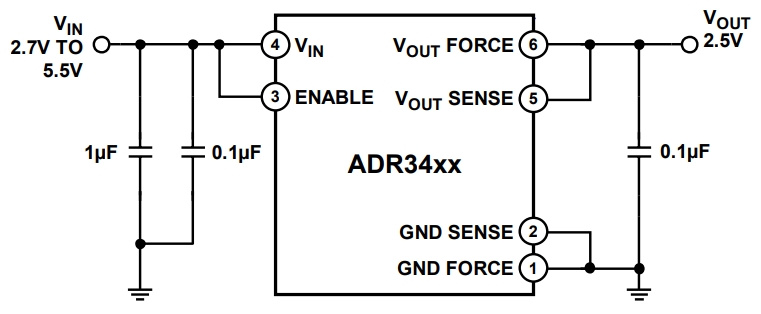

ADR3425ARJZ-R7 Typical application Circuitry

ADR3425ARJZ-R7

The ADR3425ARJZ-R7 is a voltage reference chip that is known for its precision and stability, similar to other models in the ADR34xx series. This component is critical in circuits where accurate voltage reference is essential. Let's explore its functionalities, application scenarios, parameter features, and an example of circuit integration:

Functionality of ADR3425ARJZ-R7

1. Stable Voltage Reference: The ADR3425ARJZ-R7 primarily functions as a stable reference voltage provider. It's commonly used where a precise voltage reference is necessary.

2. Low Temperature Coefficient: This feature ensures minimal fluctuation in output voltage across a range of temperatures, enhancing its reliability in various environments.

3. Low Noise Output: The chip is designed to emit minimal noise, crucial for precision electronics.

Application Scenarios

1. Precision Instrumentation: Employed in devices that require exact voltage measurements.

2. Analog-to-Digital Conversion: Acts as a reference voltage for ADCs, ensuring their accuracy.

3. Controlled Power Supplies: used to control and stabilize output voltages in power supply equipment.

Parameter Features

1. Output Voltage: Typically provides a fixed 2.5 V output.

2. Temperature Stability: Offers reliable performance under different temperature conditions.

3. High Accuracy: Maintains a precise and stable output voltage.

Application Example: ADC Circuit Integration

Consider using the ADR3425ARJZ-R7 in an ADC circuit for accurate data conversion.

Circuit Integration Details

1. Power Supply Connection:Connect the ADR3425ARJZ-R7's V_IN pin to a reliable power source. A regulated 5 V supply is generally ideal for optimal performance.

2. Reference Voltage Output: To supply a steady voltage, the ADR3425ARJZ-R7's V_OUT pin needs to be linked to the ADC's reference input.

3. Grounding Scheme: Connect the GND pin of the ADR3425ARJZ-R7 to the common ground of the circuit to ensure stability.

Design Considerations

1. Input Voltage Regulation: Ensure that the input voltage to ADR3425ARJZ-R7 is consistent to prevent output variability.

2. Decoupling Capacitors: Position capacitors near the V_IN and V_OUT pins of the ADR3425ARJZ-R7 to mitigate noise and stabilize the voltage.

3. Thermal Considerations: Manage heat effectively as temperature changes can influence the accuracy of the voltage output.

4. PCB Layout Planning: Design the PCB to minimize trace lengths and avoid proximity to high-frequency components to reduce interference.

In conclusion, the ADR3425ARJZ-R7 serves a crucial role in electronic circuits, particularly where a stable and accurate voltage reference is necessary. Its application in an ADC circuit demonstrates its importance in enhancing the precision and dependability of electronic measurements.
