Name: ADR3425ARJZ-R2
Brand: Analog Devices Inc.
SKU: ADR3425ARJZ-R2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADR3425ARJZ-R2

Part No.:: ADR3425ARJZ-R2

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-6

Datasheet:: ADR3425ARJZ-R2.pdf

Description:: IC VREF SERIES 0.1% SOT23-6

In Stock:: 2874

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADR3425ARJZ-R2 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.1%
TemperatureCoefficient:
8ppm/°C
Noise-01Hzto10Hz:
18µVp-p
Noise-10Hzto10kHz:
42µVrms
Voltage-Input:
2.7V ~ 5.5V
Current-Supply:
100µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADR3425ARJZ-R2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADR3425ARJZ-R2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADR3425ARJZ-R2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADR3425ARJZ-R2 information

Views：

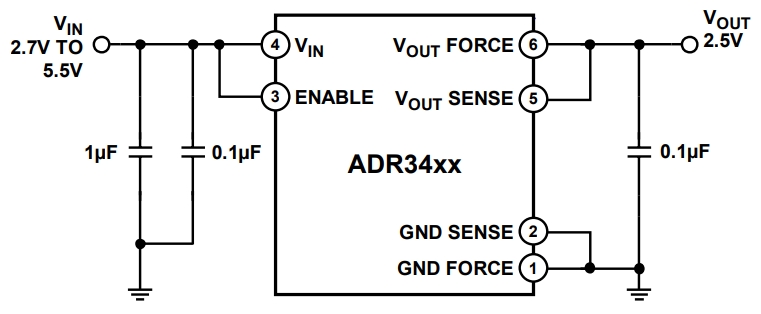

ADR3425ARJZ-R2 Typical application Circuitry

ADR3425ARJZ-R2

The ADR3425ARJZ-R2 is a voltage reference chip known for its precision and stability. Here's a detailed exploration of its functionality, applications, parameter features, and an example of how it can be integrated into a circuit:

Functionality of ADR3425ARJZ-R2

1. Precision Voltage Reference: The ADR3425ARJZ-R2 is primarily used to provide a stable and precise reference voltage, typically at 2.5 V.

2. High Stability: It maintains a consistent output voltage despite changes in supply voltage, load conditions, or temperature variations.

3. Low Noise Output: The chip is engineered to minimize output noise, making it suitable for precision applications.

Application Scenarios

1. Precision Instrumentation: In devices requiring accurate voltage measurements.

2. Analog-to-Digital Converters (ADCs): As a reference voltage to ensure accurate ADC performance.

3. Power Supply Control: To stabilize and regulate voltages in power supply units.

Parameter Features

1. Output Voltage: A fixed output of 2.5 V.

2. Temperature Stability: Provides consistent performance across various temperature ranges.

3. High Precision: Delivers accurate and stable voltage outputs.

4. Low Power: Efficient for battery-operated devices.

Application Example: Integrating ADR3425ARJZ-R2 in an ADC Circuit

For this example, we'll focus on using the ADR3425ARJZ-R2 as a reference voltage source for an ADC.

Circuit Integration

1. Supply Voltage Connection: The ADR3425ARJZ-R2's V_IN pin should be connected to a clean and stable power source. For optimal performance, a regulated 5 V supply is recommended.

2. Reference Voltage Output: Connect the V_OUT pin of ADR3425ARJZ-R2 directly to the reference voltage input of the ADC.

3. Grounding: Link the GND pin of the ADR3425ARJZ-R2 to the system's ground plane for stable operation.

Considerations in Circuit Design

1. Input Voltage Stability: The input voltage to the ADR3425ARJZ-R2 must be steady to avoid output fluctuations.

2. Bypass Capacitors: Place capacitors close to the V_IN and V_OUT pins of ADR3425ARJZ-R2 to filter noise and stabilize the voltage.

3. Heat Dissipation: Manage thermal aspects effectively since temperature variations can impact the voltage output's accuracy.

4. PCB Layout: Minimize trace lengths and maintain distance from high-frequency components to reduce interference.

In summary, the ADR3425ARJZ-R2 is a crucial component in precision electronics, especially in scenarios requiring an accurate and stable voltage reference. Its integration into an ADC circuit exemplifies its role in enhancing the accuracy and reliability of electronic measurements.
