Analog Devices Inc. ADR02ARZ-REEL

Part No.:: ADR02ARZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC VREF SERIES 0.1% 8SOIC

In Stock:: 2572

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADR02ARZ-REEL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
5V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.1%
TemperatureCoefficient:
10ppm/°C
Noise-01Hzto10Hz:
10µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
7V ~ 36V
Current-Supply:
1mA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADR02ARZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADR02ARZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADR02ARZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADR02ARZ-REEL information

Views：

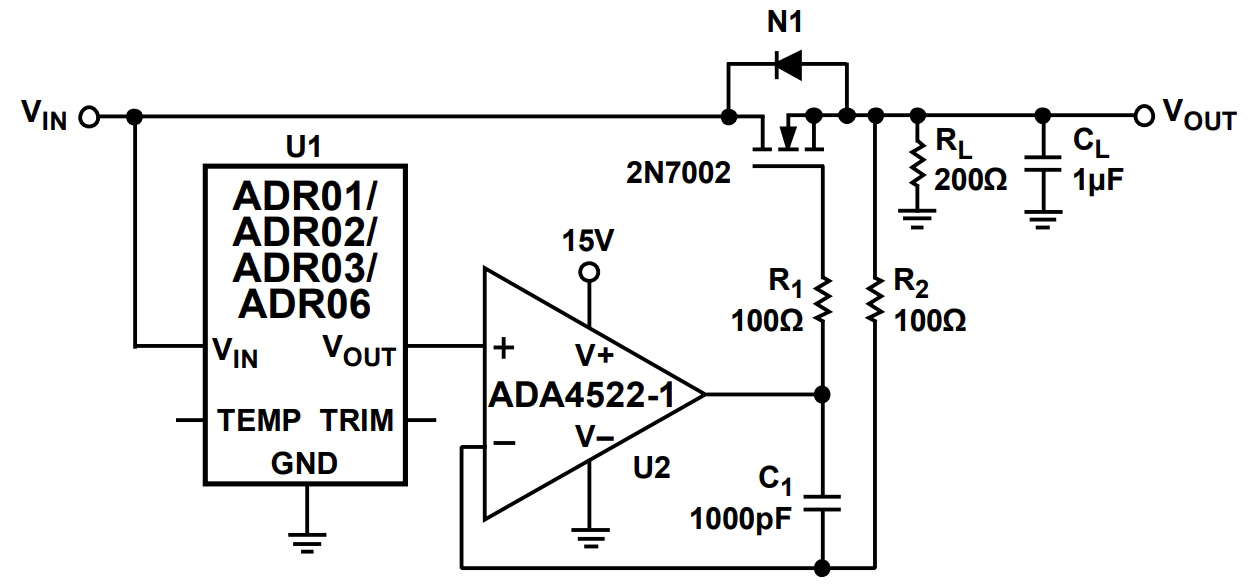

ADR02ARZ-REEL Typical application Circuitry

ADR02ARZ-REEL

The ADR02ARZ-REEL is a precision 5.0 V voltage reference chip used in various applications. Let's explore its functionalities, applications, parameter features, and delve into a specific application circuit:

Functionality of ADR02ARZ-REEL

1. Precision Voltage Reference: The primary function of the ADR02ARZ-REEL is to provide a stable 5.0 V output, which remains consistent despite variations in input voltage, temperature, or load conditions.

2. Low Temperature Coefficient: It offers excellent temperature stability, ensuring the output voltage remains consistent across different temperatures.

3. Low Noise: The chip is designed to produce minimal noise, making it suitable for sensitive applications like precision measurement instruments.

Application Scenarios

1. Data Acquisition Systems: used to give analog-to-digital converters a steady reference voltage.

2. Medical Equipment: Ensures accurate readings in sensitive medical devices.

3. Industrial Automation: Provides stable voltage for control systems in industrial environments.

Parameter Features

1. Output Voltage: Fixed 5.0 V.

2. Low Temperature Drift: Ensures stability over a wide temperature range.

3. High Accuracy: Maintains a precise output voltage.

4. Low Power Consumption: Ideal for gadgets that run on batteries.

Specific Application: Using ADR02ARZ-REEL in a Data Acquisition System

Let's focus on integrating the ADR02ARZ-REEL in a data acquisition system to provide a reference voltage for an analog-to-digital converter (ADC).

Circuit Connection

1. Power Supply Connection: Connect the V_IN pin of the ADR02ARZ-REEL to a stable power source (e.g., a regulated 10 V supply).

2. Output Reference Voltage: Attach the V_OUT pin to the ADC's reference voltage input.

3. Grounding: Ensure a solid ground connection from the GND pin of ADR02ARZ-REEL to the system ground.

Key Points to Consider in Circuit Design

1. Stable Power Source: Ensure the input power source to ADR02ARZ-REEL is stable and clean to avoid introducing noise.

2. Decoupling Capacitors: Use decoupling capacitors near the V_IN and V_OUT pins to filter out noise and stabilize the voltage.

3. Thermal Management: Ensure proper heat dissipation as temperature variations can affect the output voltage accuracy.

4. PCB Layout: Minimize trace lengths and avoid close proximity to high-frequency signals to reduce interference.

By carefully integrating the ADR02ARZ-REEL into a data acquisition system, one can achieve high accuracy and stability in voltage reference, crucial for precise data conversion.
