Analog Devices Inc. ADM2587EBRWZ-REEL7

Part No.:: ADM2587EBRWZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: ADM2587EBRWZ-REEL7.pdf

Description:: DGT ISO 2.5KV RS422/RS485 20SOIC

In Stock:: 2125

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADM2587EBRWZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADM2587EBRWZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADM2587EBRWZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

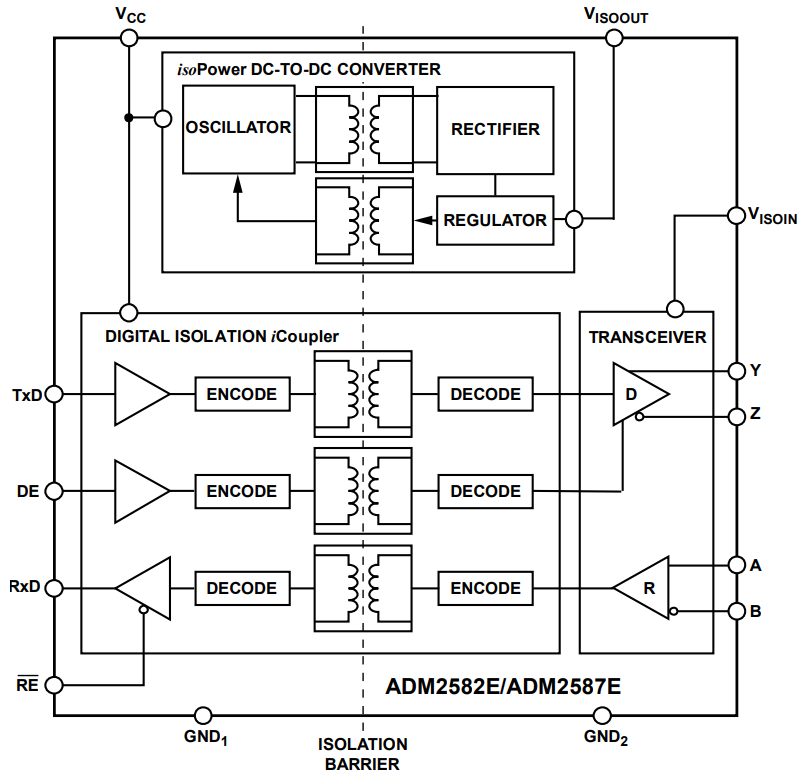

ADM2587EBRWZ-REEL7 Typical application Circuitry

ADM2587EBRWZ-REEL7

The ADM2587EBRWZ-REEL7 is part of the ADM2587E series, which is distinguished by its integrated, isolated RS-485/RS-422 transceivers, incorporating Analog Devices' iCoupler® technology. With this innovative series, four components are combined into one box: a three-channel isolator, a differential input receiver, an integrated DC-to-DC converter, and a three-state differential line driver. The "BRWZ-REEL7" suffix indicates that this device is provided on a 7-inch reel, optimized for streamlined manufacturing processes through automated pick-and-place equipment.

1. Isolated RS-485/RS-422 Interface (RO, RE, DE, DI, A, B, GND1): The ADM2587EBRWZ-REEL7 facilitates communication over RS-485/RS-422 networks. The receiver output (RO) and driver input (DI) facilitate data flow, while the receiver enable (RE) and driver enable (DE) pins manage the state of the receiver and transmitter, respectively. The differential bus pins A and B connect to the RS-485/RS-422 network. GND1 serves as the ground reference for these signal pins.

2. Integrated Isolation Barrier: The device integrates a galvanic isolation barrier between the RS-485/RS-422 bus side and the logic side, enhancing communication reliability and system safety in electrically noisy environments or where ground loop issues are a concern.

3. Power Supply and Ground (VDD1, VDD2, GND2): The ADM2587EBRWZ-REEL7 requires two power supplies: VDD1 for the logic side and VDD2 for the bus side, each typically operating at 3.3V or 5V. GND2 is the ground reference for the logic side. Ensuring clean and stable power supplies is crucial for the device's optimal performance, necessitating the use of decoupling capacitors close to the power supply pins.

4. Integrated DC-to-DC Converter: The device incorporates an integrated DC-to-DC converter to provide isolated power to the bus side. This feature simplifies the design by eliminating the need for a separate isolated power supply for the bus side.

5. Thermal Pad (Exposed Pad): The ADM2587EBRWZ-REEL7 package includes an exposed thermal pad that must be properly soldered to the PCB to ensure effective heat dissipation. For the device to continue functioning reliably and performing well under a range of operational situations, this connection is essential.

6. Circuit Implementation Considerations: When integrating the ADM2587EBRWZ-REEL7 into a circuit, careful attention must be paid to the layout to minimize signal distortion and maximize signal integrity, especially in high-speed communication applications. The placement of bypass capacitors, the routing of differential signals (A and B), and the isolation between noisy and sensitive areas are crucial factors.

7. Isolation and Safety Compliance: The ADM2587EBRWZ-REEL7's integrated isolation provides safety and robustness in industrial environments, meeting stringent regulatory standards. The design must consider the isolation voltage requirements specific to the application to ensure compliance with safety regulations.

8. Flexibility in Applications: The ADM2587EBRWZ-REEL7's integration of data communication and power isolation functionalities within a single package offers significant advantages in terms of PCB space savings and system reliability, making it an excellent choice for industrial, medical, and other applications requiring isolated data communication.

Incorporating the ADM2587EBRWZ-REEL7 into a system not only simplifies the design of isolated RS-485/RS-422 communication interfaces but also enhances the overall reliability and safety of the communication network. By adhering to best practices in circuit design, including power management, signal integrity, and thermal management, the ADM2587EBRWZ-REEL7 can be effectively utilized in a wide range of applications requiring robust, isolated data communication.

ADM2587EBRWZ-REEL7 information

ADM2587EBRWZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
IsoPower®, iCoupler®
ProductStatus:
Active
Technology:
Magnetic Coupling
Type:
RS422, RS485
IsolatedPower:
Yes
NumberofChannels:
3
Inputs-Side1/Side2:
2/1
ChannelType:
Unidirectional
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
25kV/µs
DataRate:
500kbps
PropagationDelaytpLH/tpHL(Max):
-
PulseWidthDistortion(Max):
-
Rise/FallTime(Typ):
1.1µs, 1.1µs (Max)
Voltage-Supply:
3.3V, 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
