Analog Devices Inc. ADE7758ARWZRL

Part No.:: ADE7758ARWZRL

Manufacturer:: Analog Devices Inc.

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:

Description:: IC ENERGY METERING 3PHASE 24SOIC

In Stock:: 2656

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADE7758ARWZRL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
InputImpedance:
380kOhm
MeasurementError:
0.1%
Voltage-I/OHigh:
2.4V
Voltage-I/OLow:
0.8V
Current-Supply:
8mA
Voltage-Supply:
4.75 V ~ 5.25 V
MeterType:
3 Phase
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ADE7758ARWZRL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADE7758ARWZRL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADE7758ARWZRL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADE7758ARWZRL information

Views：

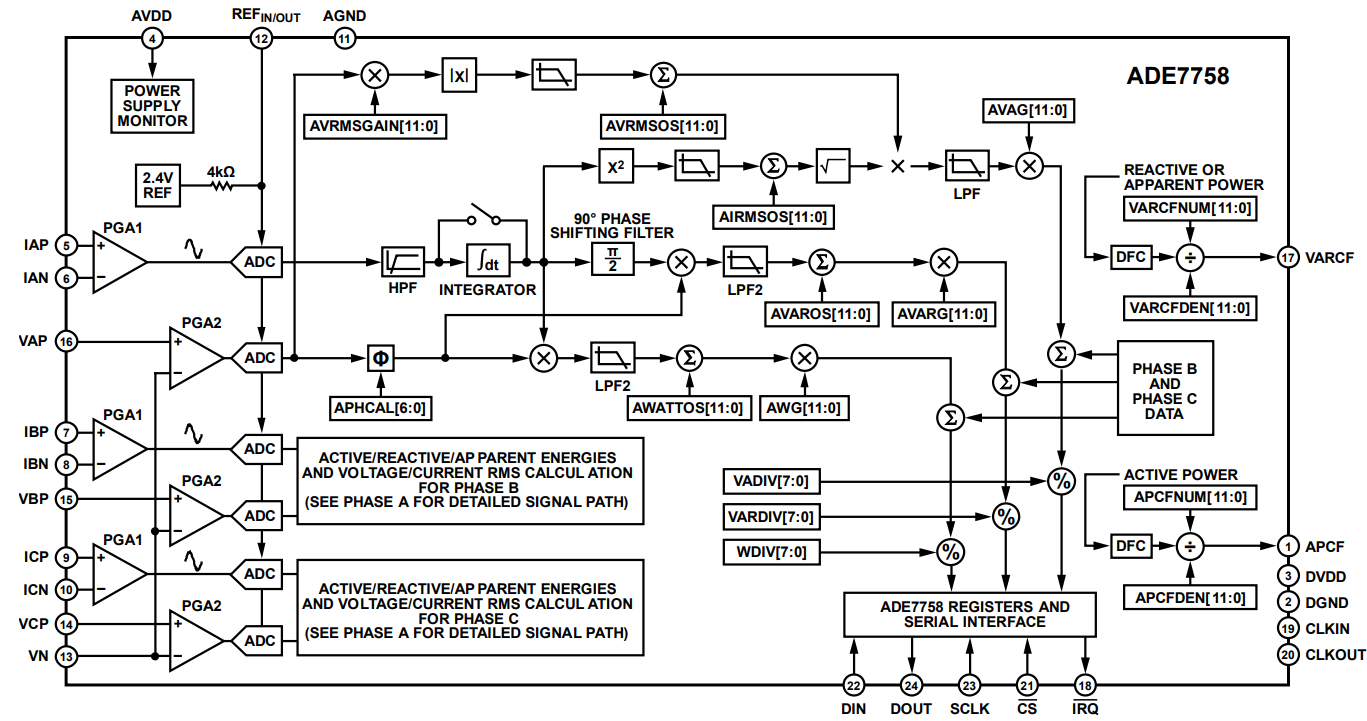

ADE7758ARWZRL Typical application Circuitry

ADE7758ARWZRL is a high-accuracy polyphase electrical energy measurement IC. It provides measurement features required for an electricity metering system. It can simultaneously measure active, reactive, and apparent power on multiple power lines.

Applicability of ADE7758ARWZRL

This chip is primarily designed for:

- Electrical energy meters

- Power quality monitoring

- Industrial power management systems

Feature Characteristics of ADE7758ARWZRL

The prominent specifications of ADE7758ARWZRL include:

- Polyphase power line measurements

- Active, reactive, and apparent power computation

- On-chip temperature sensor

- SPI communication interface

ADE7758ARWZRL in Electrical Energy Meters

Required Components

- ADE7758ARWZRL IC

- Microcontroller with SPI interface

- Voltage and current transformers

- Precision voltage reference

- Power supply components

Circuit Connection Details

Voltage and Current Inputs

Input Connections: Attach the voltage and current transformer outputs to the analog inputs of the ADE7758ARWZRL via pins VA, VB, VC (for voltage) and IA, IB, IC (for current).

SPI Interface Configuration

SPI Communication: Establish an SPI connection between the ADE7758ARWZRL and a microcontroller using the MISO, MOSI, SCLK, and CS pins.

Voltage Reference Setup

Reference Voltage: The REF pin must be connected to a stable, external voltage reference source to ensure accurate measurements.

Clock Generation

Clock Source: Pin OSCIN serves as the input for the clock source which can be provided externally.

Reset Control

Reset Configuration: The RESET pin can be driven by an external microcontroller to reset the ADE7758ARWZRL.

Design Considerations for ADE7758ARWZRL

1. Signal Noise: Make sure the input signals are clean, and noise is minimized to get accurate measurements.

2. Power Supply Quality: It's crucial to provide a stable power supply to ADE7758ARWZRL for accurate performance.

3. Calibration: The system needs to be calibrated properly for the chip to provide accurate measurements.

4. Communication Protocol: The microcontroller and ADE7758ARWZRL should be configured to match SPI settings for reliable data transfer.

5. Protection: Protection circuits should be in place to safeguard the ADE7758ARWZRL from voltage and current surges.

By taking these considerations into account, ADE7758ARWZRL can be deployed effectively in energy metering systems with excellent reliability and accuracy.
